WITH MONOCHROME DISPLAY: Switches And Their Control Function
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

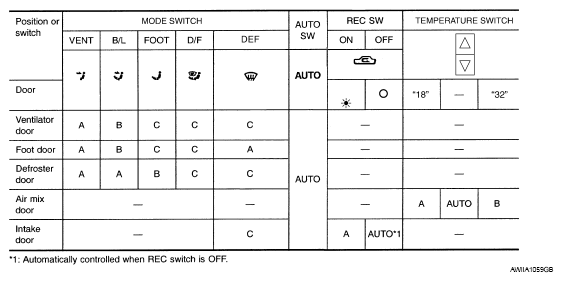

Fig 1: Automatic Air Conditioner System Switches And Control Function Diagram (With Monochrome Display)
Courtesy of NISSAN MOTOR CO., U.S.A.

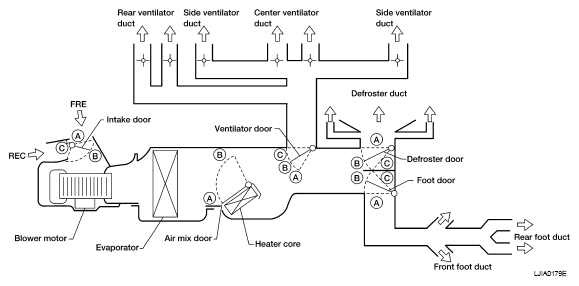

Fig 2: Identifying Automatic Air Conditioner System Switches And Control Function (With Monochrome Display)
