Relief Oil Pressure

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure that belt tension is normal before starting the following procedure.
  1. Connect the Tool between oil pump discharge connector and high-pressure hose. Bleed air from the hydraulic circuit while opening valve fully. Refer to "INSPECTION ".

    Tool numbers: KV48103500 (J-26357)

    : KV48102500 (J-33914)

  2. Start engine. Run engine until oil temperature reaches 50 to 80°C (122 to 176°F).
    CAUTION:
    • Leave the valve of the hydraulic pressure gauge [SST] fully open while starting and running engine. If engine is started with the valve closed, the hydraulic pressure in oil pump goes up to the relief pressure along with unusual increase of oil temperature.
    • Be sure to keep hose clear of belts and other parts when engine is started.
  3. Fully close the Tool valve with engine at idle and measure the relief oil pressure.

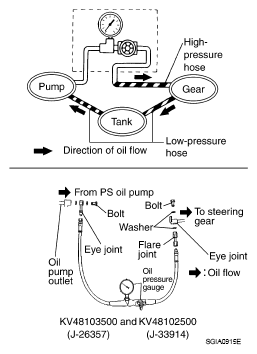

    Fig 1: Measuring Relief Oil Pressure Using Tool
    G05877414Courtesy of NISSAN MOTOR CO., U.S.A.

    Relief oil pressure: Refer to  "OIL PUMP "

    CAUTION: Never keep valve closed for 10 seconds or longer.
  4. Open the valve slowly after measuring. Replace oil pump if the relief oil pressure is outside the standard.
  5. After inspection, disconnect the Tool from hydraulic circuit, then add fluid and bleed air. Refer to "INSPECTION ".
