Heated Steering Wheel: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

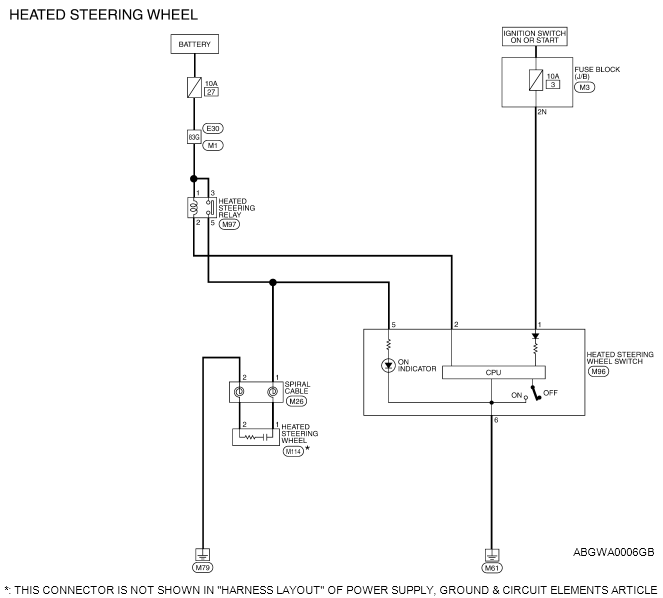

Fig 1: Heated Steering Wheel - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

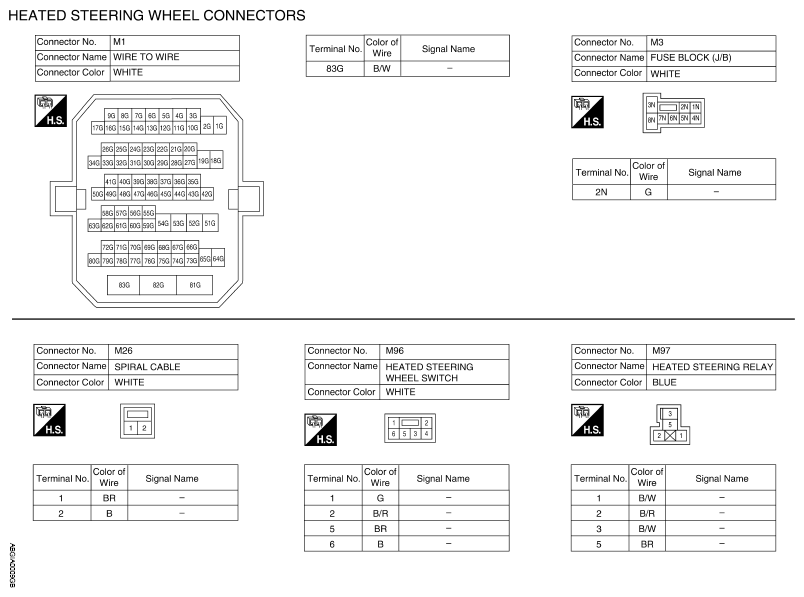

Fig 2: Identifying Heated Steering Wheel Connectors Terminals (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

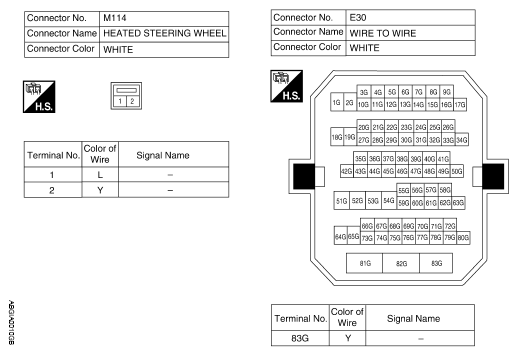

Fig 3: Identifying Heated Steering Wheel Connectors Terminals (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
