WASHER TUBE: Layout

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

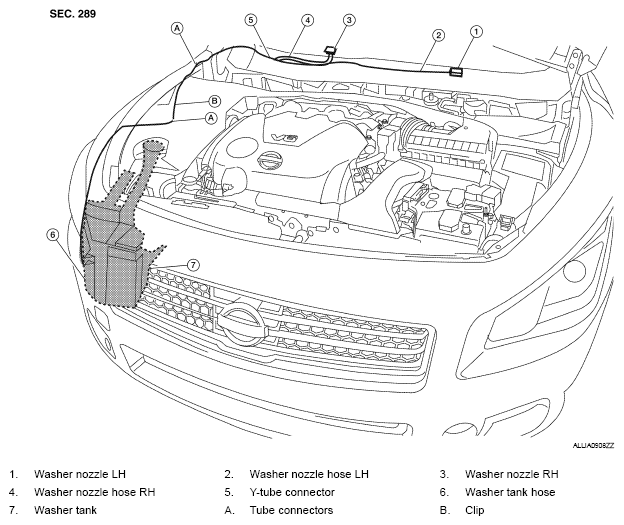

Fig 1: Identifying Washer Tube Components
G05876967Courtesy of NISSAN MOTOR CO., U.S.A.
