FRONT WASHER NOZZLE: Adjustment

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Adjust spray positions to match the target positions as shown.

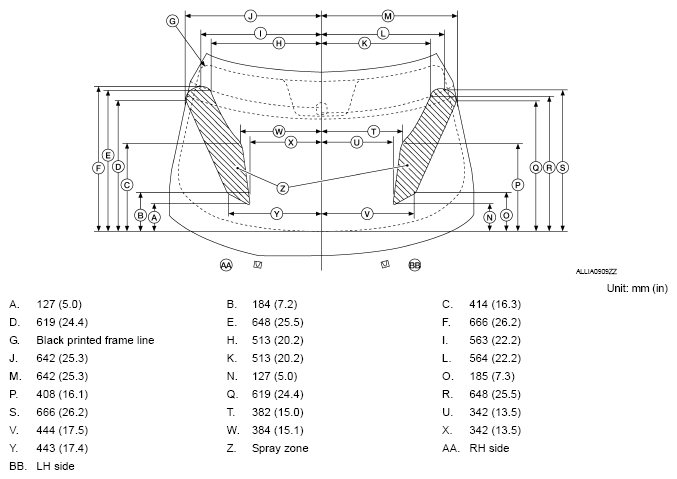

Fig 1: Identifying Front Washer Nozzle Spray Positions

Courtesy of NISSAN MOTOR CO., U.S.A.

Front washer nozzles (1)

Insert a suitable tool (A) into the nozzle hole (B) and move up/down and left/right to adjust the spray position.

Fig 2: Adjusting Spray Position

Courtesy of NISSAN MOTOR CO., U.S.A.
