WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

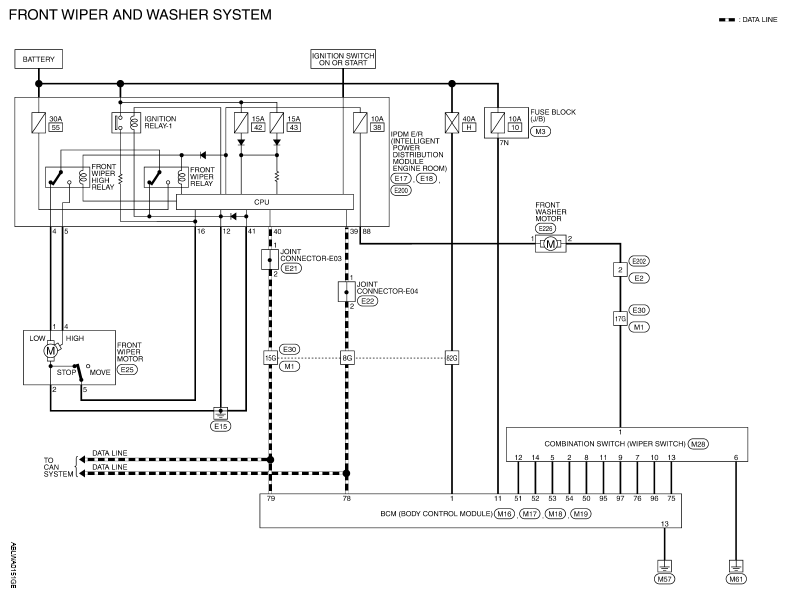

Fig 1: Front Wiper And Washer System - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

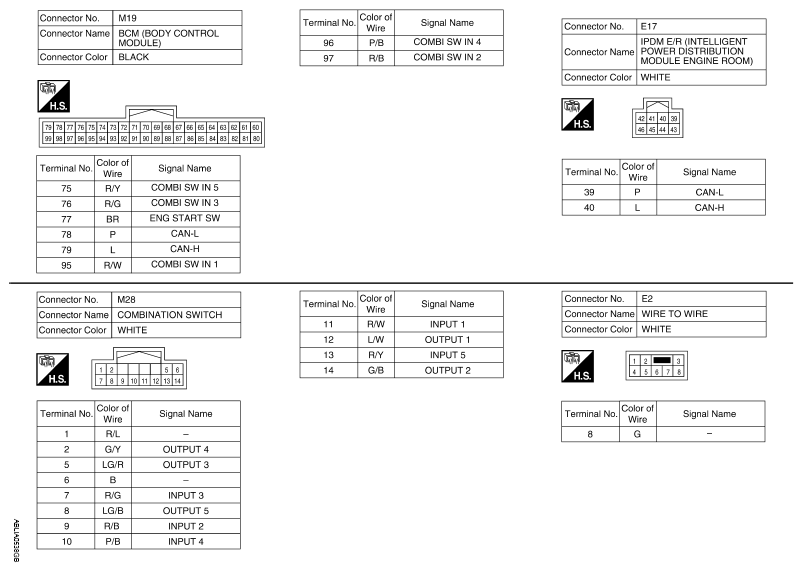

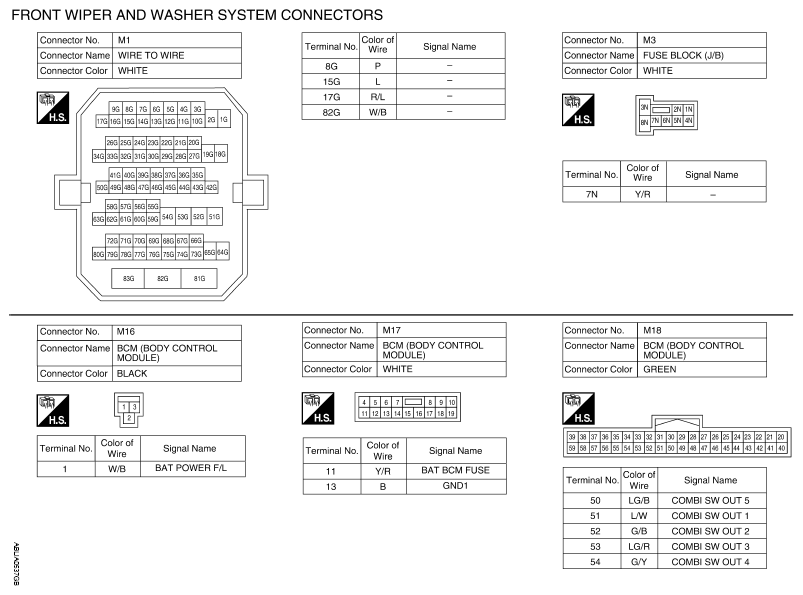

Fig 2: Identifying Front Wiper And Washer System Connector Terminals (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

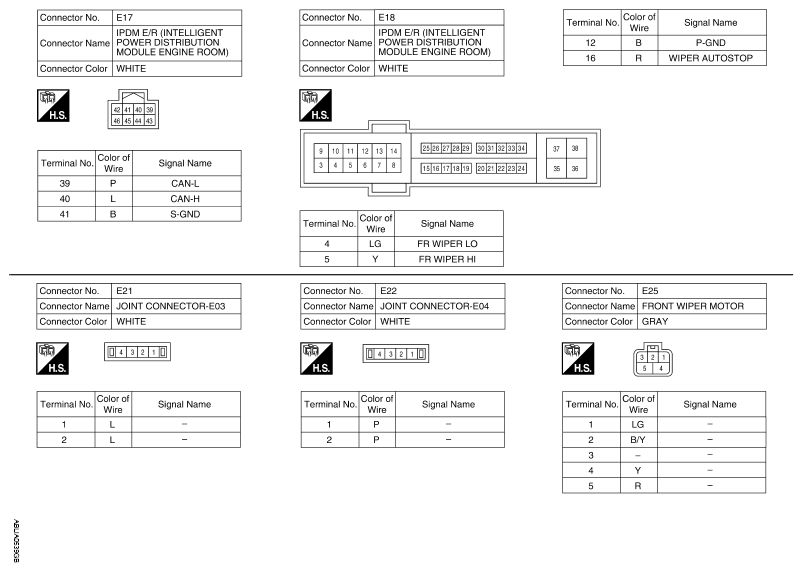

Fig 3: Identifying Front Wiper And Washer System Connector Terminals (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

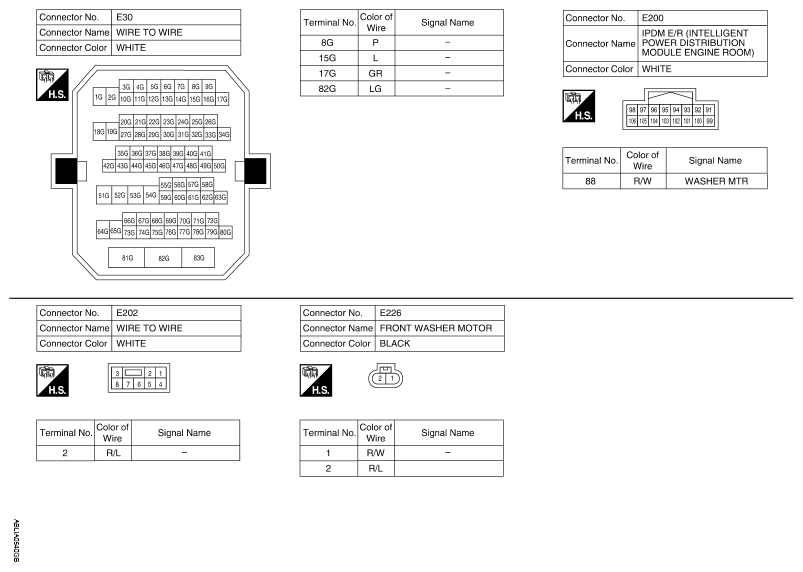

Fig 4: Identifying Front Wiper And Washer System Connector Terminals (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Identifying Front Wiper And Washer System Connector Terminals (4 Of 4)
