Removal and Installation: Installation

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal. Refer to "EXPLODED VIEW ".

When installing stabilizer, make sure that notch (A) in stabilizer clips face front.
Make sure the slit (B) in surface of stabilizer bushings face rear.

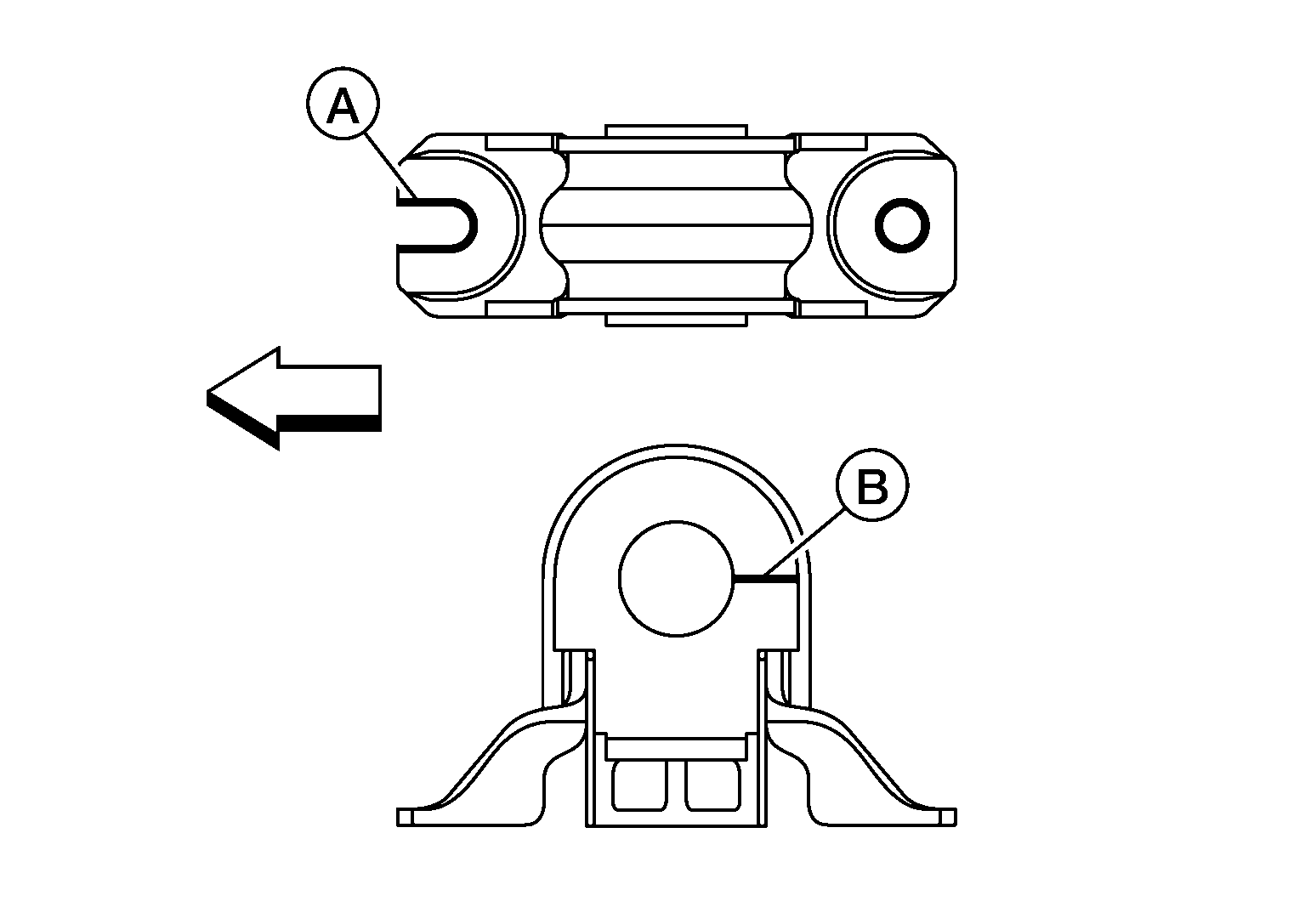

Fig 1: Identifying Notch And Slit
Courtesy of NISSAN MOTOR CO., U.S.A.
Stabilizer uses pillow ball type connecting rod. Position ball joint with case on pillow ball head parallel to stabilizer.

Fig 2: Identifying Correct And Incorrect Position Ball Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
