Section 1005 (Exterior Trim & Body Panels)
>>
On-Vehicle Repair
>>
Fender Protector
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

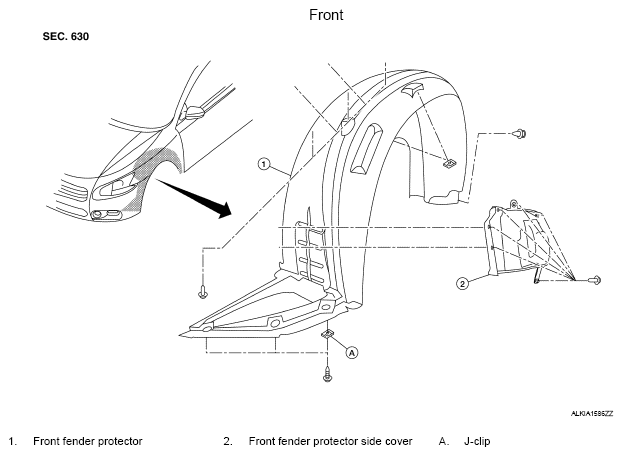

Fig 1: Identifying Fender Protector Components (Front)
Courtesy of NISSAN MOTOR CO., U.S.A.

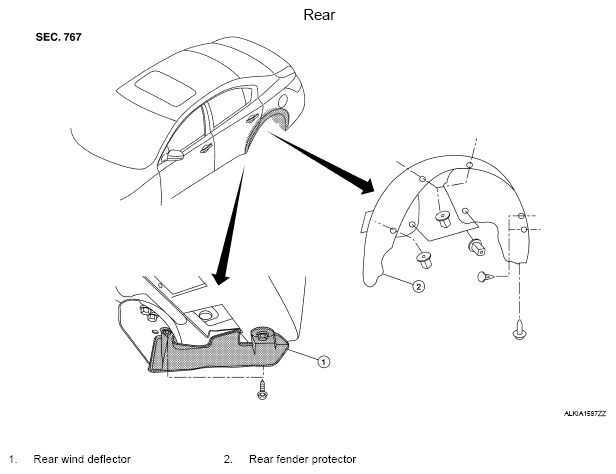

Fig 2: Identifying Fender Protector Components (Rear)
Courtesy of NISSAN MOTOR CO., U.S.A.
