Clip and Fastener

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Clips and fasteners in this article correspond to the following numbers and symbols.
Replace any clips and/or fasteners which are damaged during removal or installation.

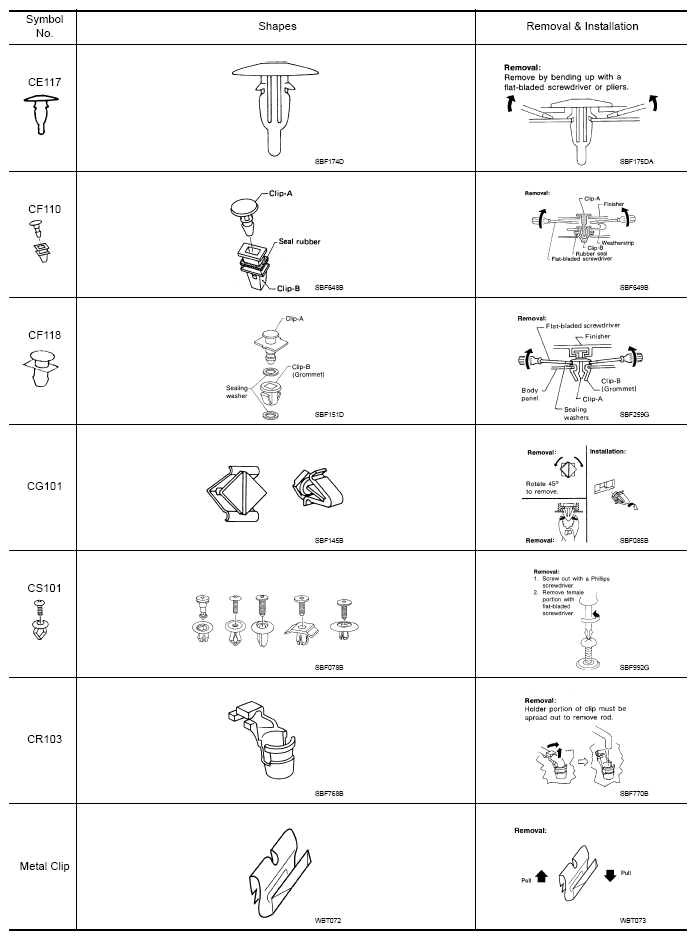

Fig 1: Clip And Fastener Removal & Installation Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

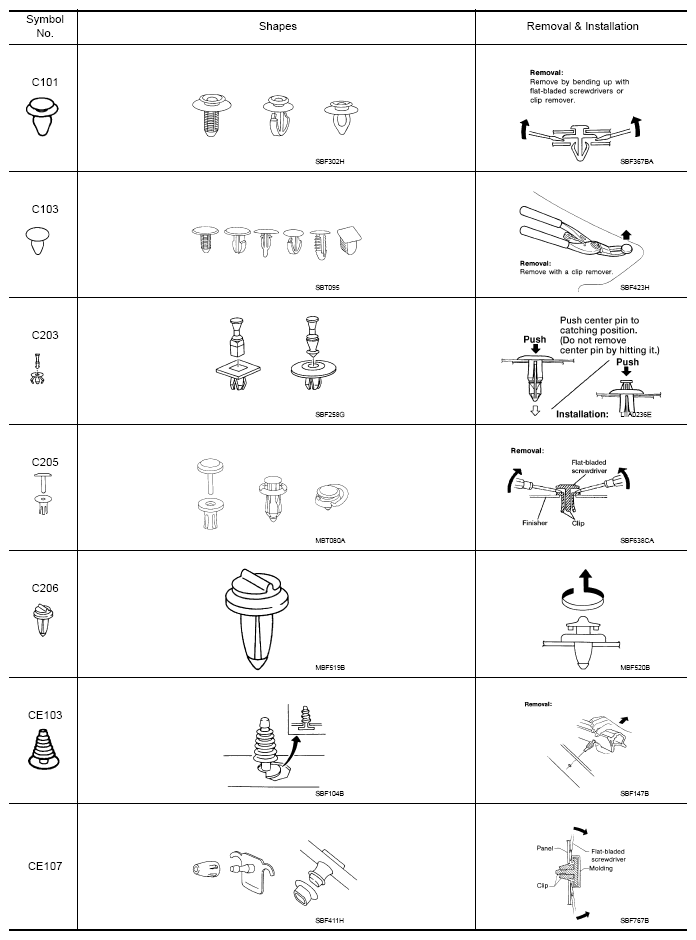

Fig 2: Clip And Fastener Removal & Installation Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
