Inspection Before Installation
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

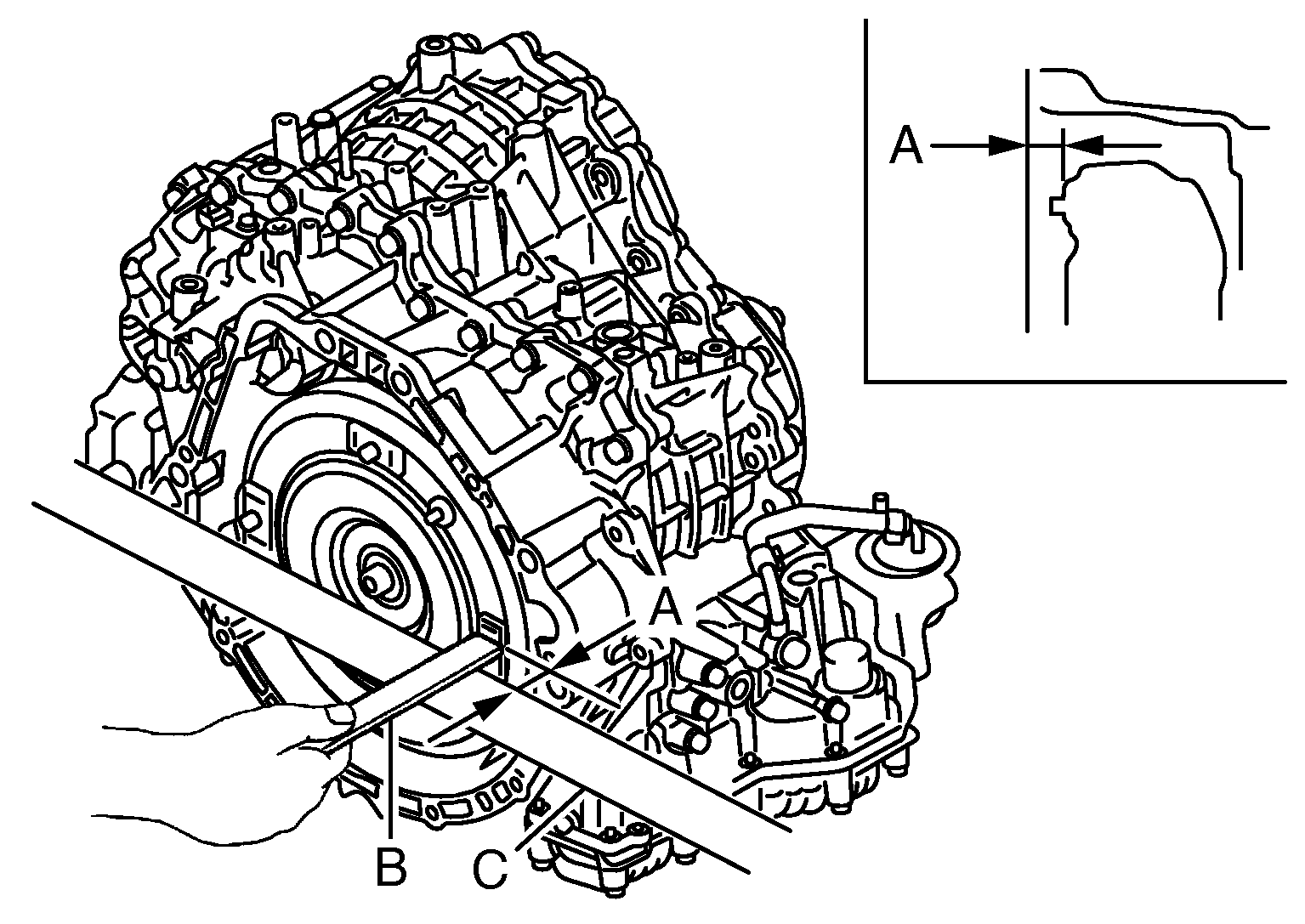

After inserting a torque converter to transaxle assembly, check that dimension (A) is within the reference value limit.
B: Scale
C: Straightedge
Dimension A: Refer to "TORQUE CONVERTER ".
