Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Park the vehicle on a level surface.
  2. Remove the driver air bag module. Refer to "EXPLODED VIEW ".
  3. Remove the steering wheel. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove the column cover. Refer to "EXPLODED VIEW ".
  5. Remove the vehicle harness connector (C) and (D) from paddle shifter.

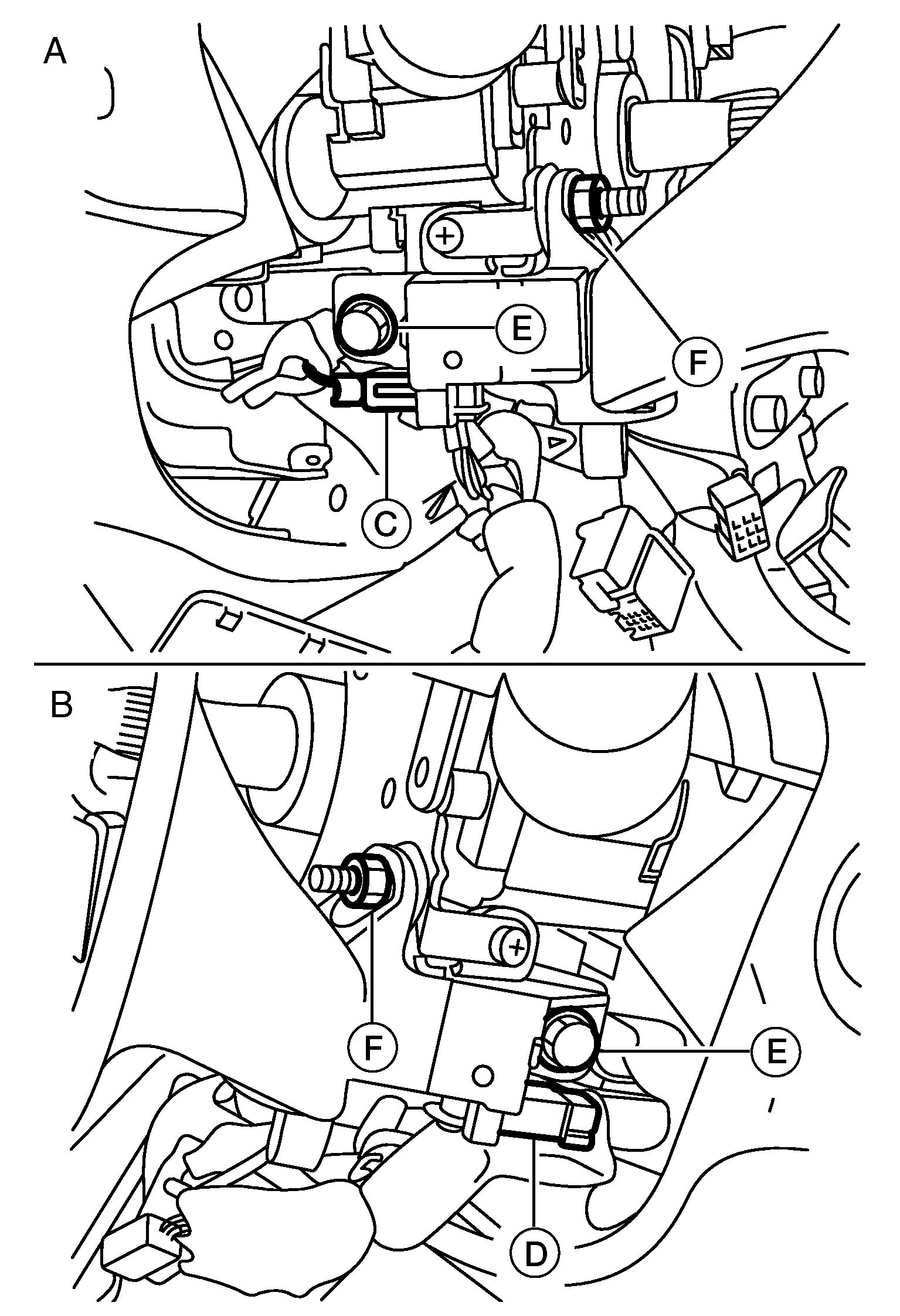

    Fig 1: Identifying Vehicle Harness Connector, Paddle Shifter Bolts And Nuts
    G05875868Courtesy of NISSAN MOTOR CO., U.S.A.

    A: Side of paddle shifter (shift-down)

    B: Side of paddle shifter (shift-up)

  6. Remove the paddle shifter bolts (E) and nuts (F).
  7. Remove the paddle shifter from the steering column assembly.
