Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine side undercover.
  2. Remove front drive shafts. Refer to "REMOVAL AND INSTALLATION (LEFT SIDE) " and "REMOVAL AND INSTALLATION (RIGHT SIDE) ".
  3. Remove differential side oil seals (1) using a suitable tool (A).
CAUTION: Be careful not to scratch transaxle case and converter housing.

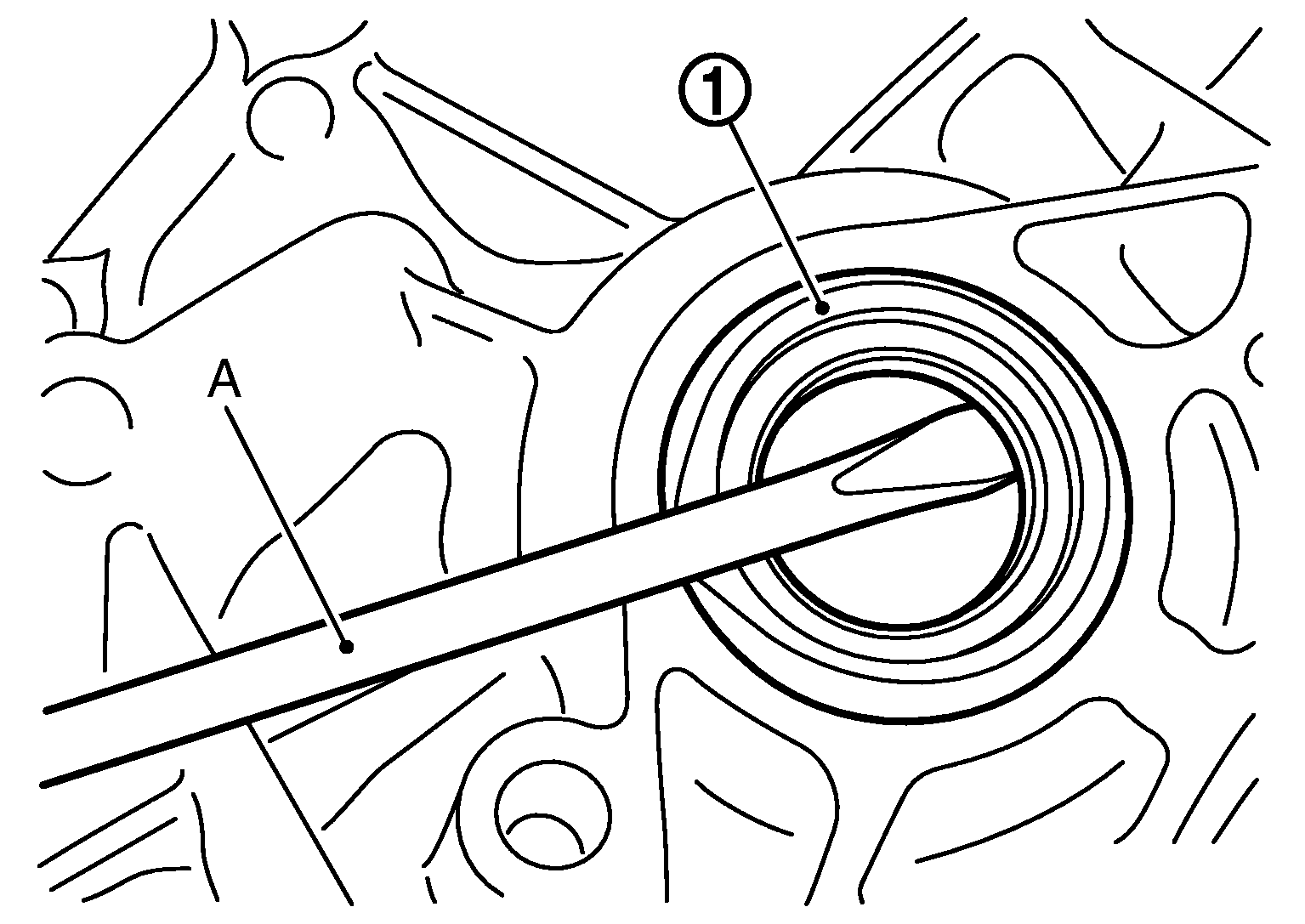

Fig 1: Removing Differential Side Oil Seal
G05370078Courtesy of NISSAN MOTOR CO., U.S.A.
