Cross-Sectional View

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

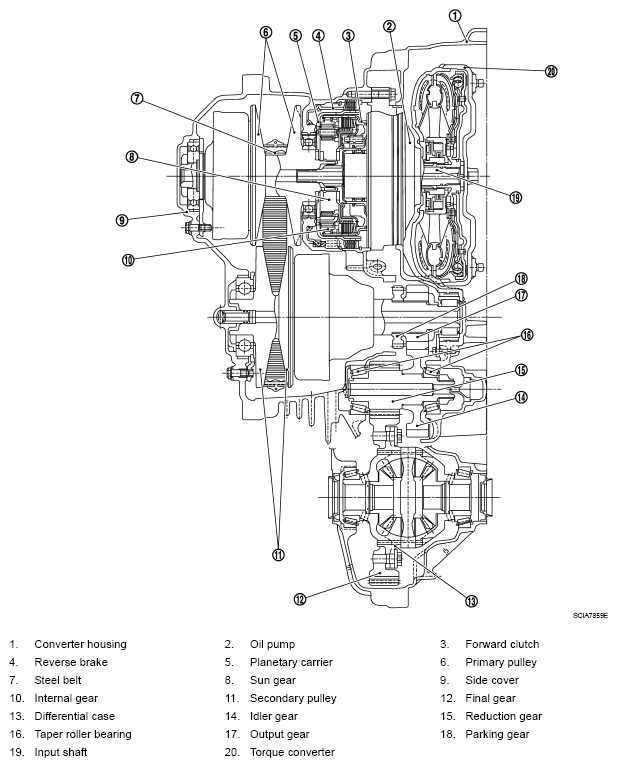

Fig 1: Identifying Mechanical System Components
G05875682Courtesy of NISSAN MOTOR CO., U.S.A.
