WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

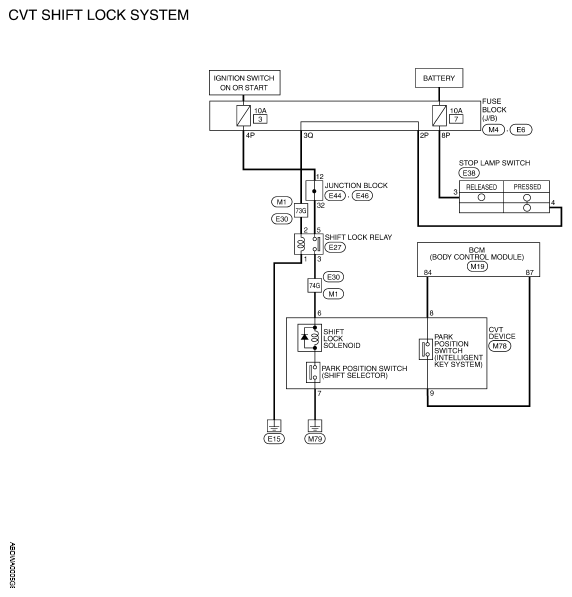

Fig 1: CVT Shift Lock System - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

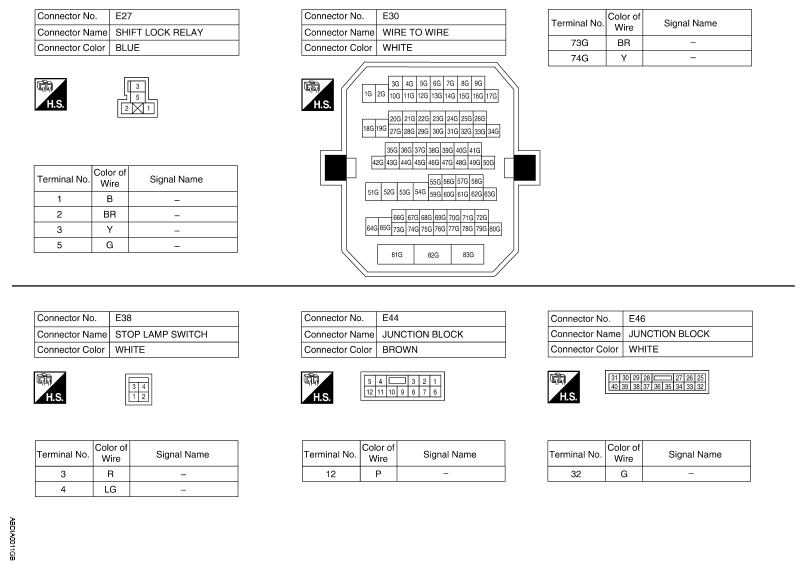

Fig 2: Identifying CVT Shift Lock System Connectors (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

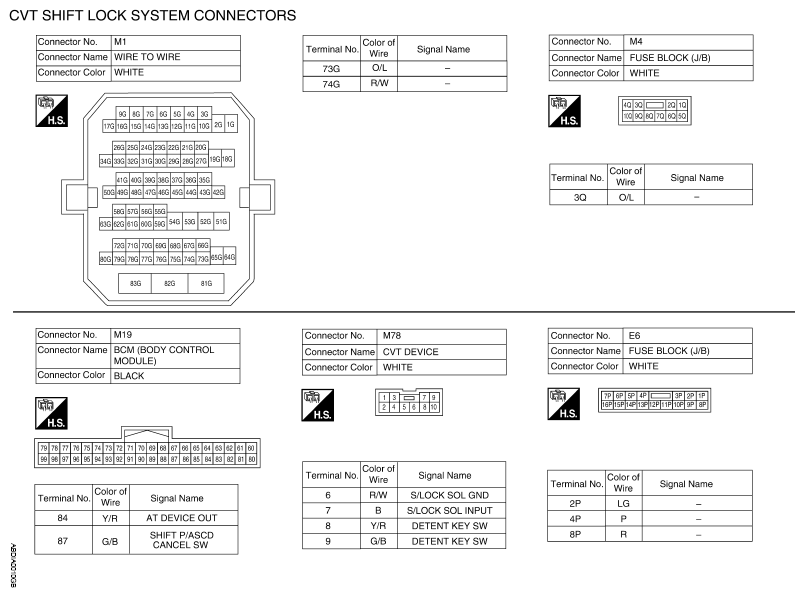

Fig 3: Identifying CVT Shift Lock System Connectors (2 Of 2)
