Component Inspection (Stop Lamp Switch)

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK STOP LAMP SWITCH

Check continuity between stop lamp switch terminals.

TERMINAL CONTINUITY REFERENCE

Stop lamp switch terminals		Condition	Continuity
3	4	Brake pedal depressed	Yes
3	4	Brake pedal released	No

Is the inspection result normal?

YES: Inspection End

NO: Replace stop lamp switch. Refer to "EXPLODED VIEW ".

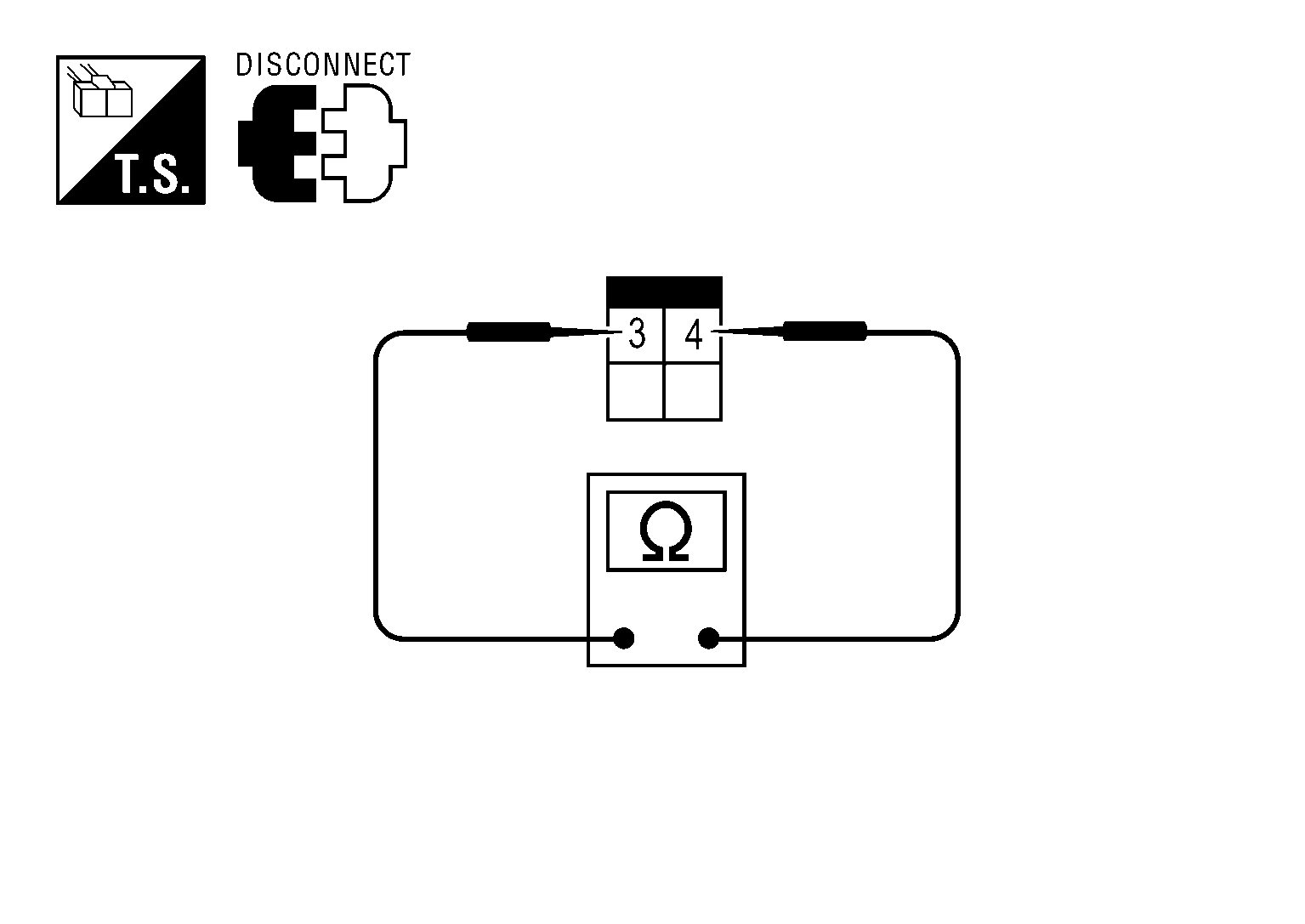

Fig 1: Checking Continuity Between Stop Lamp Switch Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
