Valve Seat
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

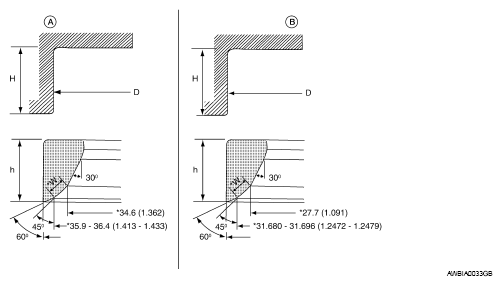

VALVE SEAT SPECIFICATION
| Unit: mm (in) | |||||
|---|---|---|---|---|---|
| Items | Standard | Oversize (Service) [0.5 (0.02)] | |||
| Cylinder head seat recess diameter "D" | Intake (A) | 38.000 - 38.016 (1.4961 - 1.4967) | 38.500 - 38.516 (1.5157 - 1.5164) | ||
| Exhaust (B) | 31.600 - 31.616 (1.2441 - 1.2447) | 32.100 - 32.116 (1.2638 - 1.2644) | |||
| Valve seat outer diameter | Intake | 38.097 - 38.113 (1.4999 - 1.5005) | 38.597 - 38.613 (1.5196 - 1.5202) | ||
| Exhaust | 31.680 - 31.696 (1.2472 - 1.2479) | 32.180 - 32.196 (1.2669 - 1.2676) | |||
| Valve seat interference fit | Intake | 0.081 - 0.113 (0.0032 - 0.0044) | |||
| Exhaust | 0.064 - 0.096 (0.0025 - 0.0038) | ||||
| Height "h" | Intake (A) | 5.9 - 6.0 (0.232 - 0.236) | 5.0 - 5.1 (0.197 - 0.201) | ||
| Exhaust (B) | 5.9 - 6.0 (0.232 - 0.236) | 4.9 - 5.0 (0.193 - 0.197) | |||
| Contacting width "W"(1) | Intake (A) | 1.18 - 1.22 (0.0465 - 0.0480) | |||
| Exhaust (B) | 1.38 - 1.42 (0.0543 - 0.0559) | ||||
| Cylinder head seat recess depth (H) | 6.0 (0.236) | ||||
| Depth "L" | Intake (A) | 41.16 - 41.76 (1.6205 - 1.6441) | |||
| Exhaust (B) | 41.09 - 41.69 (1.6177 - 1.6413) | ||||
|
|||||
