Removal and Installation RH: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover, using power tool.
  2. Disconnect the mass air flow sensor electrical connector and remove the air cleaner assembly and air intake tubes. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the intake manifold collector using power tool. Remove gasket and the electric throttle control actuator. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove ignition coils. Refer to "REMOVAL AND INSTALLATION RH ".
    CAUTION: Never shock ignition coils.
  5. Remove camshaft position sensor.
    CAUTION:
    • Handle carefully to avoid dropping and shocks.
    • Do not disassemble.
    • Do not allow metal powder to adhere to magnetic part at sensor tip (A).
      Fig 1: Identifying Camshaft Position Sensors Tip
      G04886008Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not place sensors in a location where they are exposed to magnetism.
  6. Remove RH rocker cover bolts from cylinder head as shown.

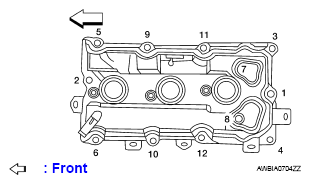

    Fig 2: Identifying Removal Sequence Of RH Rocker Cover Bolts
    G05877831Courtesy of NISSAN MOTOR CO., U.S.A.
