Removal and Installation LH: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover, using power tool.
  2. Remove front air duct.
  3. Remove blow by hose from rocker cover.
  4. Remove camshaft position sensor.
    CAUTION:
    • Handle carefully to avoid dropping and shocks.
    • Do not disassemble.
    • Do not allow metal powder to adhere to magnetic part at sensor tip (A).
      Fig 1: Identifying Camshaft Position Sensors Tip
      G04886008Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not place sensors in a location where they are exposed to magnetism.
  5. Disconnect the ignition coil connectors.
  6. Remove the ignition coils. Refer to "REMOVAL AND INSTALLATION LH ".
    CAUTION: Never shock ignition coils.
  7. Remove LH rocker cover bolts from cylinder head as shown.

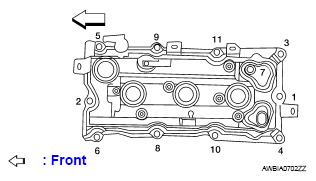

Fig 2: Identifying Removal Sequence Of LH Rocker Cover Bolts
G05877827Courtesy of NISSAN MOTOR CO., U.S.A.
