Removal and Installation: Installation

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Tighten intake manifold collector bolts in the order as shown.

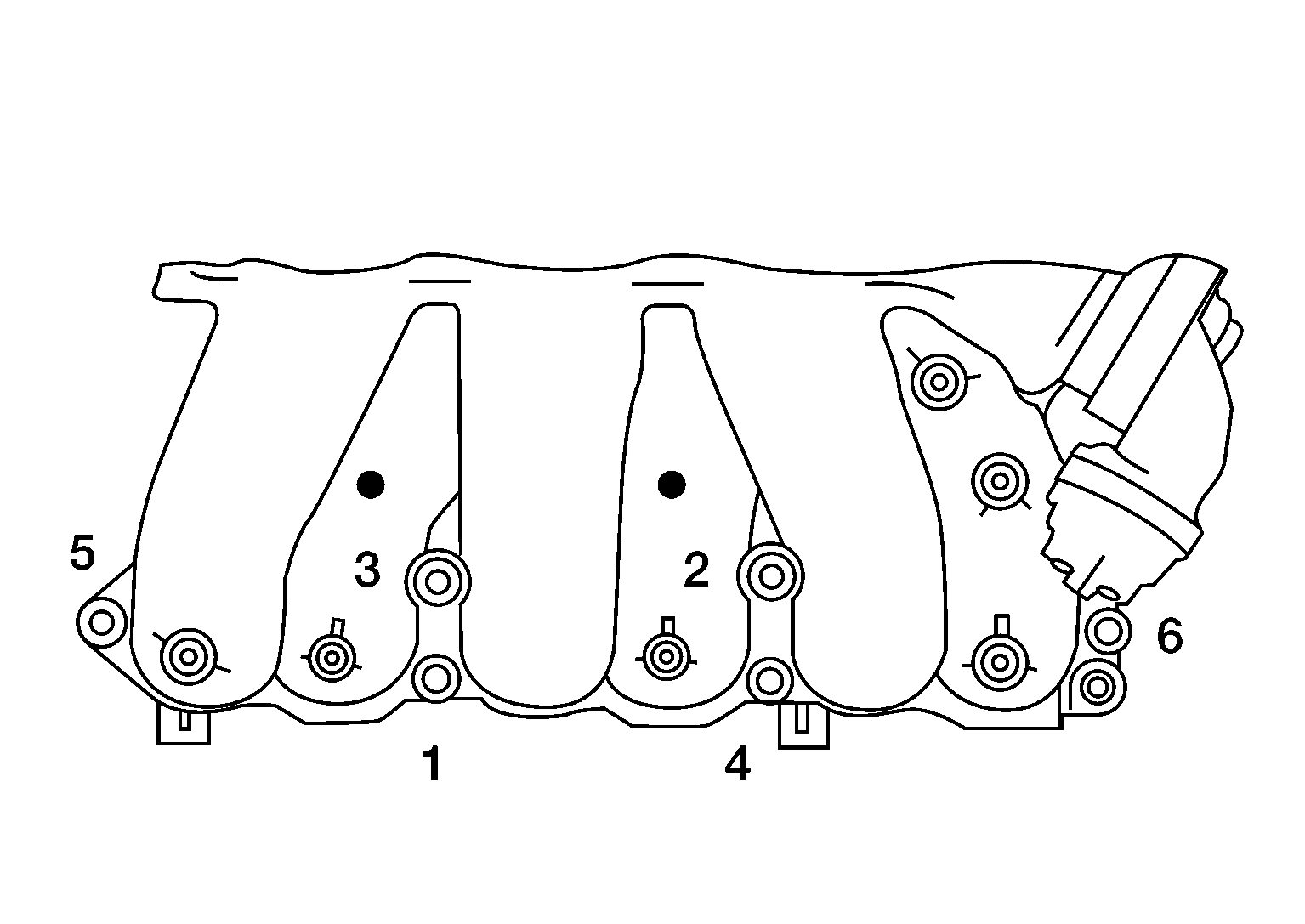

Fig 1: Identifying Tightening Sequence Of Intake Manifold Collector Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten electric throttle control actuator bolts in the order shown.

Fig 2: Identifying Electric Throttle Control Actuator Bolts (With Tightening Sequence)
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: After installation, it is necessary to re-calibrate the electric throttle control actuator as follows:

Perform the "Throttle Valve Closed Position Learning" when harness connector of the electric throttle control actuator is disconnected. Refer to "THROTTLE VALVE CLOSED POSITION LEARNING: SPECIAL REPAIR REQUIREMENT ".
Perform the "Idle Air Volume Learning" when the electric throttle control actuator is replaced. Refer to "IDLE AIR VOLUME LEARNING: SPECIAL REPAIR REQUIREMENT ".
