Removal and Installation: Installation

NOTE: Install it so that each seal lip is oriented as shown.

Fig 2: Identifying Oil Seal Lip And Dust Seal Lip

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Install the new front oil seal so that it becomes flush with the face with front timing chain case using suitable drift.
   Fig 3: Installing Oil Seal

   Courtesy of NISSAN MOTOR CO., U.S.A.

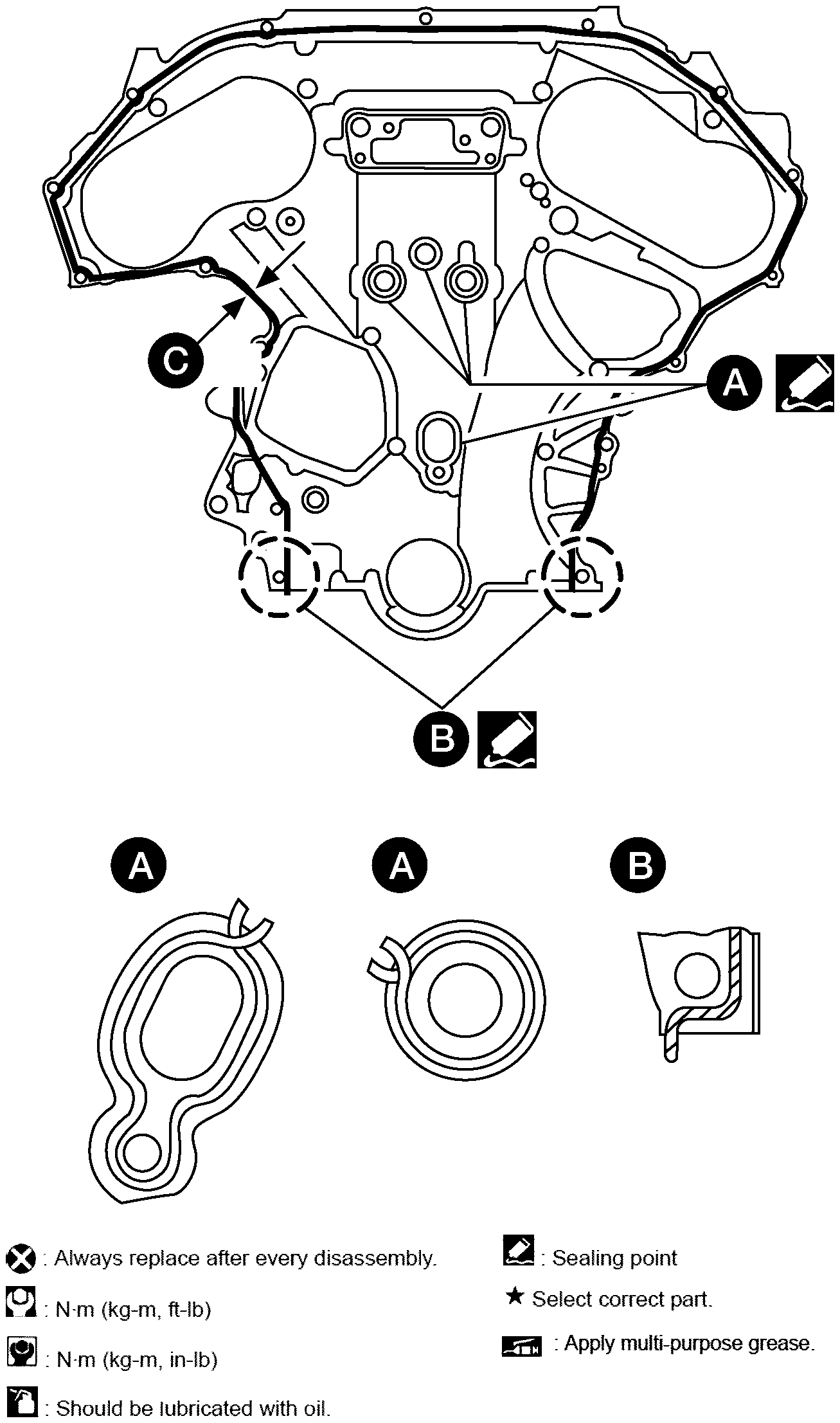

Fig 4: Identifying Silicone RTV Sealant Applying Area

Courtesy of NISSAN MOTOR CO., U.S.A.

• Use Genuine Silicone RTV Sealant, or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
• Before installation, wipe off the protruding sealant.
• C: 2.6 - 3.6 mm (0.102 - 0.142 in) dia.

Bolt position Bolt diameter

1, 2: 8 mm (0.31 in)

3 - 22: 6 mm (0.24 in)

• Retighten the front timing chain case bolts in the order as shown.

  Bolt position Tightening specification

  1, 2: 28.5 N.m (2.9 kg-m, 21 ft-lb)

  3 - 22: 12.8 N.m (1.3 kg-m, 9 ft-lb)

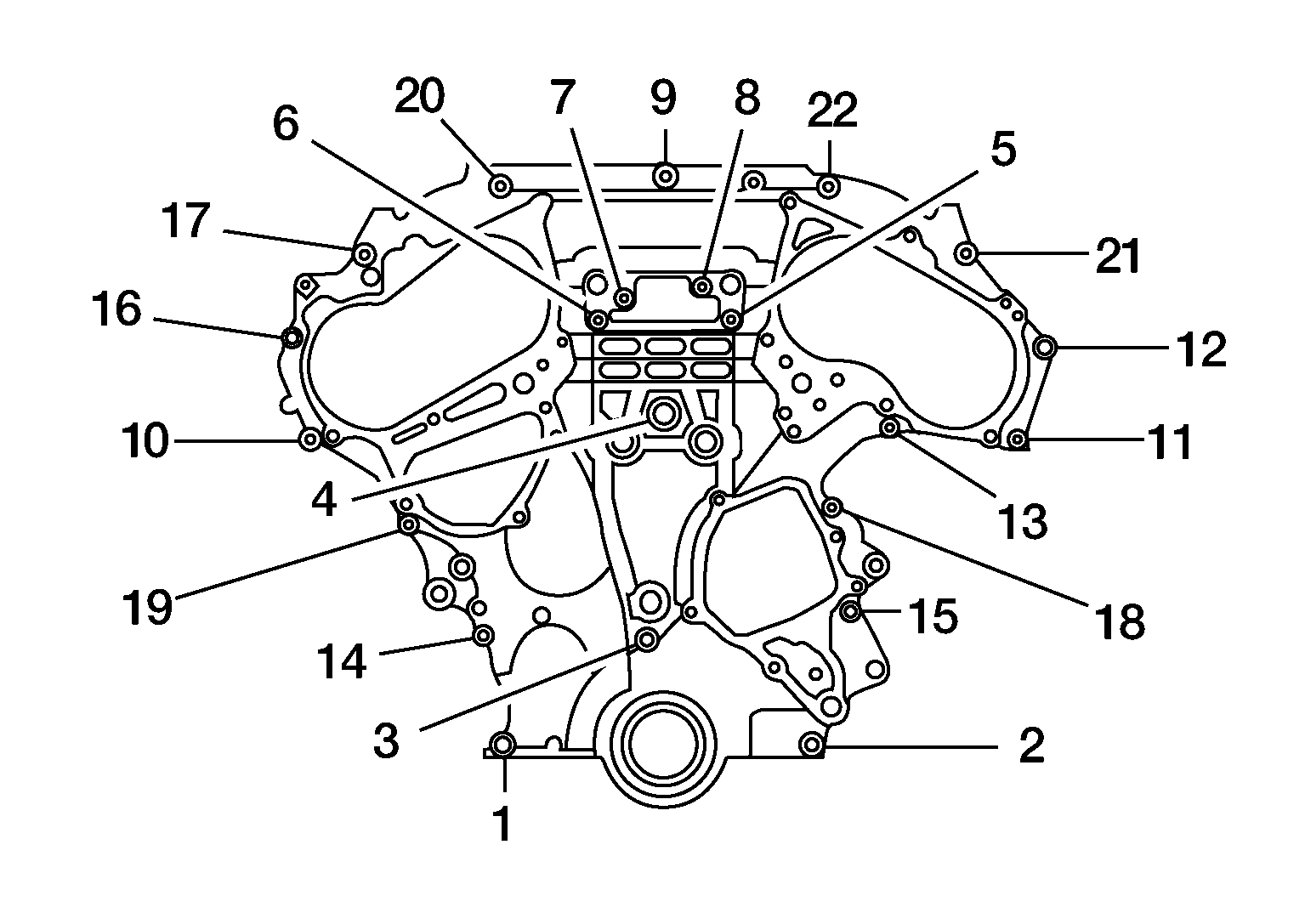

Fig 5: Identifying Tightening Sequence Of Front Timing Chain Case Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Install new seal rings (1) in shaft grooves.
   Fig 6: Identifying Seal Rings

   Courtesy of NISSAN MOTOR CO., U.S.A.
   CAUTION: When replacing seal rings, replace all rings with new ones on both RH and LH IVT control valve covers.
2. To check the joint between dowel pins and dowel pin holes, check the looseness in the axle direction by pushing the circumferential looseness (between dowel pins and dowel holes) by twisting in the circumferential direction.
   • A: Mating surface of magnet retarded
   • B: Moves slightly
   • C: Not shaken
   CAUTION: Always perform this procedure when removing because the gap between dowel pins and dowel pin holes may not be caused on purpose.
   Fig 7: Checking Joint Between Dowel Pins And Dowel Pin Holes

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install IVT covers with a new gasket to front timing chain case.
   • 1: Valve timing control cover
   • 2: Magnet retarder
     CAUTION:

     • Never face magnet retarder side down to prevent magnet retarder from dropping.
     • Check the mating surface of the magnet retarder and the drum of the exhaust side camshaft sprocket for foreign materials.
     • Align center of both shaft holes of the shaft and the intake side of the intake camshaft sprocket, and then insert them.
     • Be careful not to drop the seal ring from the shaft groove.
     Fig 8: Identifying Valve Timing Control Cover And Magnet Retarder
     Courtesy of NISSAN MOTOR CO., U.S.A.
     • When setting the valve timing control cover in position by hand, if valve timing control cover is not centered with the valve timing case, the dowel pin of the magnet retarder may not be aligned with the dowel pin holes of the cover. In this case, return to step "b".
4. Being careful not to move seal ring from the installation groove, align the dowel pins on the front timing chain case with the holes to install valve timing control covers.
5. Tighten bolts in the numerical order as shown.
   Fig 9: Identifying IVT Cover Bolts (With Tightening Sequence)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   IVT cover torque 11.3 N.m (1.2 kg-m, 8 ft-lb)

   • A: Bank 1 (Conventional RH bank)
   • B: Bank 2 (Conventional LH bank)
   • C: Dowel pin hole

• Use Genuine Silicone RTV Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Fig 10: Installing Crankshaft Pulley Bolt

Courtesy of NISSAN MOTOR CO., U.S.A.

• Lubricate thread and seat surface of the bolt with new engine oil.
• Apply a paint mark for the second step of angle tightening.

  Step 1: 44 N.m (4.5 kg-m, 32 ft-lb)

  Step 2: 84° - 90° degrees clockwise

  Tool Number: KV10112100 (BT-8653-A)
