Removal and Installation: Installation

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Install the exhaust manifold nuts in the order as shown RH (A) and LH (B).
←: Front

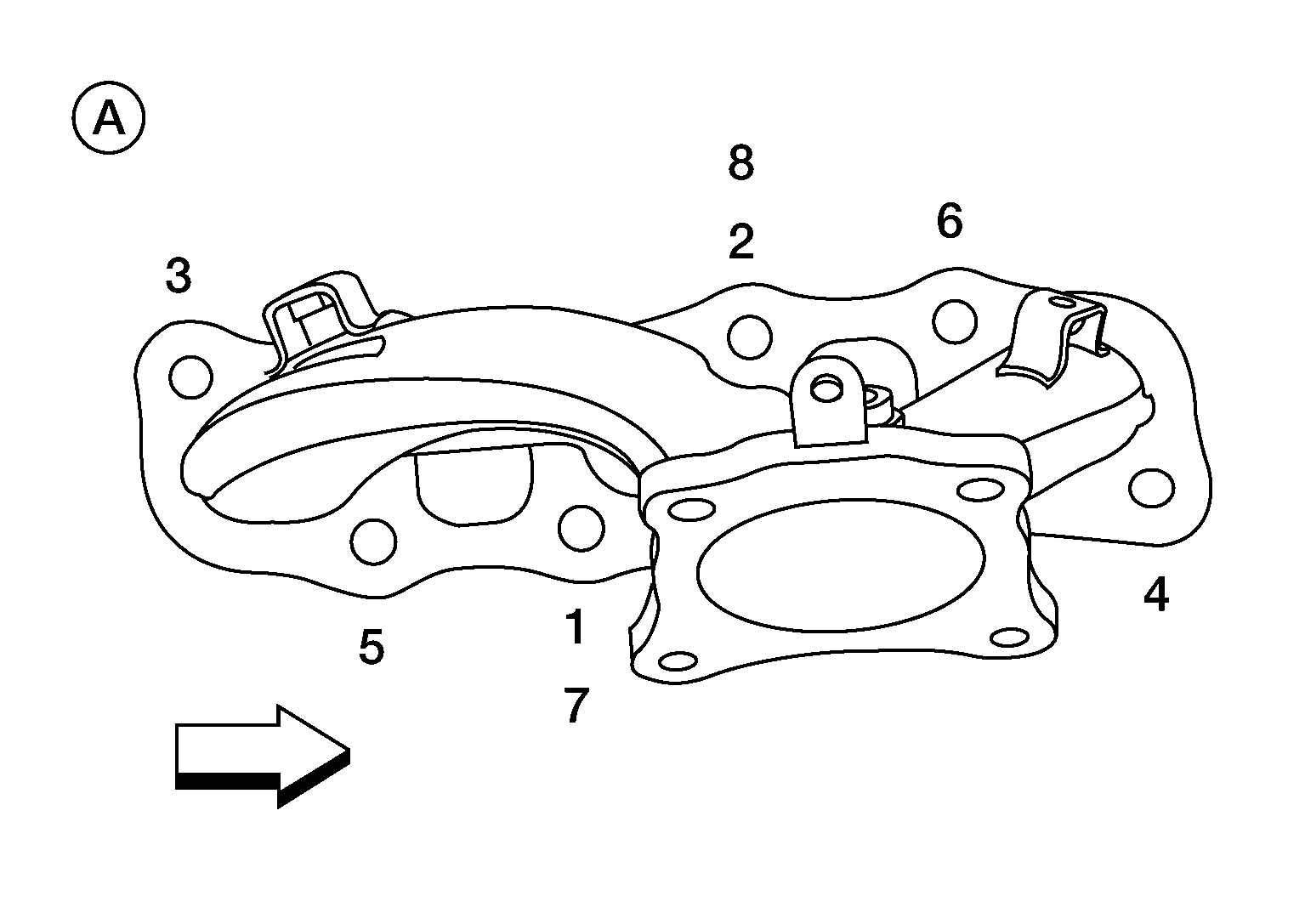

Fig 1: Identifying Tightening Sequence Of RH Exhaust Manifold Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Tightening Sequence Of LH Exhaust Manifold Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Before installing a heated oxygen sensor or air fuel ratio (A/F) sensor, clean the exhaust manifold threads using the oxygen sensor thread cleaner tool, and apply anti-seize lubricant.
Tool numbers: - (J-43897-18)

: - (J-43897-12)
Do not over-tighten the air fuel ratio (A/F) sensor or heated oxygen sensors. Doing so may cause damage.
Tool numbers: KV10114400 (J-38365)

: - (J-44626)
