Removal and Installation of Drive Belt Auto-tensioner: Notes
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

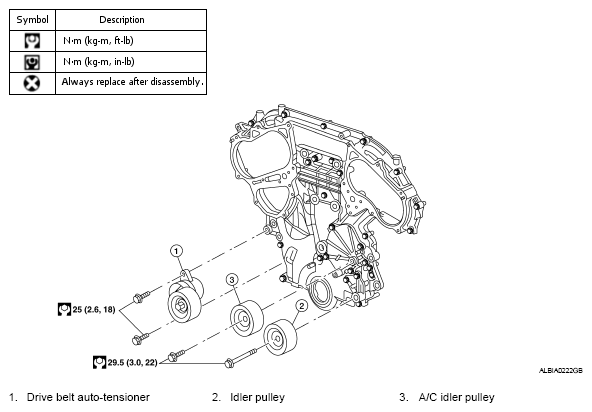

Fig 1: Drive Belt Auto-Tensioner, Idler Pulley And A/C Idler Pulley With Torque Specifications
