Audio Unit: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

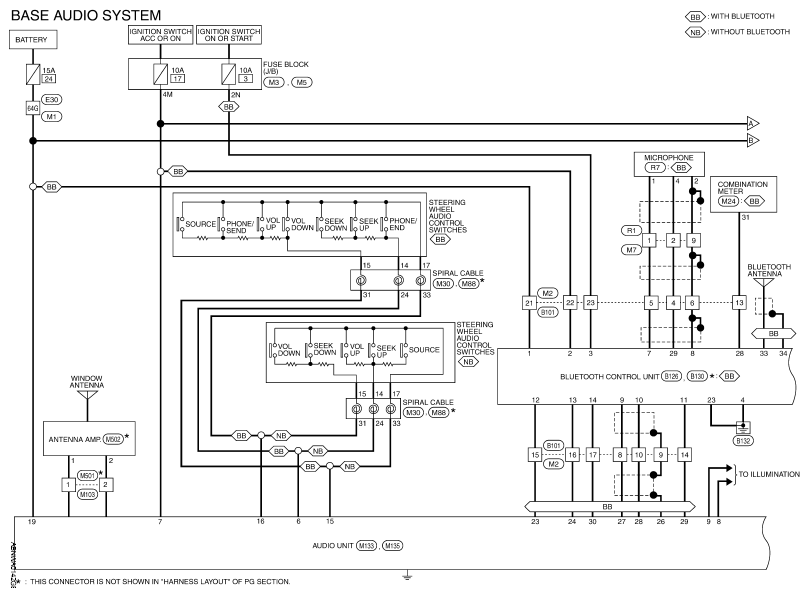

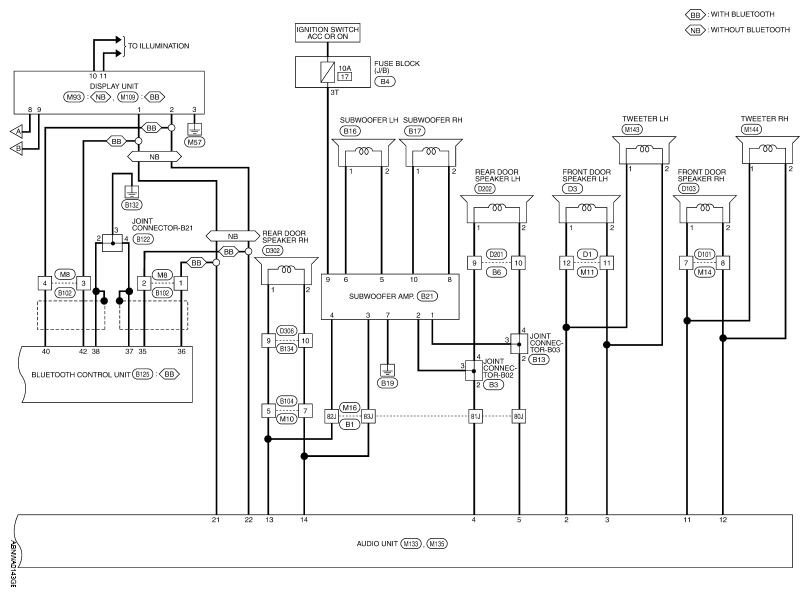

Fig 1: Audio Unit - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Audio Unit - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

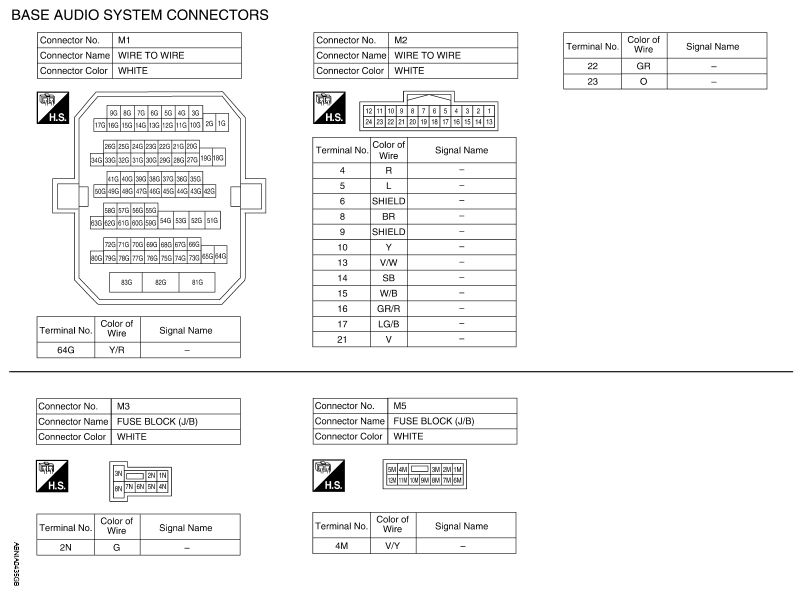

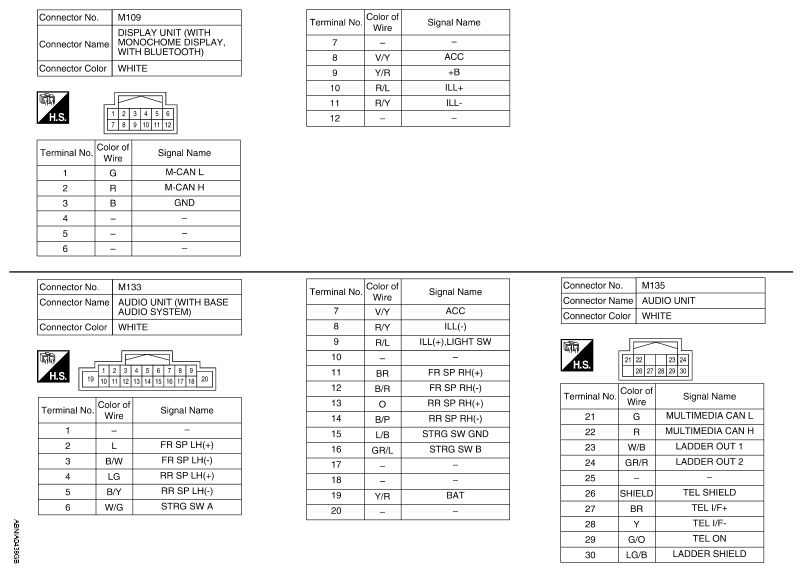

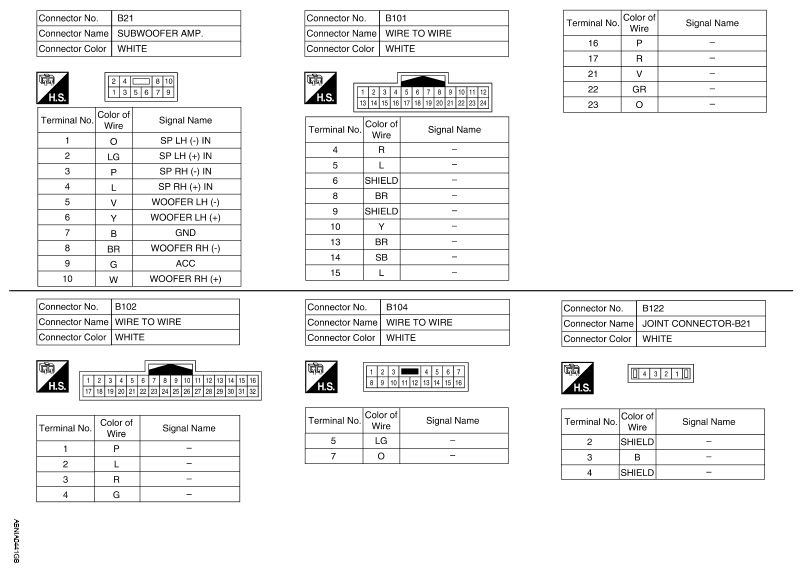

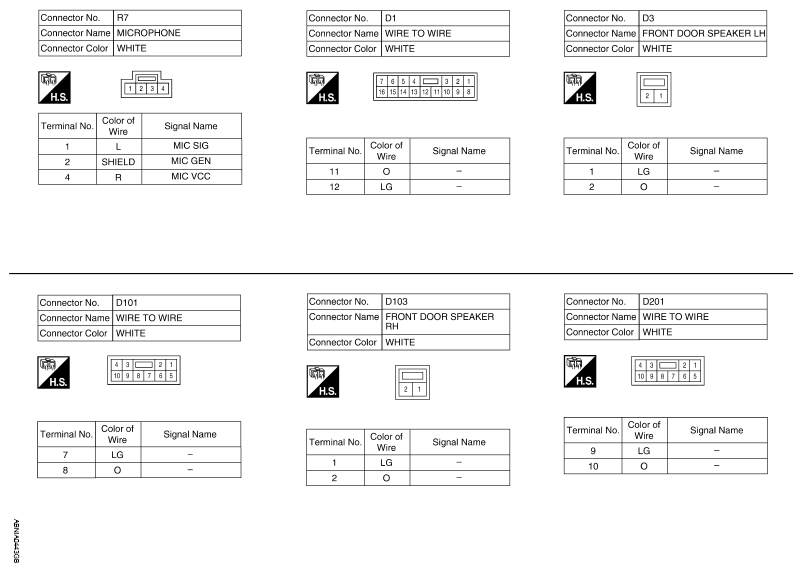

Fig 3: Base Audio System Connectors Chart (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

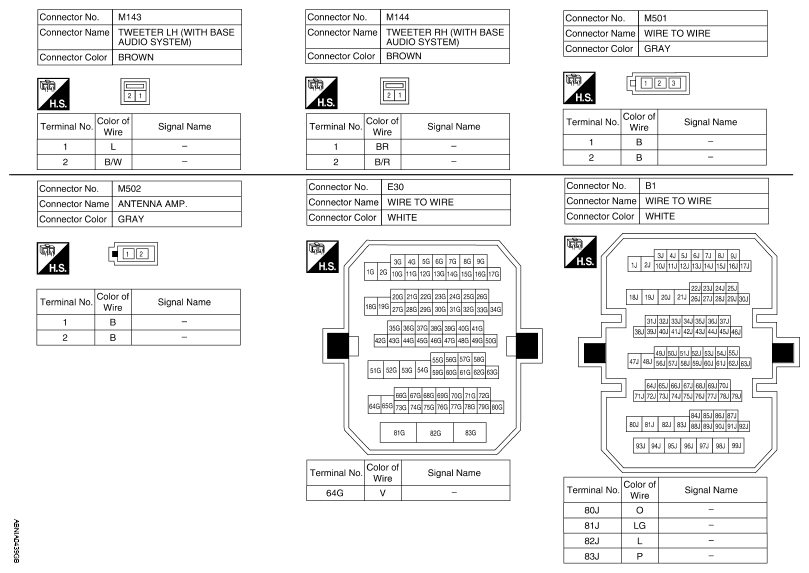

Fig 4: Base Audio System Connectors Chart (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

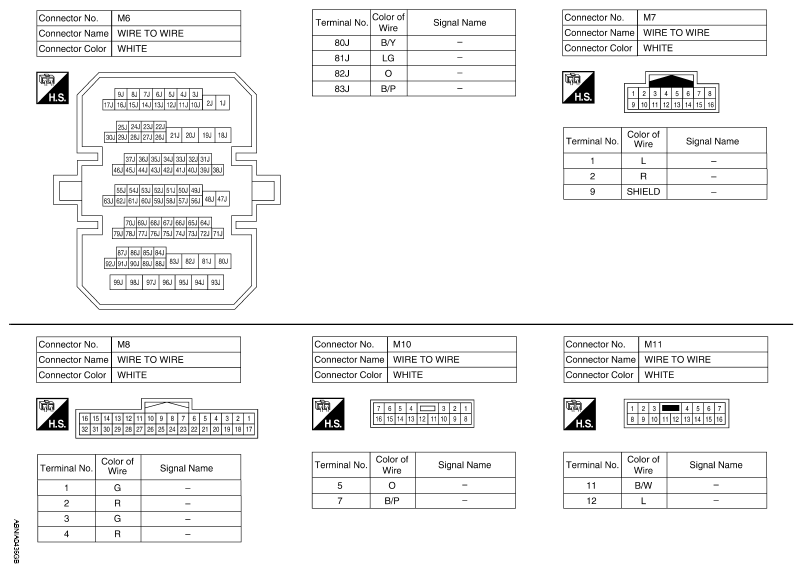

Fig 5: Base Audio System Connectors Chart (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

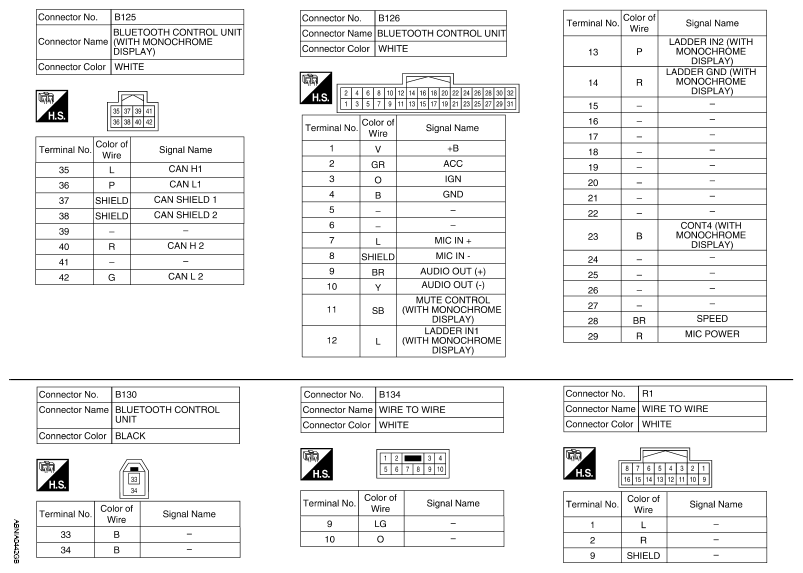

Fig 6: Base Audio System Connectors Chart (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

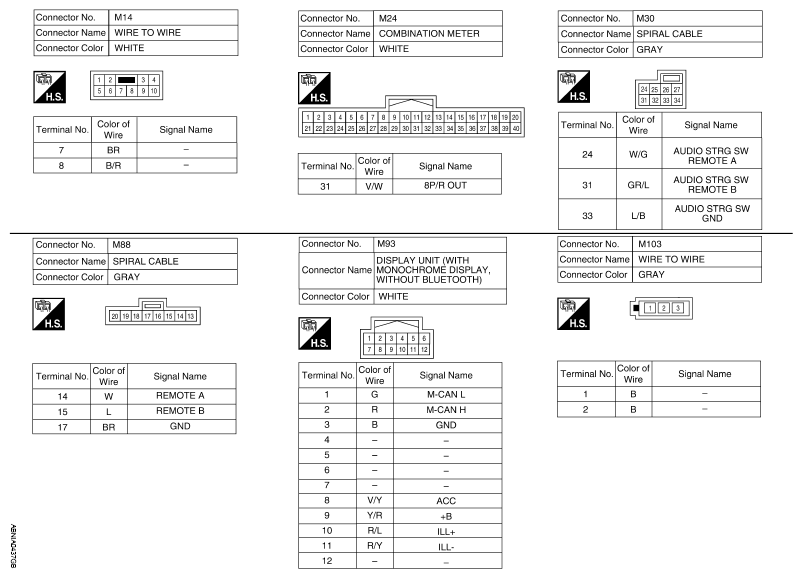

Fig 7: Base Audio System Connectors Chart (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

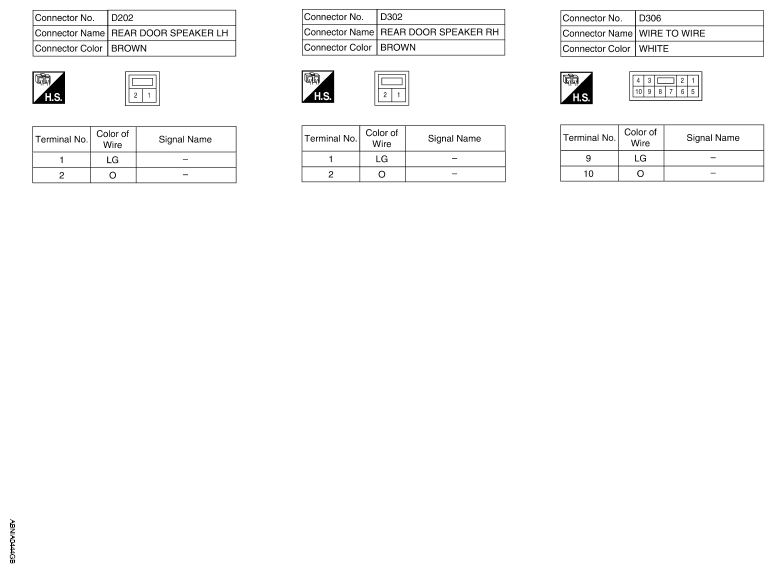

Fig 8: Base Audio System Connectors Chart (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

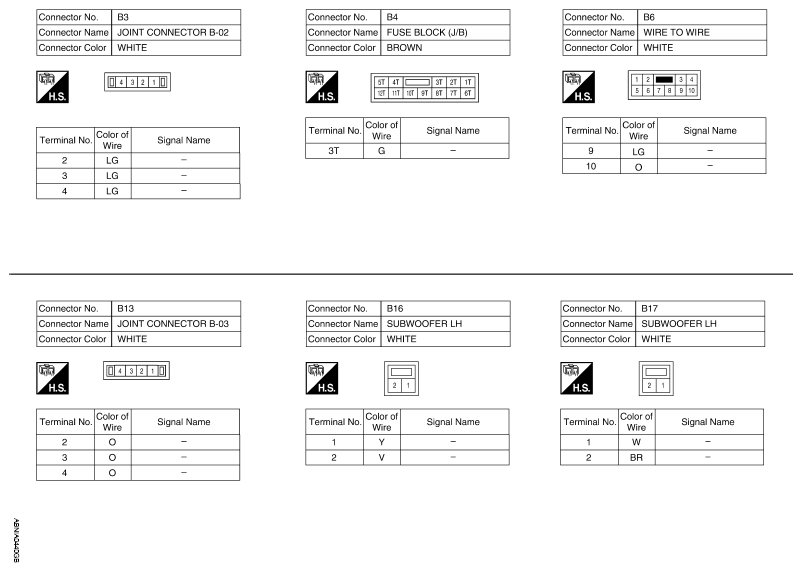

Fig 9: Base Audio System Connectors Chart (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Base Audio System Connectors Chart (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Base Audio System Connectors Chart (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Base Audio System Connectors Chart (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
