Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear parcel shelf. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the Bluetooth antenna screw (A), detach the Bluetooth antenna harness clip (B).
  3. Fold down the rear seat, if equipped or open the trunk lid, then detach the Bluetooth harness clip (C), disconnect the Bluetooth harness connector (D) and remove the Bluetooth antenna (1) through the opening in the parcel shelf.

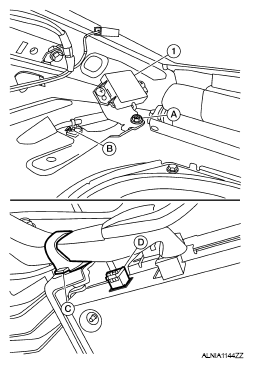

Fig 1: Identifying Bluetooth Harness Clip, Bluetooth Harness Connector And Bluetooth Antenna
G05885915Courtesy of NISSAN MOTOR CO., U.S.A.
