Element Check

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Attach probe circuit tester (ohm setting) to antenna terminal on each side.

Fig 1: Attaching Probe Circuit Tester To Antenna Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
- When measuring continuity, wrap tin foil around the top of probe. Then, press the foil against the wire with your finger.
Fig 2: Wrapping Tin Foil Around Top Of Probe
Courtesy of NISSAN MOTOR CO., U.S.A.

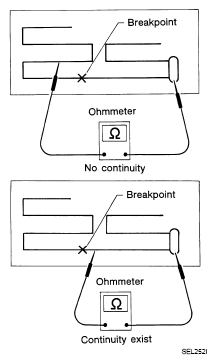

If an element is broken, no continuity will exist.

Fig 3: Checking Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
To locate a break, move probe along element. Tester indication will change abruptly when probe passes the broken point.

Fig 4: Checking Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.
