Audio Unit: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

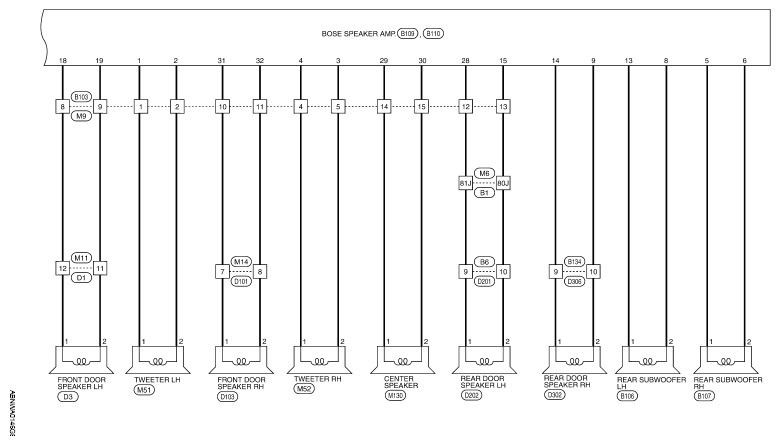

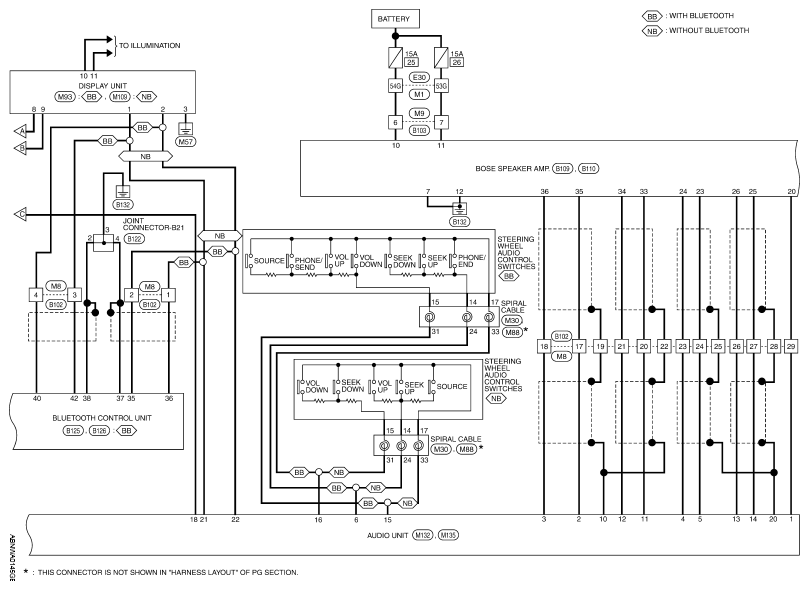

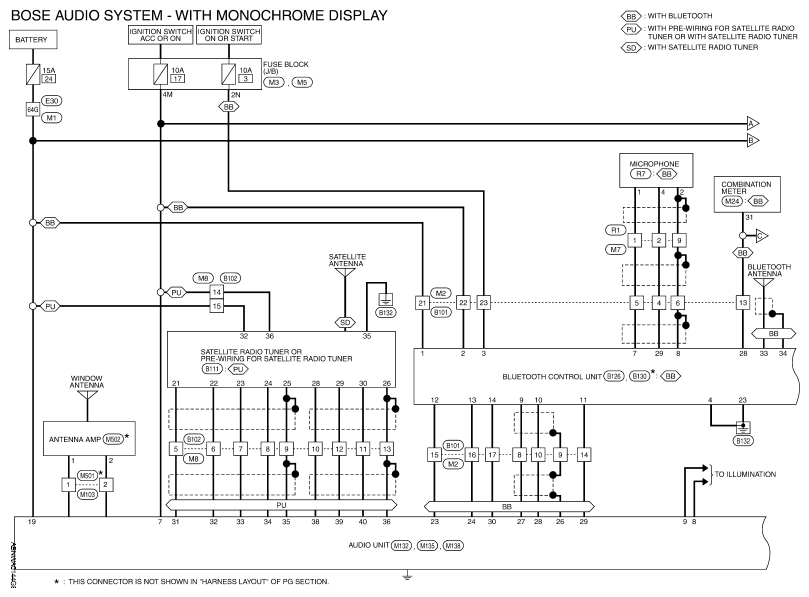

Fig 1: Audio Unit - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Audio Unit - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Audio Unit - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

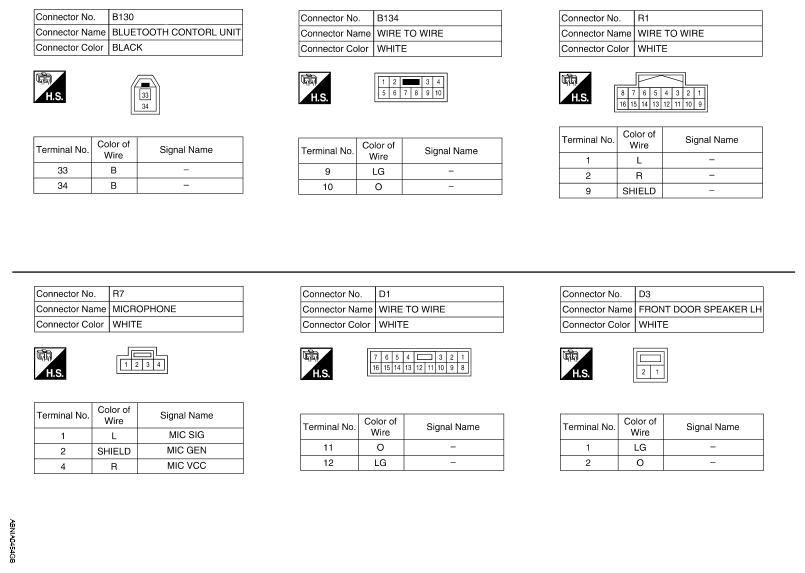

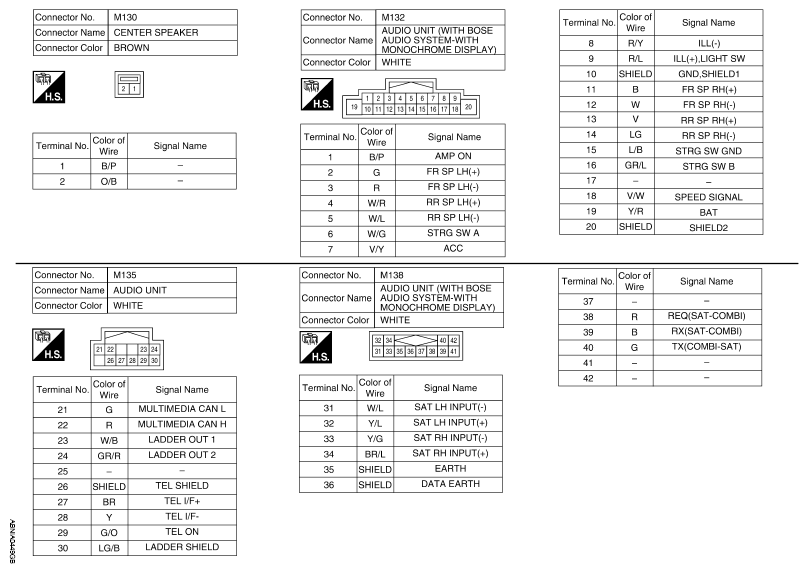

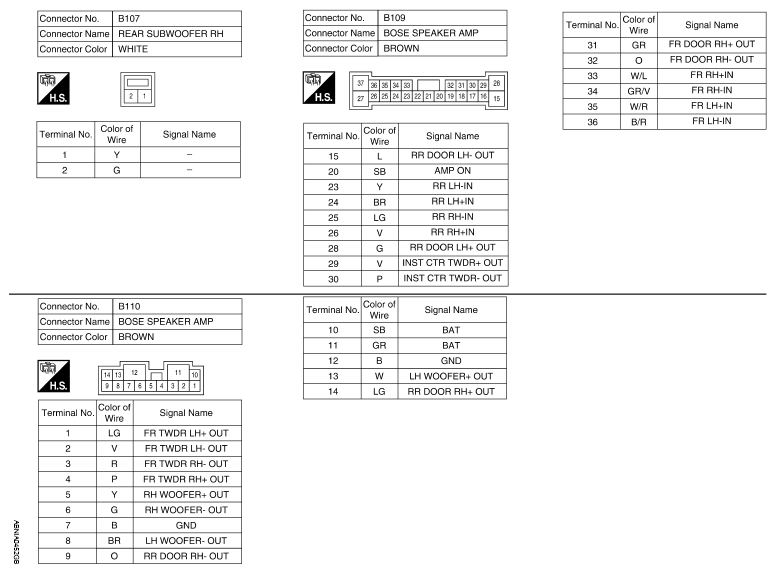

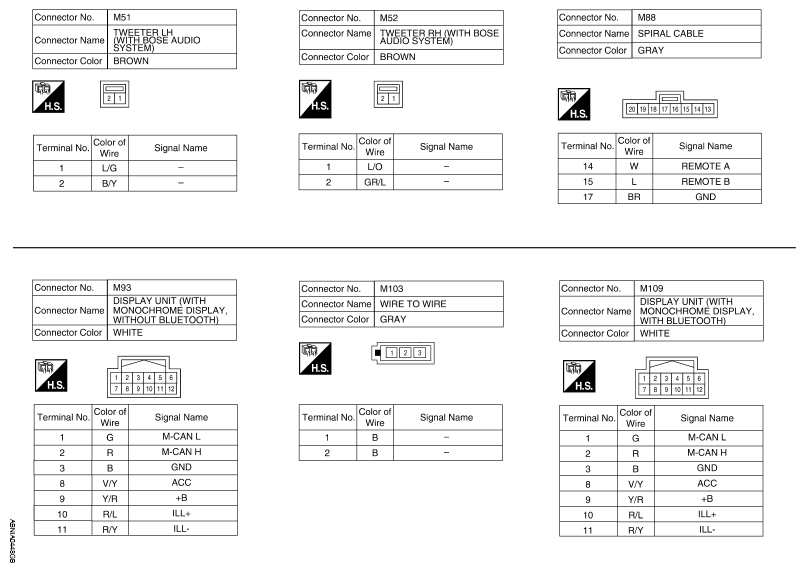

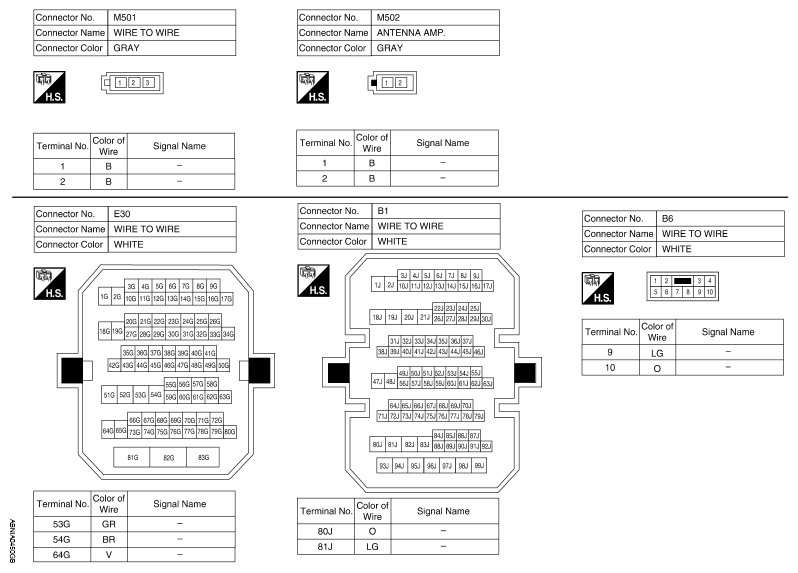

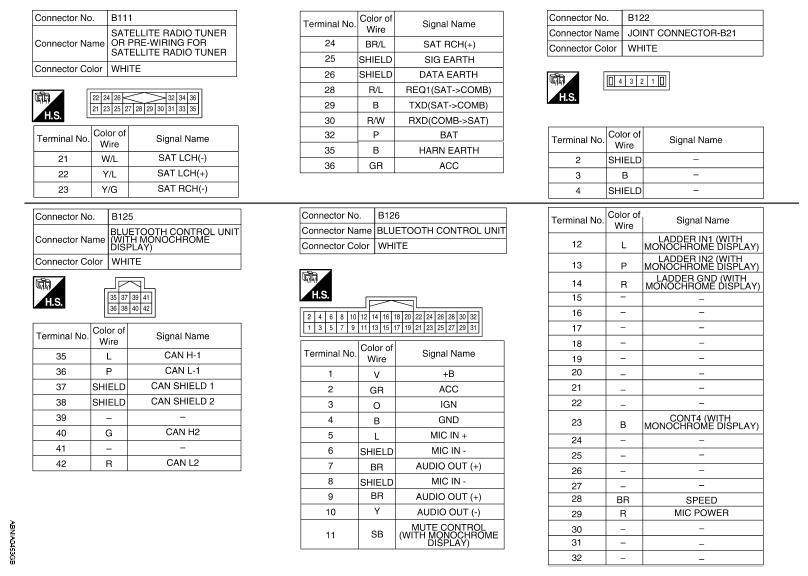

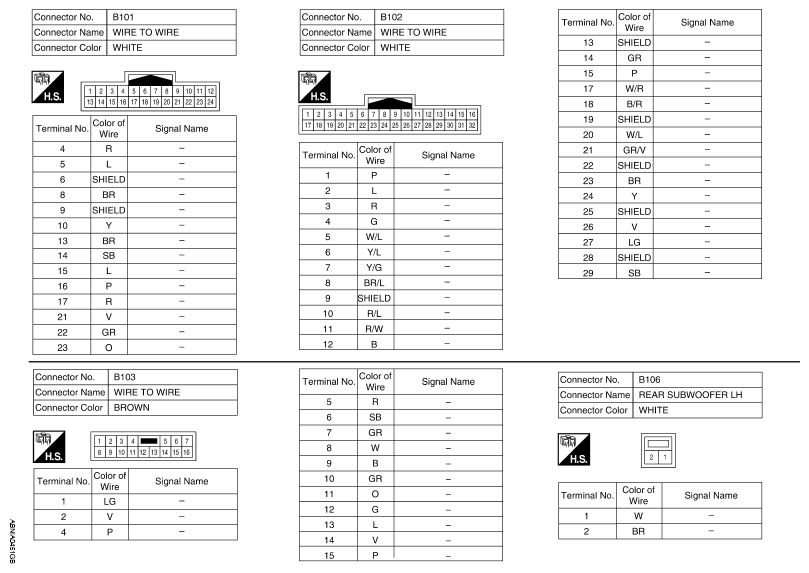

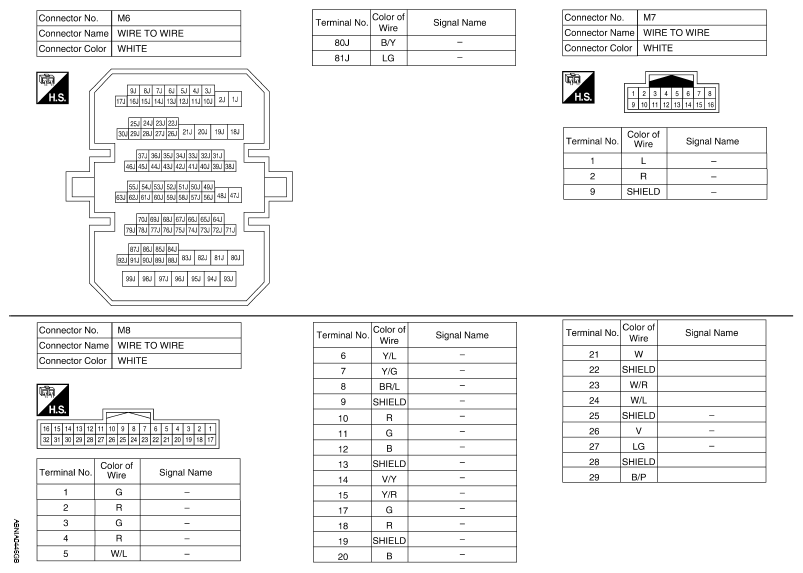

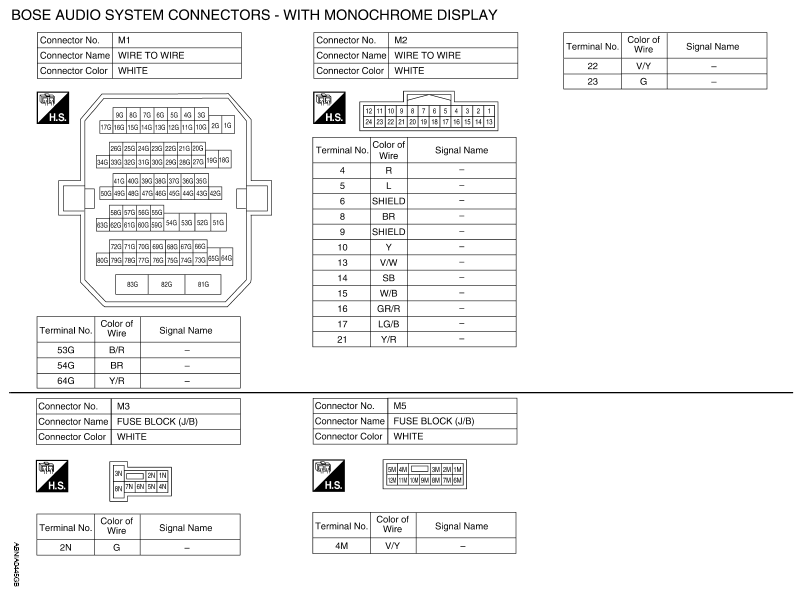

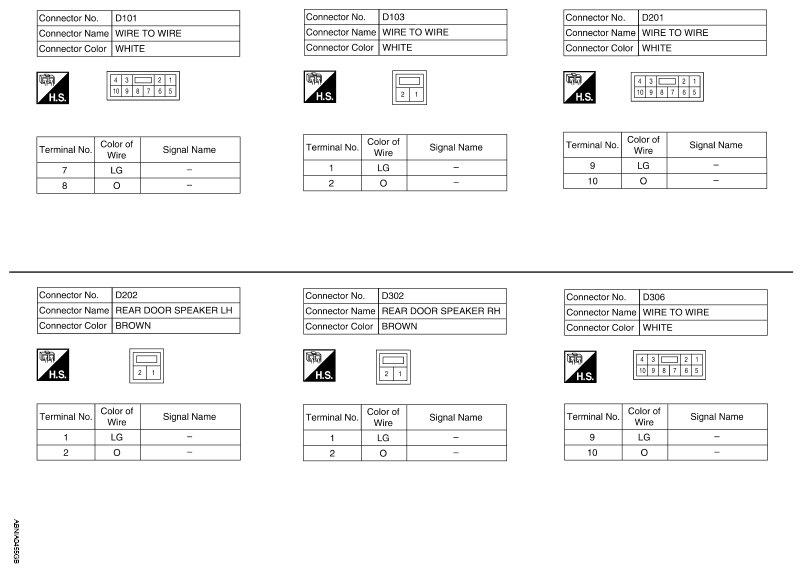

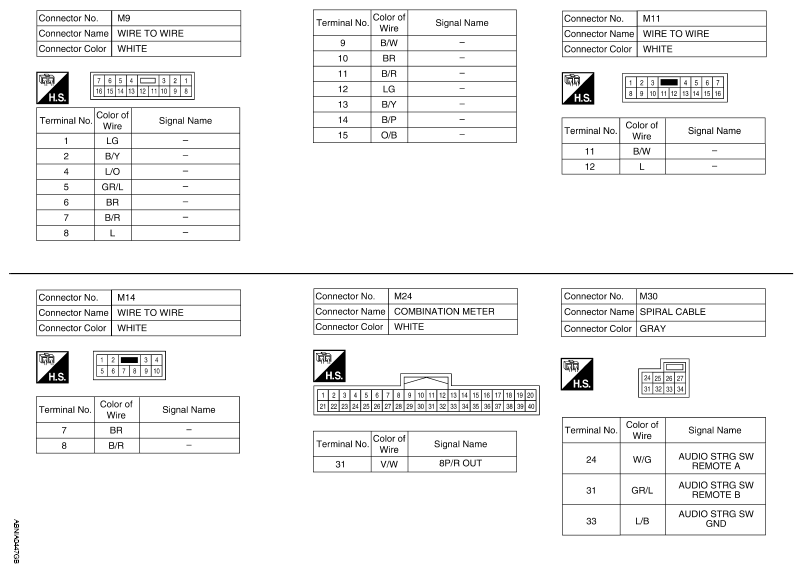

Fig 4: Bose Audio System Connectors Chart (1 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Bose Audio System Connectors Chart (2 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Bose Audio System Connectors Chart (3 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Bose Audio System Connectors Chart (4 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Bose Audio System Connectors Chart (5 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Bose Audio System Connectors Chart (6 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Bose Audio System Connectors Chart (7 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Bose Audio System Connectors Chart (8 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Bose Audio System Connectors Chart (9 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Bose Audio System Connectors Chart (10 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Bose Audio System Connectors Chart (11 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.
