Diagnosis Procedure

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. HARNESS CHECK
    1. Disconnect BOSE speaker amp. connector B110 and suspect tweeter connector.
    2. Check continuity between BOSE speaker amp. harness connector B110 (A) and suspect tweeter harness connector (B).
      CONNECTOR TERMINAL CONTINUITY CHART

      A B Continuity
      Connector Terminal Connector Terminal
      B110 1 M51 1 Yes
      2 2
      4 M52 1
      3 2

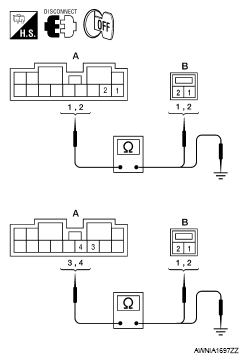

      Fig 1: Checking Continuity Between Bose Speaker Amp Harness Connector B110 And Suspect Tweeter Harness Connector
      G05885778Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between BOSE speaker amp. harness connector B110 (A) and ground.
    CONNECTOR TERMINAL CONTINUITY CHART

    A - Continuity
    Connector Terminal
    B110 1 Ground No
    2
    4
    3

    Are continuity test results as specified?

    YES: GO TO 2.

    NO:

    • Check connector housings for disconnected or loose terminals.
    • Repair harness or connector.
  2. TWEETER SIGNAL CHECK
    1. Connect BOSE speaker amp. connector B110 and suspect tweeter connector.
    2. Turn ignition switch to ACC.
    3. Push POWER switch.
    4. Check the signal between BOSE speaker amp. harness connector B110 terminals with CONSULT-III or oscilloscope.
    CONNECTOR TERMINAL SIGNAL CHART

    Connector Terminals Condition Reference signal
    (+) (-)
    B110 1 2 Receive audio signal
    G05885779Courtesy of NISSAN MOTOR CO., U.S.A.
    4 3

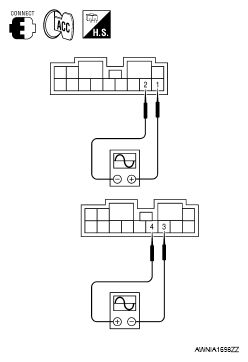

    Fig 2: Checking Signal Between Bose Speaker Amp Harness Connector B110 Terminals
    G05885780Courtesy of NISSAN MOTOR CO., U.S.A.

    Are the audio signal voltage readings as specified?

    YES: Replace suspect tweeter. Refer to "REMOVAL AND INSTALLATION ".

    NO: GO TO 3.

  3. HARNESS CHECK
    1. Disconnect audio unit connector M132 and BOSE speaker amp. connector B109.
    2. Check continuity between audio unit harness connector M132 (A) and BOSE speaker amp. harness connector B109 (B).
      CONNECTOR TERMINAL CONTINUITY CHART

      A B Continuity
      Connector Terminal Connector Terminal
      M132 2 B109 35 Yes
      3 36
      11 33
      12 34
    3. Check continuity between audio unit harness connector M132 (A) and ground.

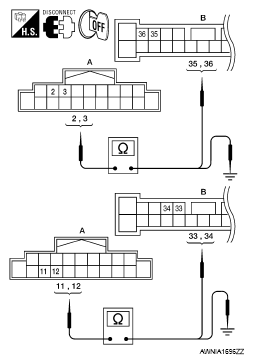

    Fig 3: Checking Continuity Between Audio Unit Harness Connector M132 And Ground
    G05885781Courtesy of NISSAN MOTOR CO., U.S.A.
    CONNECTOR TERMINAL CONTINUITY CHART

    A - Continuity
    Connector Terminal
    M132 2 Ground No
    3
    11
    12

    Are continuity test results as specified?

    YES: GO TO 4.

    NO:

    • Check connector housings for disconnected or loose terminals.
    • Repair harness or connector.
  4. TWEETER SIGNAL CHECK
    1. Connect audio unit connector and BOSE speaker amp. connector.
    2. Turn ignition switch ACC.
    3. Push POWER switch.
    4. Check the signal between audio unit harness connector terminals with CONSULT-III or oscilloscope.
    CONNECTOR TERMINAL SIGNAL CHART

    Connector Terminals Condition Reference signal
    (+) (-)
    M132 2 3 Receive audio signal
    G05885782Courtesy of NISSAN MOTOR CO., U.S.A.
    11 12

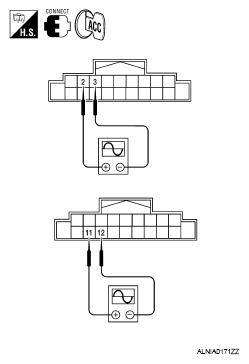

    Fig 4: Checking Signal Between Audio Unit Harness Connector Terminals
    G05885783Courtesy of NISSAN MOTOR CO., U.S.A.

    Are the audio signal voltage readings as specified?

    YES: Replace BOSE speaker amp. Refer to "REMOVAL AND INSTALLATION ".

    NO: Replace audio unit. Refer to "REMOVAL AND INSTALLATION ".
