Emission-Related Diagnostic Information Items

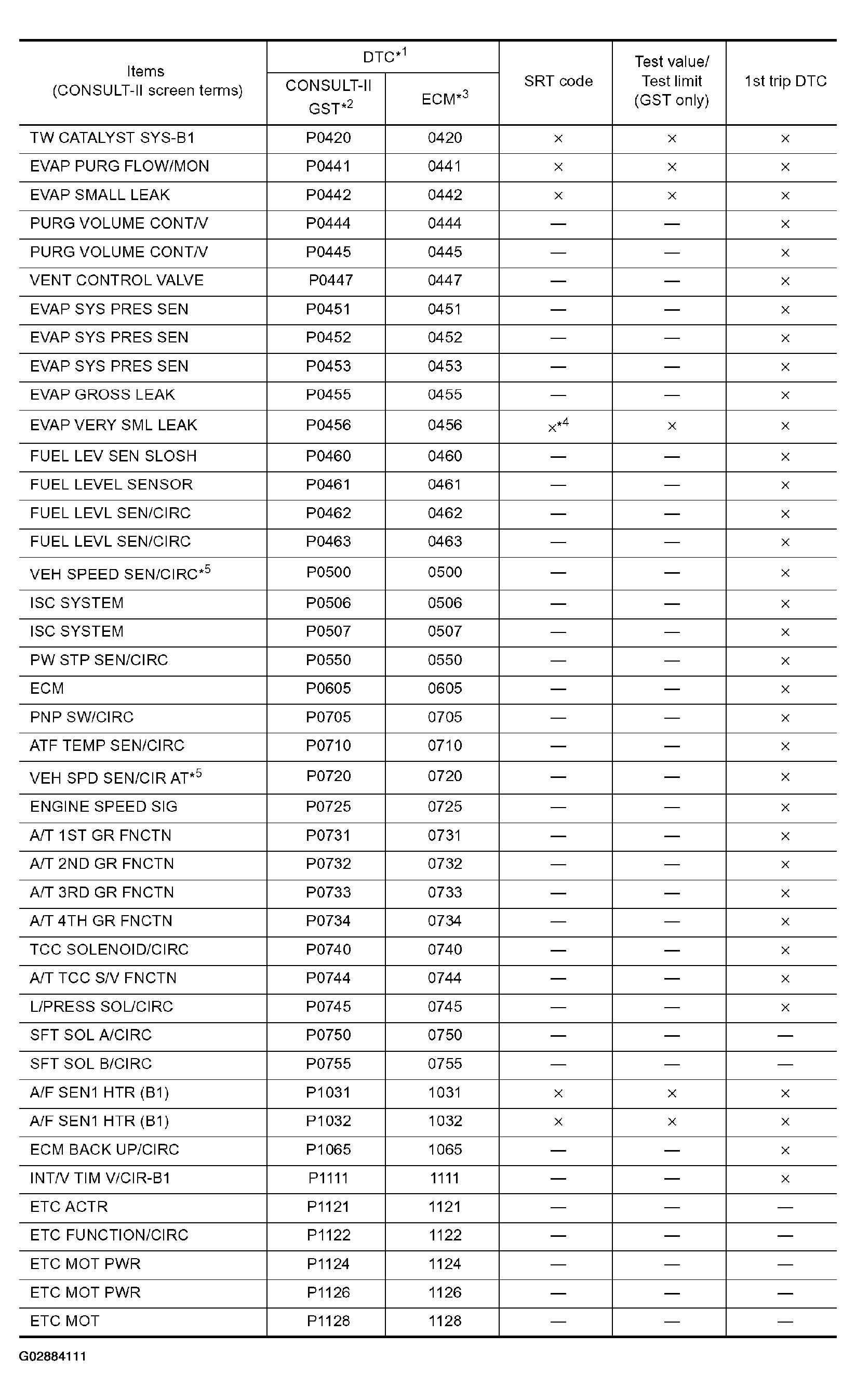

Fig 1: Emission-Related Diagnostic Information Items (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "Emission-Related Diagnostic Information Items (3 Of 3)" for footnote references.

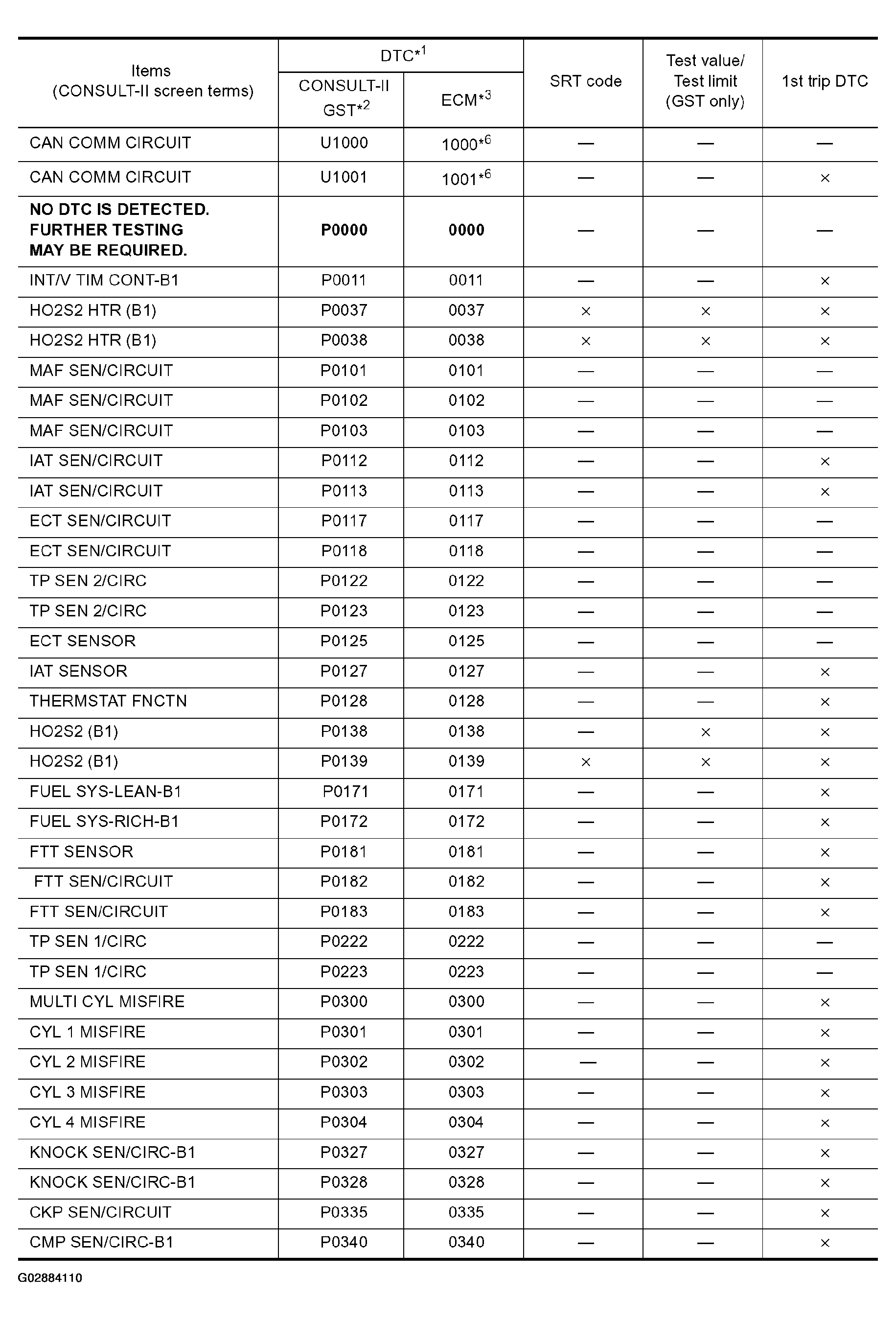

Fig 2: Emission-Related Diagnostic Information Items (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "Emission-Related Diagnostic Information Items (3 Of 3)" for footnote references.

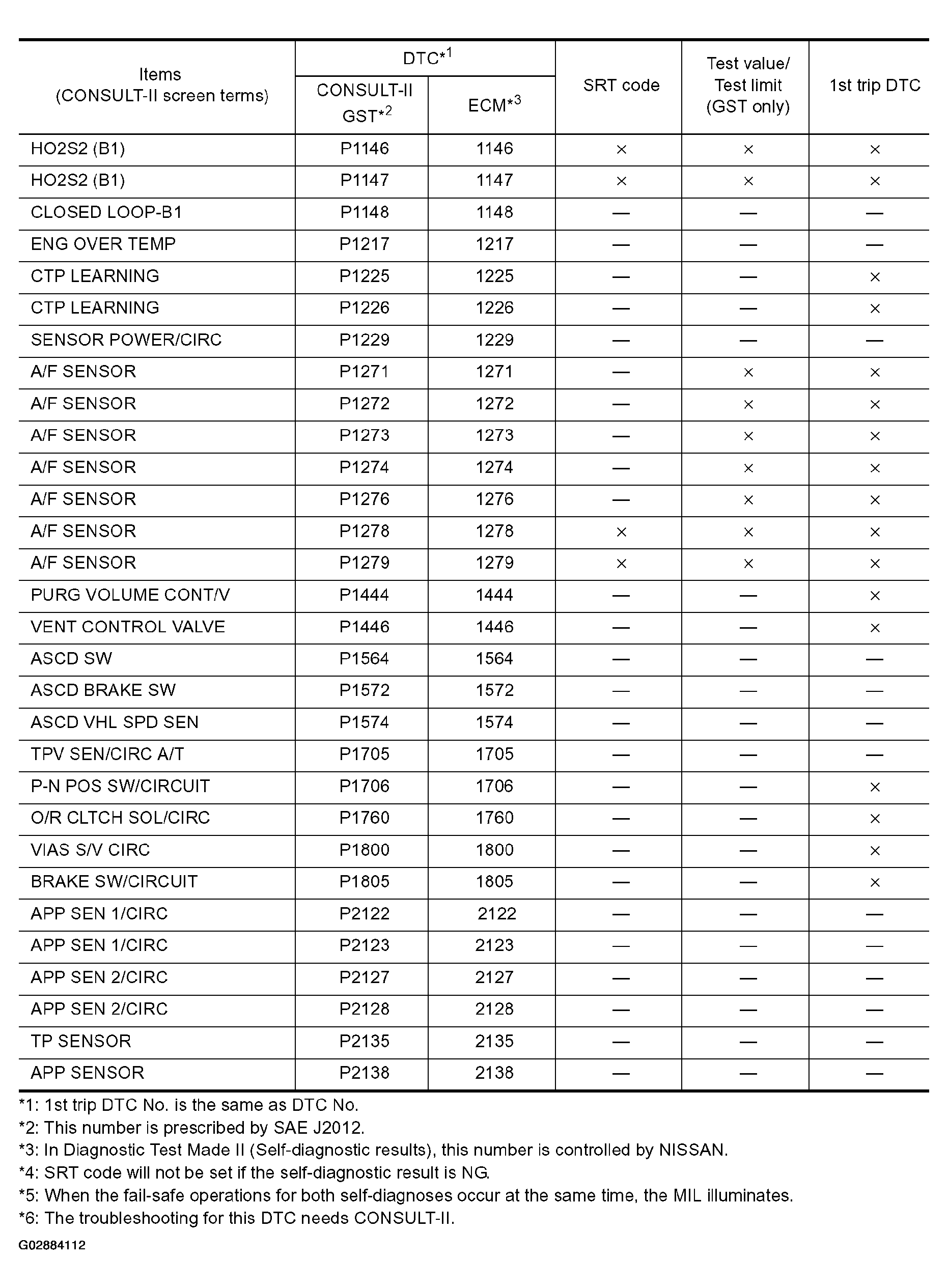

Fig 3: Emission-Related Diagnostic Information Items (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
