Diagnostic Procedure 2, Check "S" Terminal Circuit

1. For step 1, see Fig 1.
NOTE: For Work Flow, see WORK FLOW .
2. For step 2, see Fig 2.

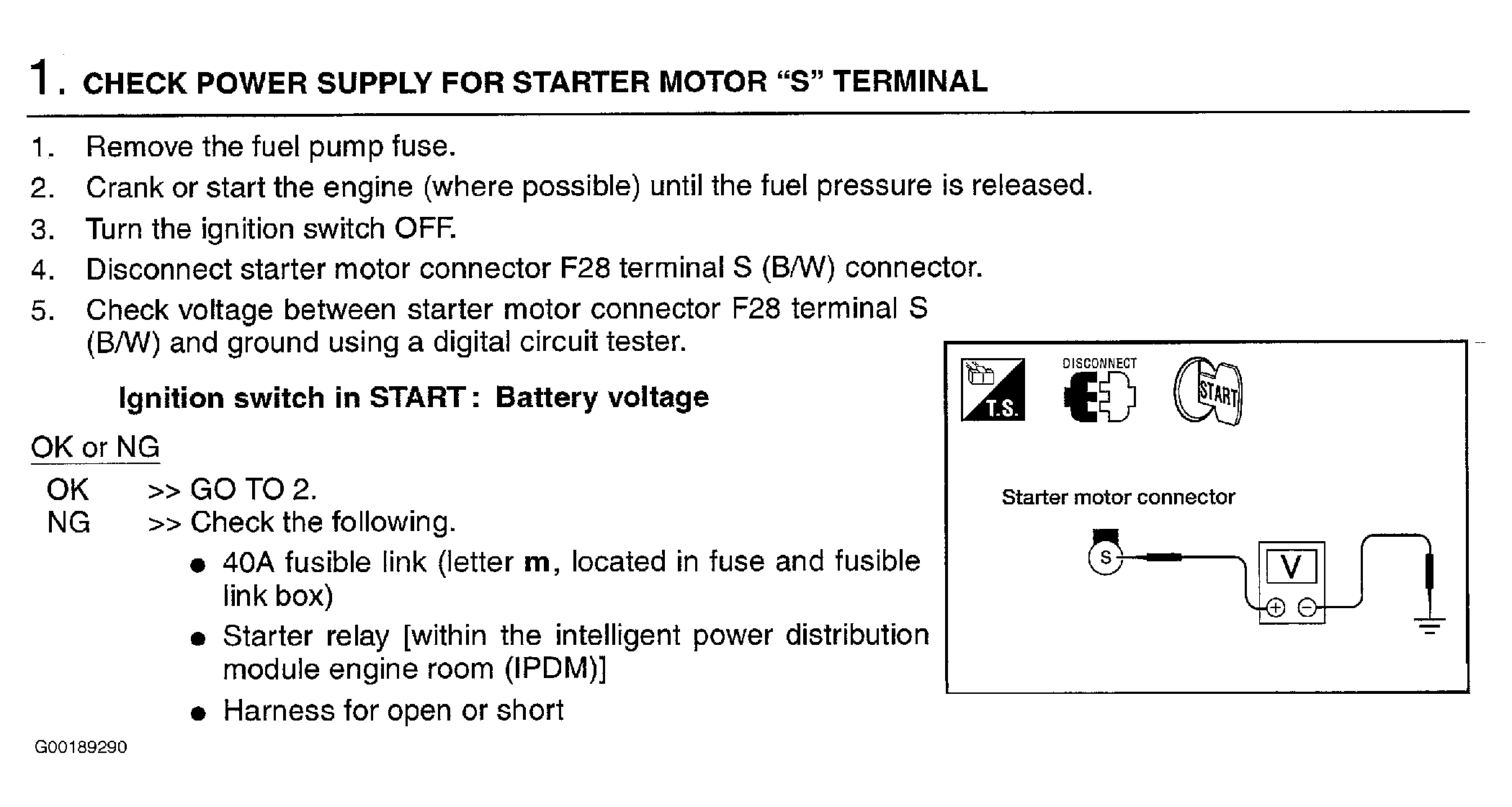

Fig 1: Identifying Diagnostic Procedure 2, Check "S" Terminal Circuit, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

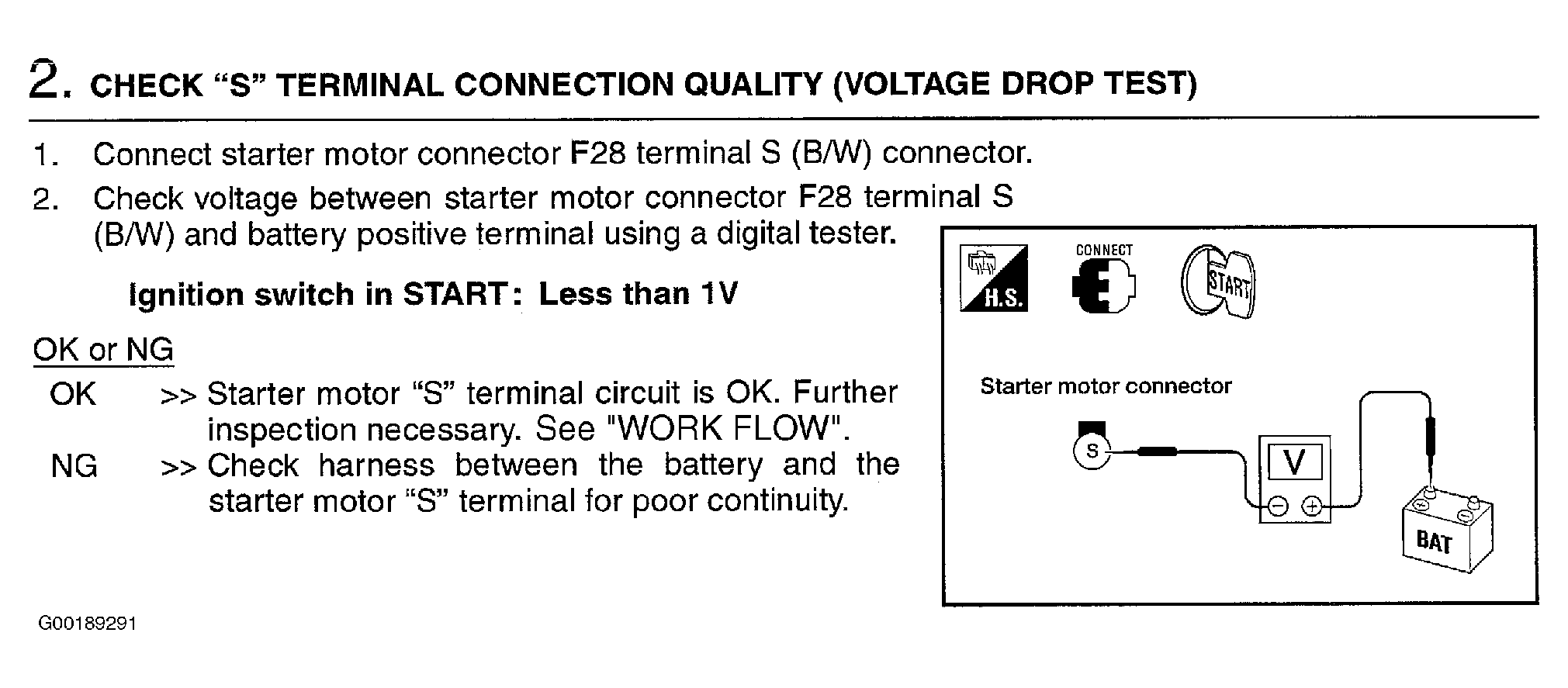

Fig 2: Identifying Diagnostic Procedure 2, Check "S" Terminal Circuit, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
