Wiring Diagram - CHIME -

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

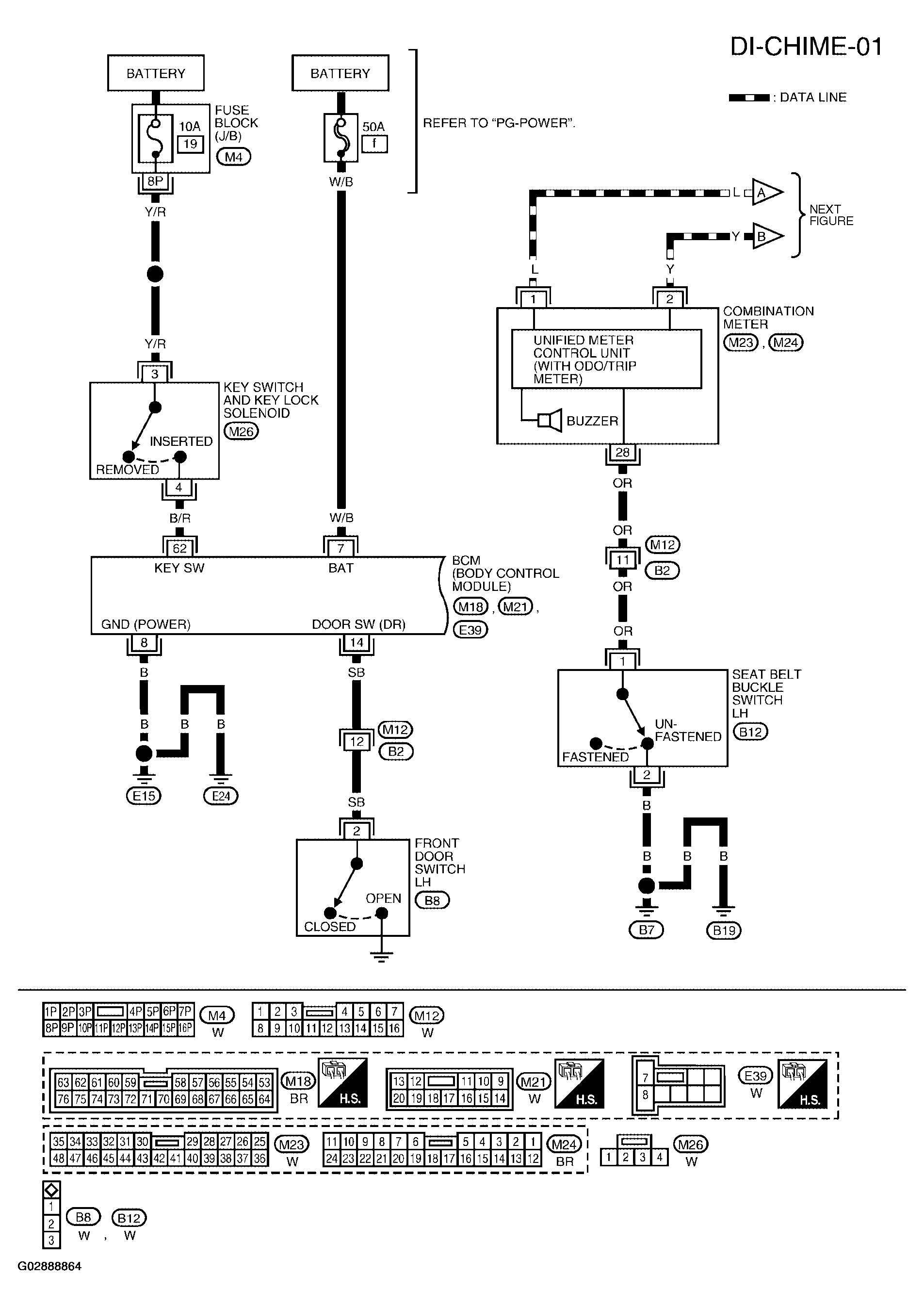

Fig 1: Wiring Diagram - DI-CHIME-01
G02888864Courtesy of NISSAN MOTOR CO., U.S.A.

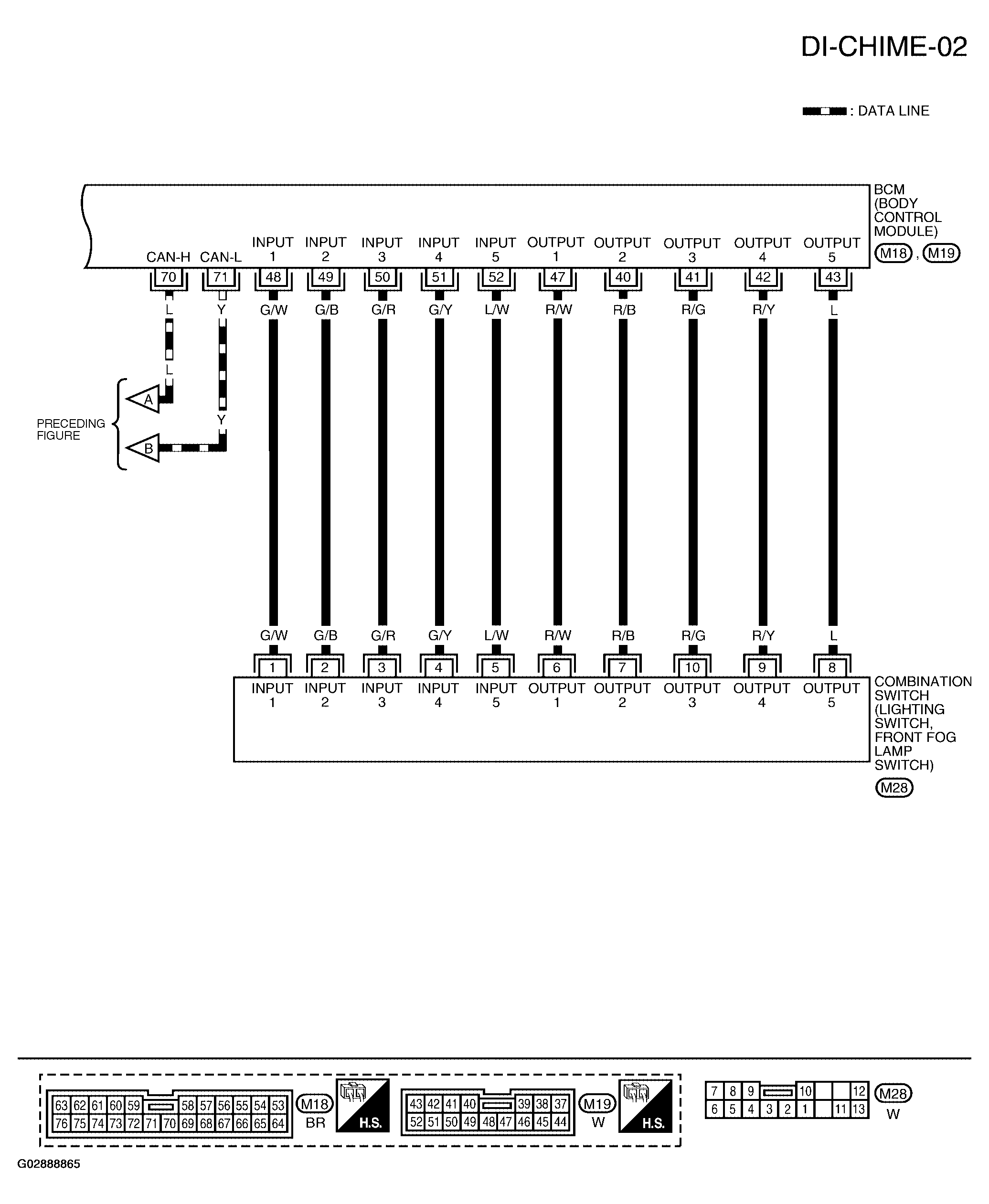

Fig 2: Wiring Diagram - DI-CHIME-02
G02888865Courtesy of NISSAN MOTOR CO., U.S.A.
