Cluster Lid A

  1. Remove instrument lower cover LH. Refer to, "INSTRUMENT LOWER COVER LH ".
  2. Pull toward rear of vehicle to release clips.
    • Disconnect indicator lamp sockets.
    • Installation is in the reverse order of removal.

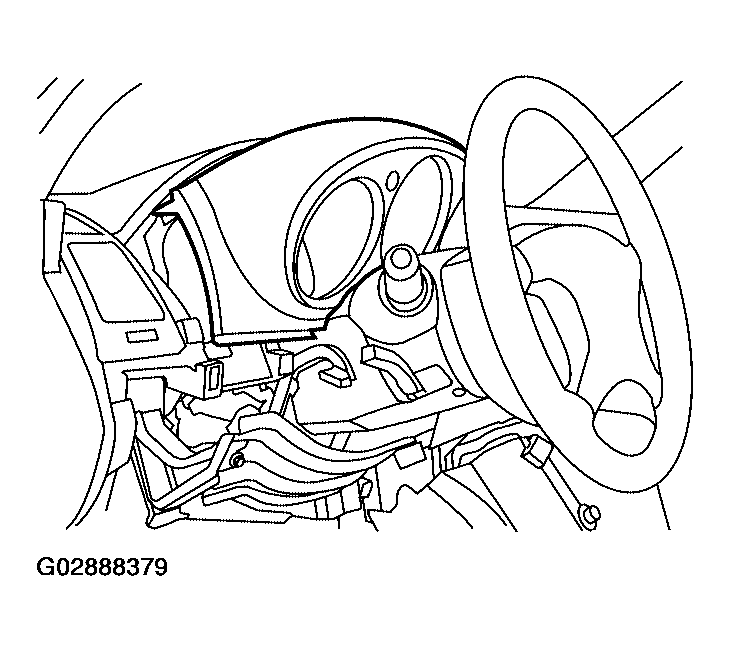

      Fig 1: Removing Instrument Lower Cover LH
      G02888379Courtesy of NISSAN MOTOR CO., U.S.A.
