Description
Clip And Fastener: Description
Clips and fasteners in EI section correspond to the following numbers and symbols.
Replace any clips and/or fasteners which are damaged during removal or installation.

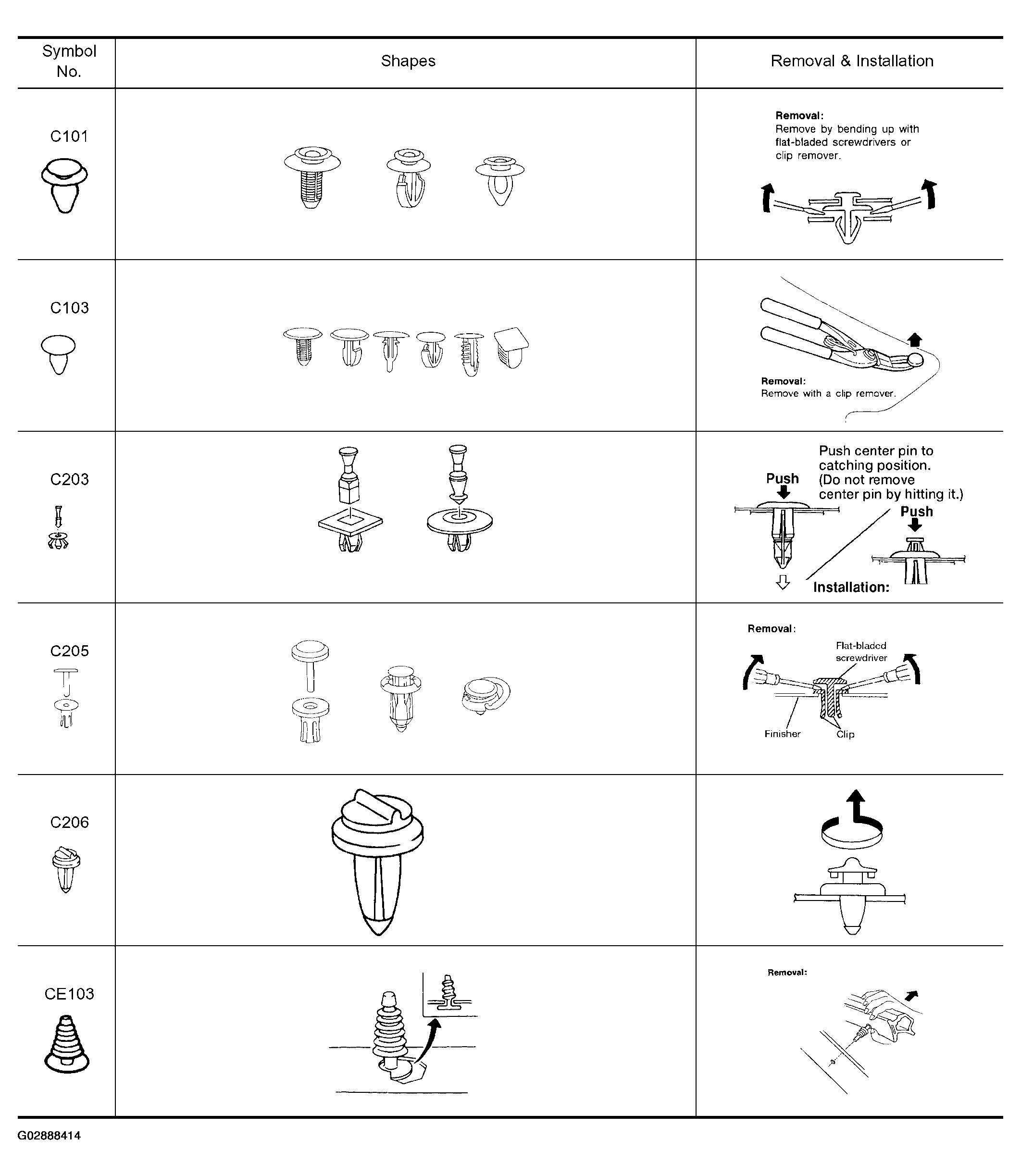

Fig 1: Clip & Fastener Symbol Number (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

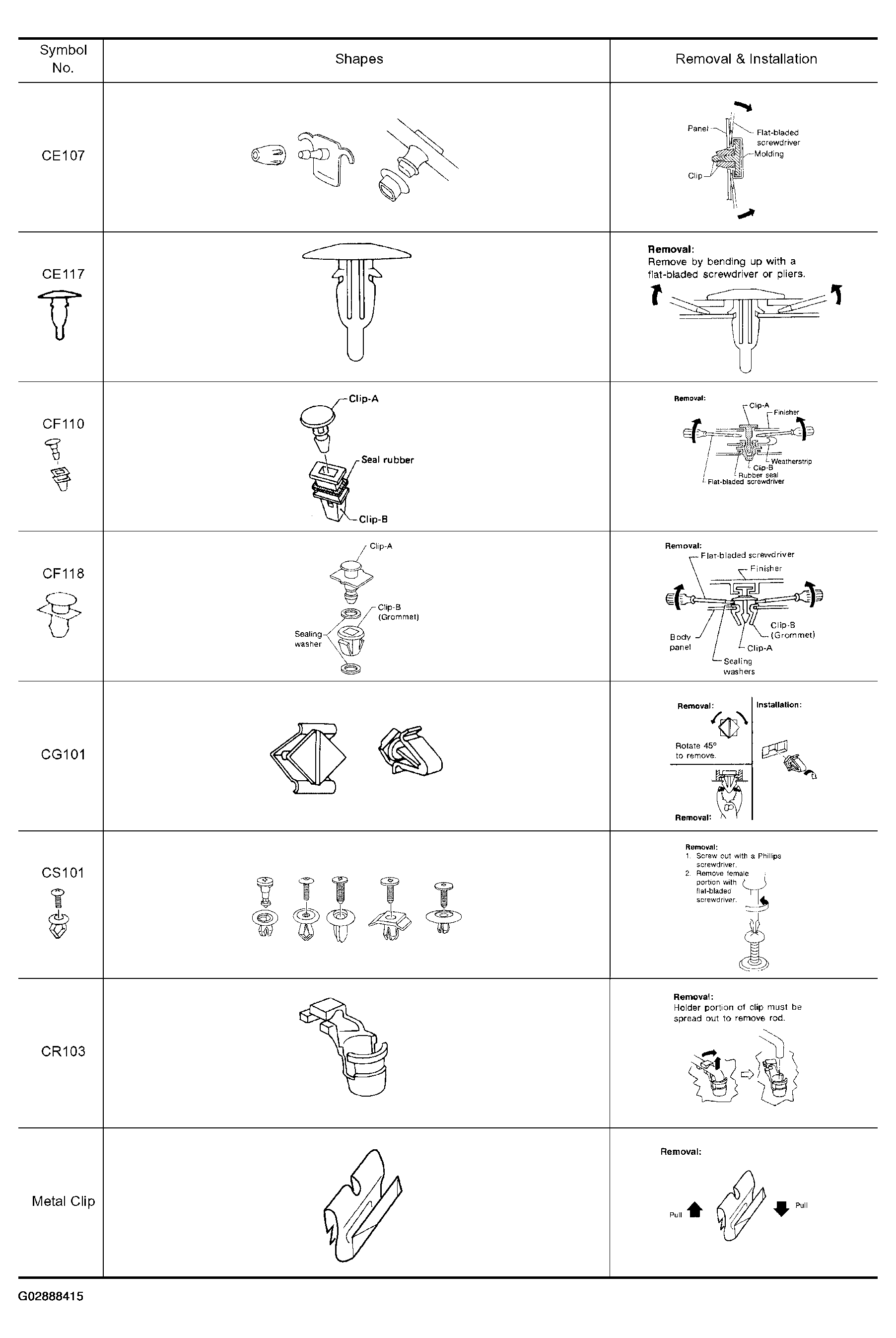

Fig 2: Clip & Fastener Symbol Number (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
