Terminals And Reference Value For BCM

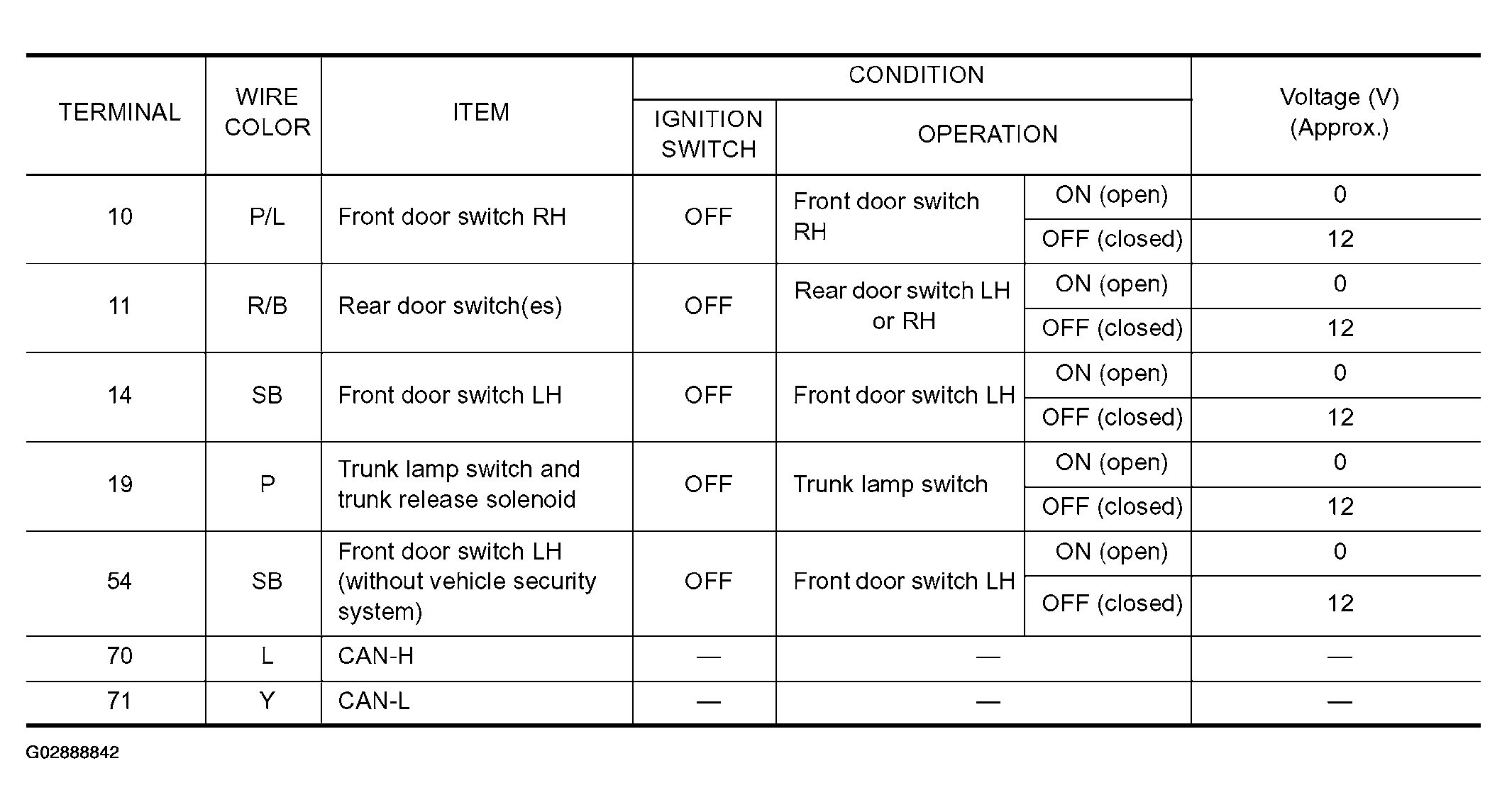

Fig 1: Terminals And Reference Value For BCM Table

G02888842

Courtesy of NISSAN MOTOR CO., U.S.A.
