Oil Pressure Switch

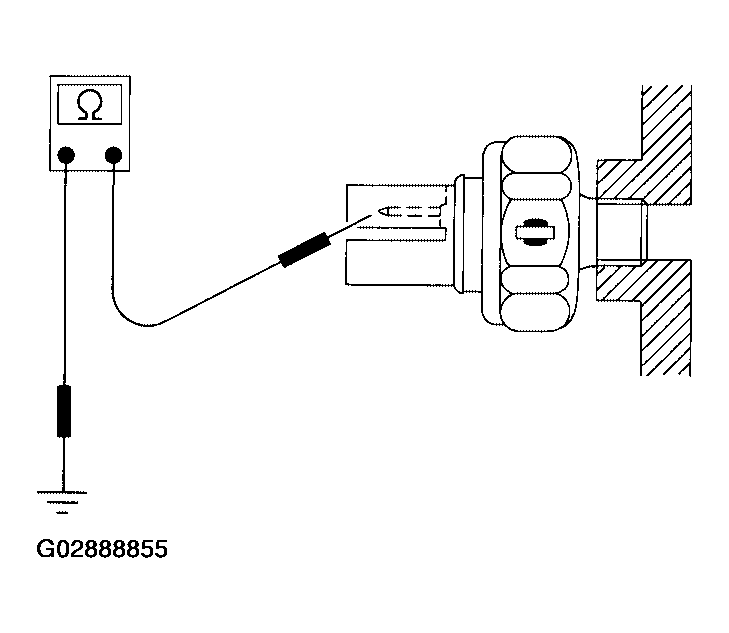

Check continuity between the oil pressure switch and body ground.
CONTINUITY CHART
| Condition |
Oil pressure kPa (kg/cm2
, psi) |
Continuity |
| Engine stopped |
Less than 29 (0.3, 4) |
Yes |
| Engine running |
More than 29 (0.3, 4) |
No |
Courtesy of NISSAN MOTOR CO., U.S.A.
