Self-Diagnosis Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and turn the ignition switch ON.

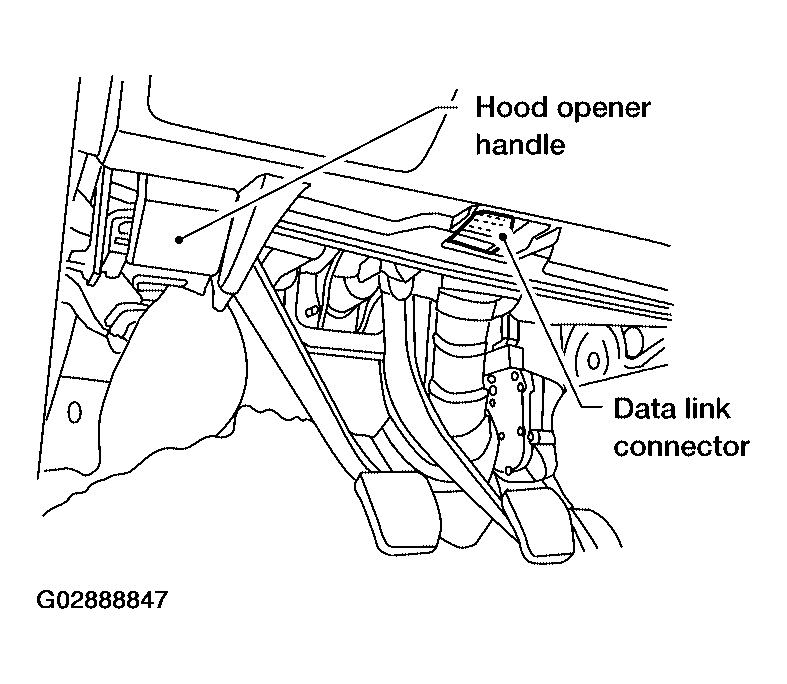

    Fig 1: Identifying Data Link Connector
    G02888847Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START"
    Fig 2: Scan Tool Display "CONSULT-II"
    G02888848Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Select the desired part to be diagnosed on the "SELECT SYSTEM" screen.
    NOTE: If "BCM" is selected, a further selection of "BCM C/U" must be selected before proceeding with the following step.
    Fig 3: Scan Tool Display "System Select"
    G02888849Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "SELF-DIAG RESULTS".
  5. Make the necessary repairs following the diagnostic procedures.
    Fig 4: Scan Tool Display "Select Diag Mode"
    G02888850Courtesy of NISSAN MOTOR CO., U.S.A.
  6. After the malfunctions are repaired, erase the self-diagnostic results stored in the control unit by touching "ERASE".
