Terminals and Reference Value for BCM

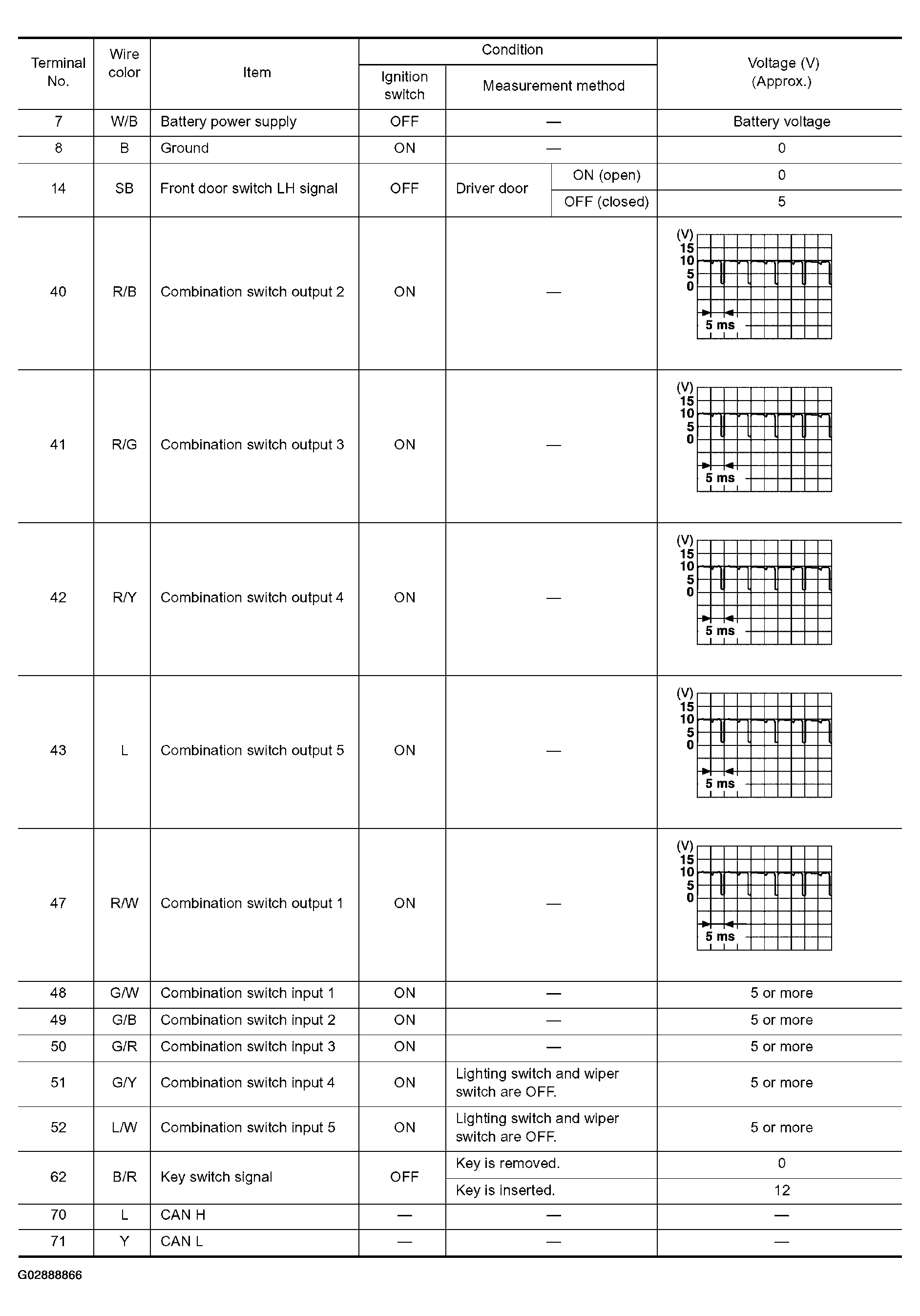

Fig 1: Terminals And Reference Value For BCM Chart

G02888866

Courtesy of NISSAN MOTOR CO., U.S.A.
