Consult-II Basic Operation Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and turn the ignition switch ON.

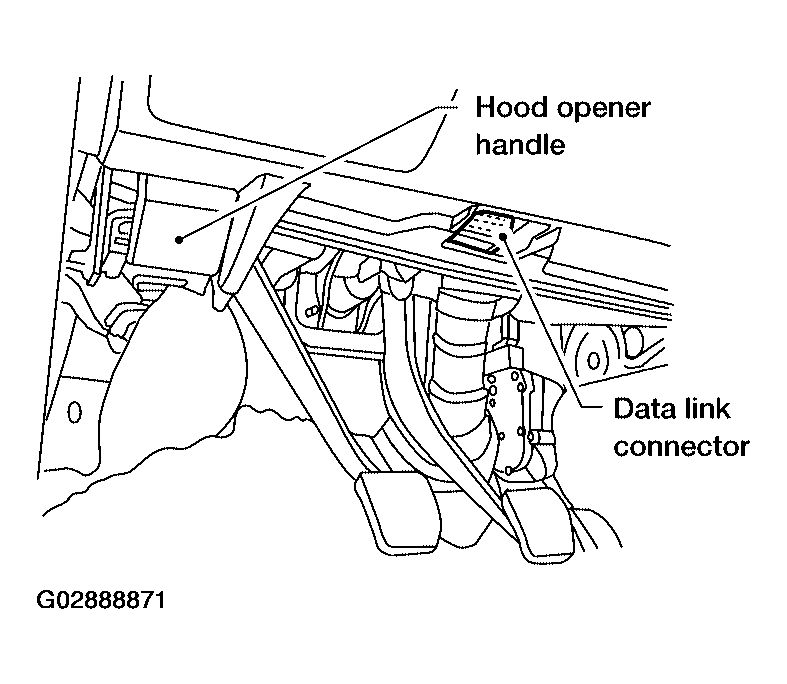

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START.

Fig 2: Scan Tool Display "Consult II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM.

Fig 3: Scan Tool Display "Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "KEY WARN ALM LIGHT WARN ALM SEAT BELT ALM or "BCM C/U.
Select "DATA MONITOR "ACTIVE TEST or "SELF-DIAG RESULTS.

Fig 4: Scan Tool Display "Select Test Item
