Home >> Nissan-Datsun >> 2004 >> Altima S, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel >> Instrument Panel Assembly >> Removal and Installation >> Notes

Removal and Installation: Notes

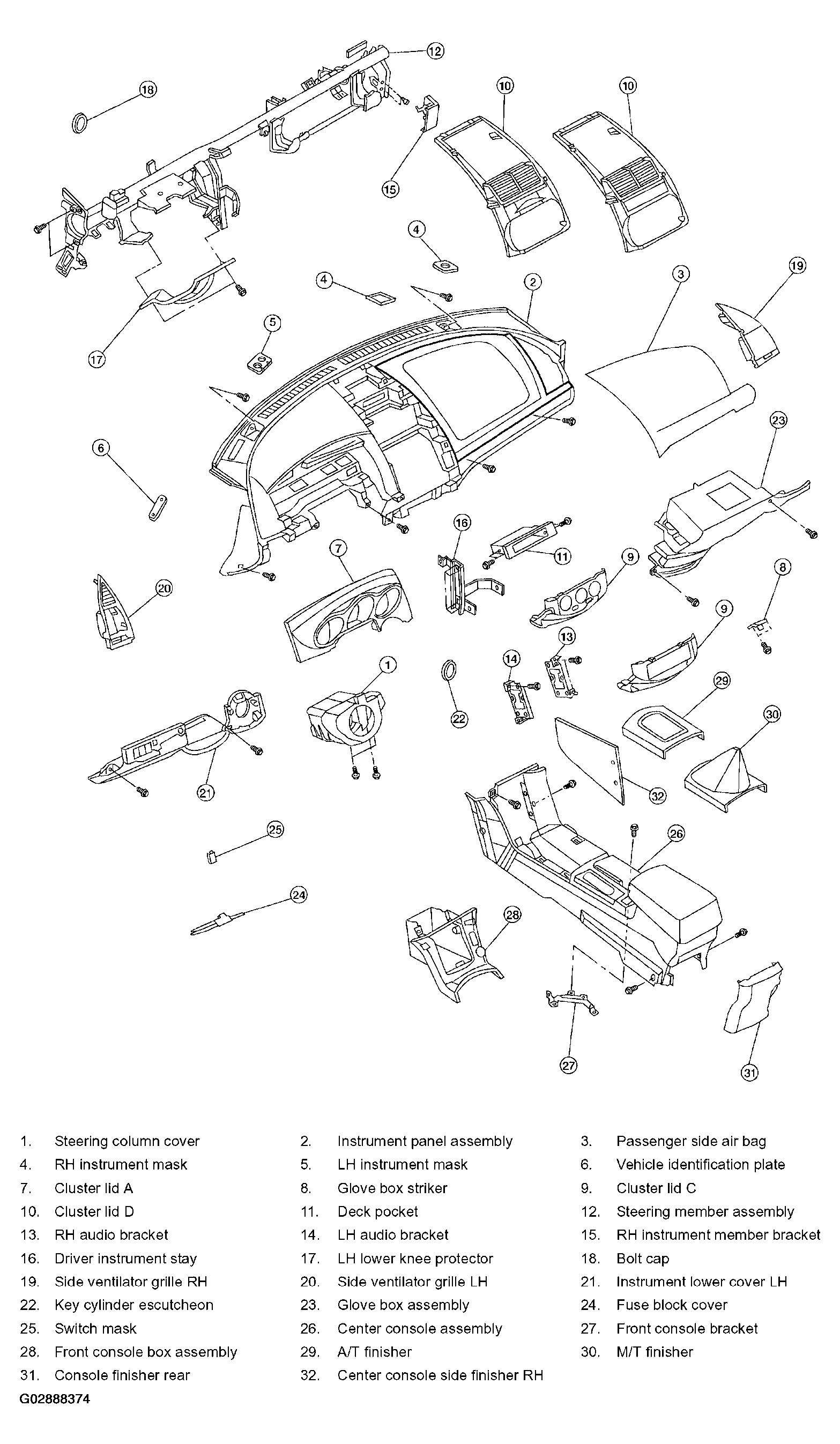

Fig 1: Instrument Panel Assembly

G02888374

Courtesy of NISSAN MOTOR CO., U.S.A.
