Instrument Lower Cover LH

  1. Remove cluster lid C. Refer to, "CLUSTER LID C ".
  2. Remove fuse box cover.

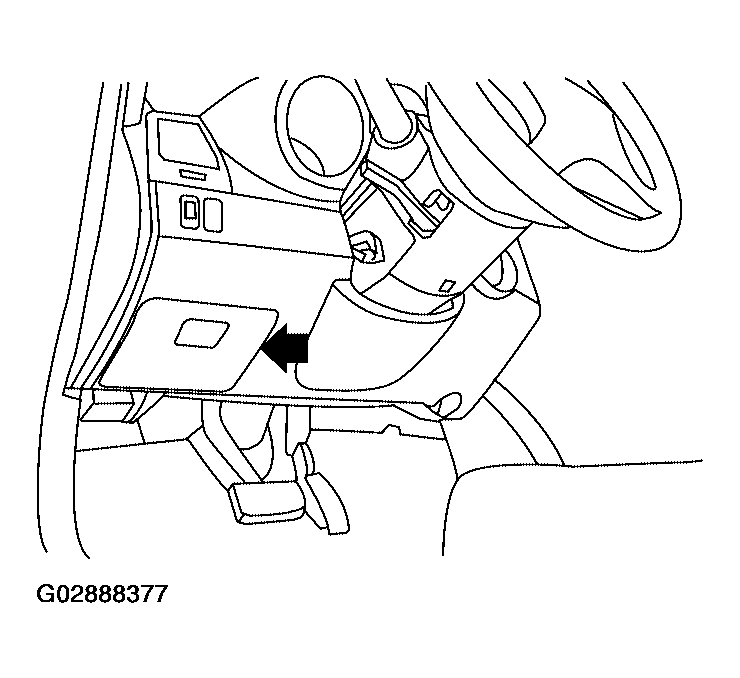

    Fig 1: Removing Fuse Box Cover
    G02888377Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws using power tool, and instrument lower cover LH.
    • Pull to disconnect clips.
  4. Installation is in the reverse order of removal.

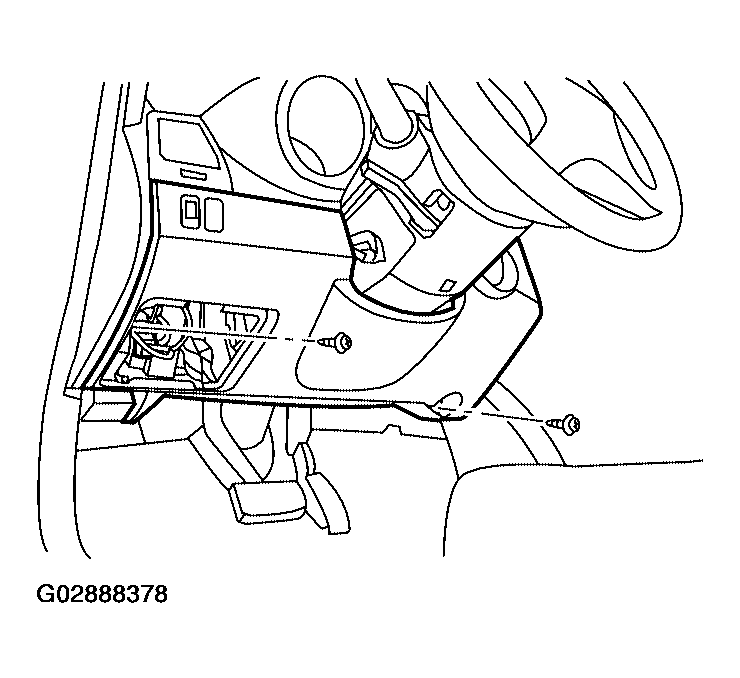

    Fig 2: Removing Screws Using Power Tool
    G02888378Courtesy of NISSAN MOTOR CO., U.S.A.
