Glove Box Assembly

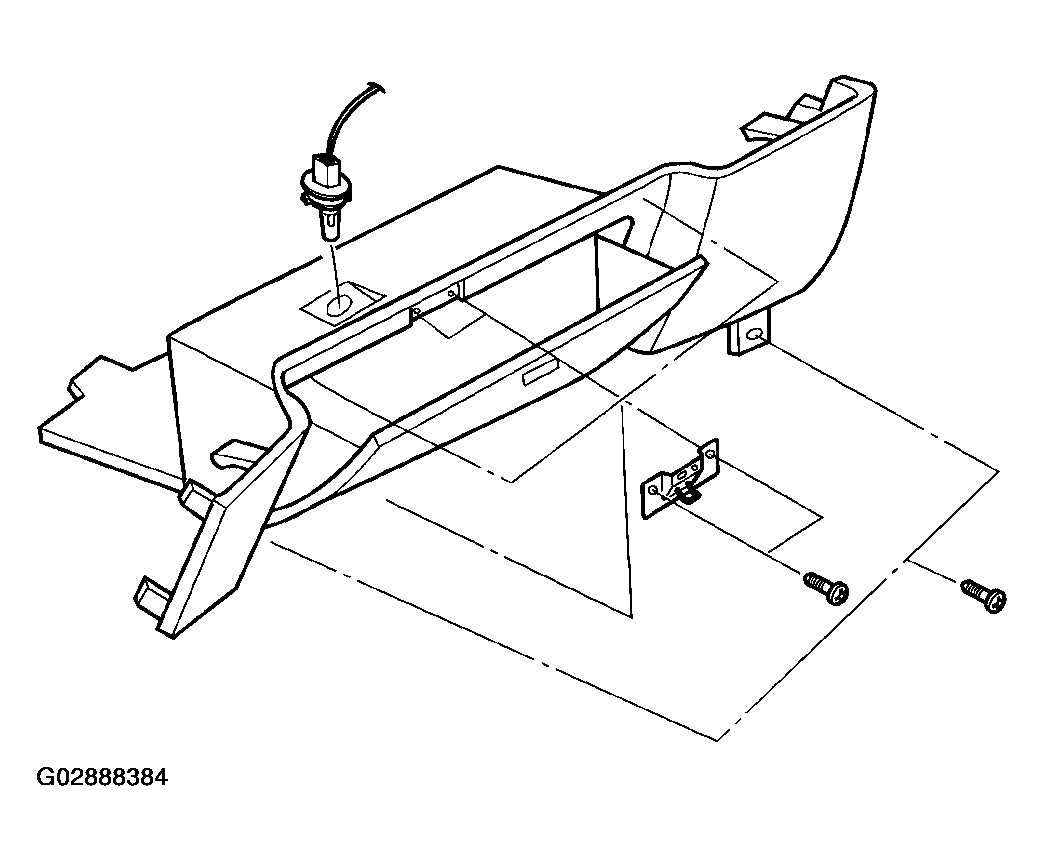

Fig 1: Removing Glove Box Assembly & Screw
G02888384Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws from glove box striker and glove box assembly using power tool.
  2. Pull glove box assembly towards rear of car to release clips.
  3. Disconnect lamp socket, and remove glove box assembly.
  4. Installation is in the reverse order of removal.
