Center Console Assembly

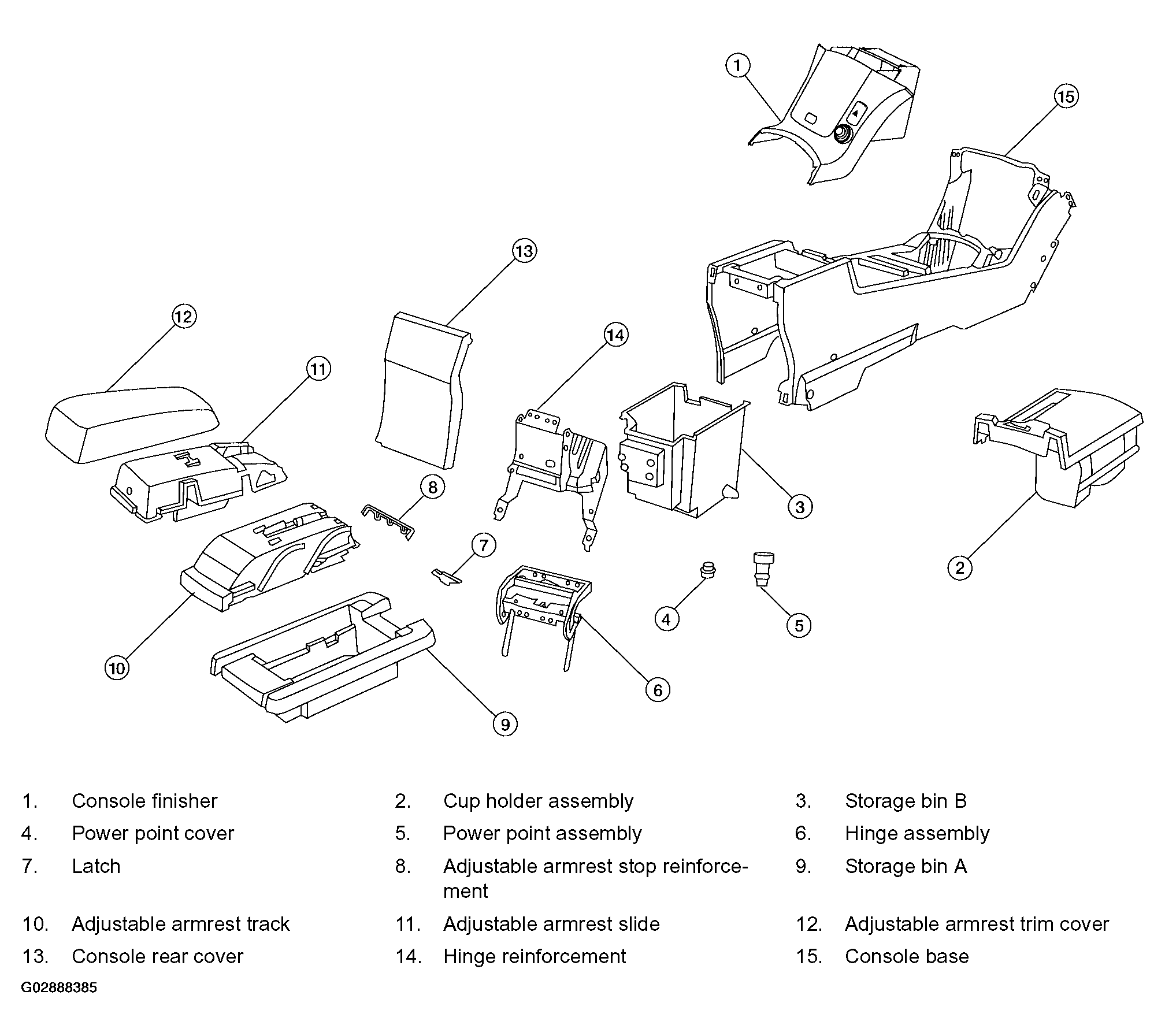

Fig 1: Identifying Center Console Assembly
G02888385Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove center console assembly. Refer to, "WORK STEPS ".
  2. Remove cup holder assembly.
  3. Remove armrest assembly.
  4. Remove adjustable armrest track.
  5. Separate adjustable armrest slide from adjustable armrest track.
  6. Separate adjustable armrest trim cover from adjustable armrest slide.
  7. Remove storage bin A.
  8. Remove hinge assembly.
  9. Remove hinge reinforcement and storage bin B.
  10. Separate hinge reinforcement from storage bin B.
  11. Remove power point from storage bin B.
  12. Assembly is in the reverse order of disassembly.
