Cluster Lid D

  1. Remove cluster lid C. Refer to, "CLUSTER LID C ".
  2. Remove cluster lid D.
    • Remove screw using power tool.
    • Pull lid toward rear of vehicle to release clips.
  3. Installation is in the reverse order of removal.

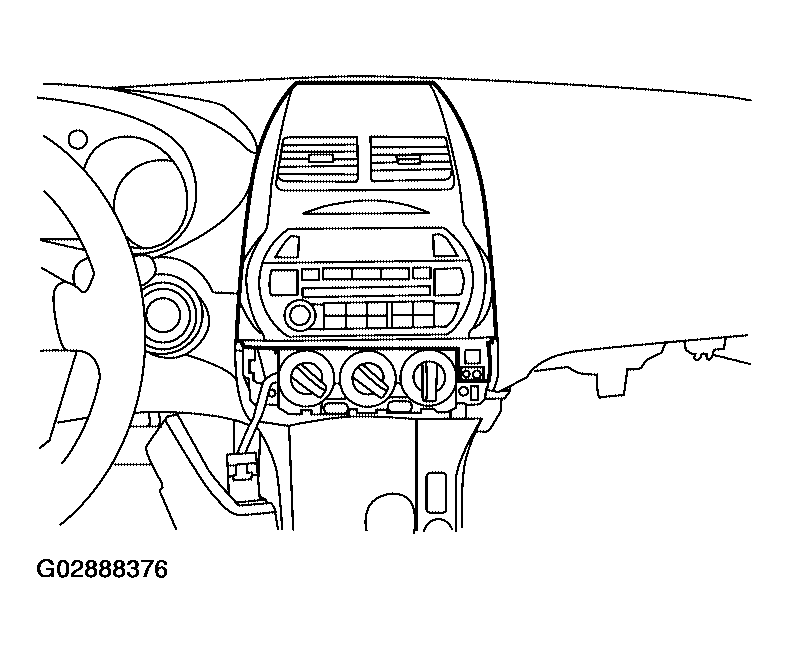

    Fig 1: Removing Cluster Lid D
    G02888376Courtesy of NISSAN MOTOR CO., U.S.A.
