Hazard Lamp Does Not Operate

Check each turn signal lamp bulb to make sure correct bulbs are installed.

OK or NG

1. OK : GO TO 2.
2. NG : Replace bulb.

Select "BCM" on CONSULT-II. Use "FLASHER" data monitor to verify that "HAZARD SW" turns ON-OFF according to operation of hazard switch.

OK or NG

1. OK : GO TO  5 .
2. NG : GO TO 3.

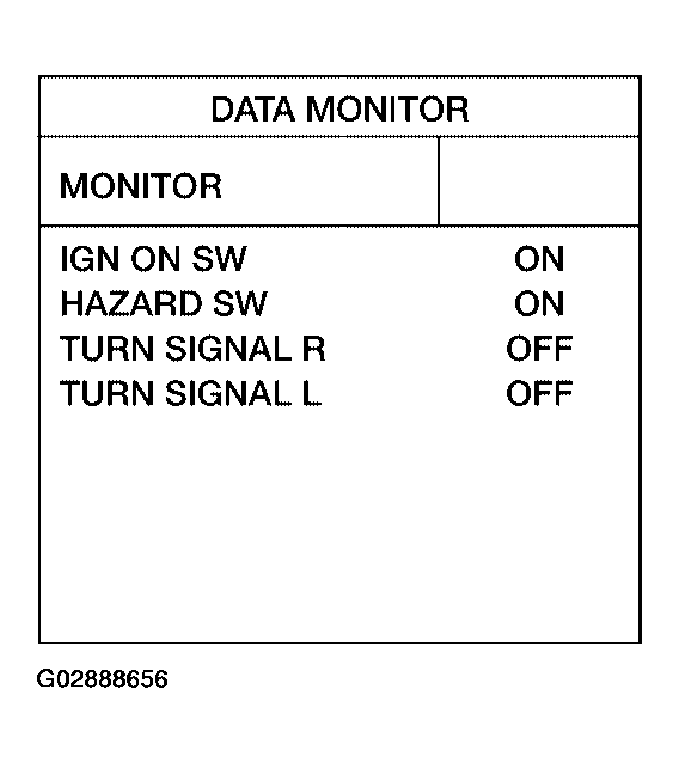

   Fig 1: Scan Tool Display "Data Monitor"

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect BCM connector and hazard switch connector.
2. Check continuity between harness connector terminal of BCM and harness connector terminal of hazard switch.

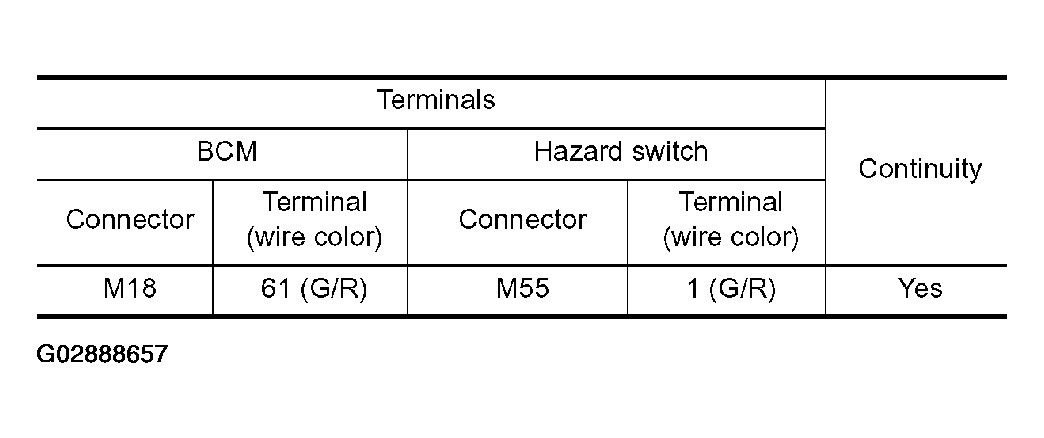

   Fig 2: BCM Terminal Specifications (Hazard Switch)

   Courtesy of NISSAN MOTOR CO., U.S.A.

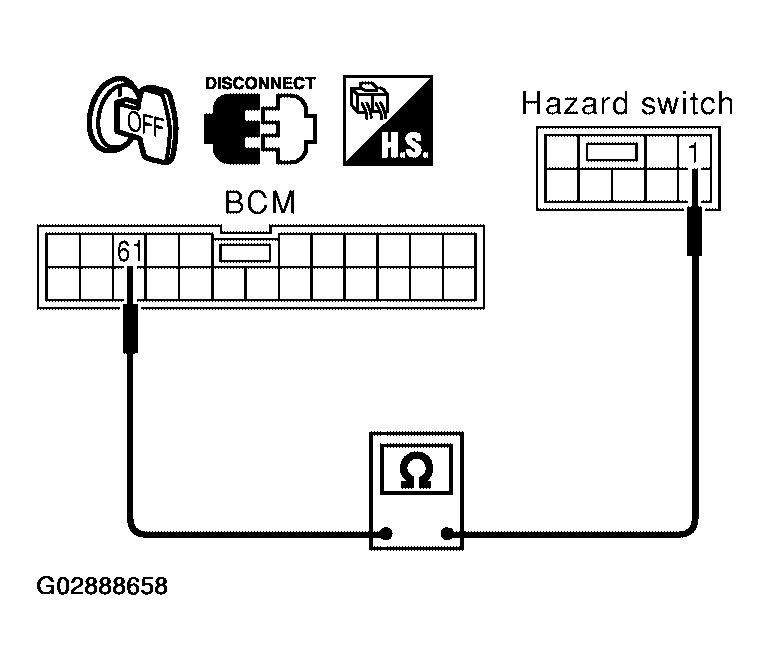

   Fig 3: BCM Continuity Test (Hazard Switch)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Connect connectors. GO TO 4.
2. NG : Check for short circuit or open circuit in harness between BCM and hazard switch. Repair as necessary.

Check voltage between BCM terminal and body ground.

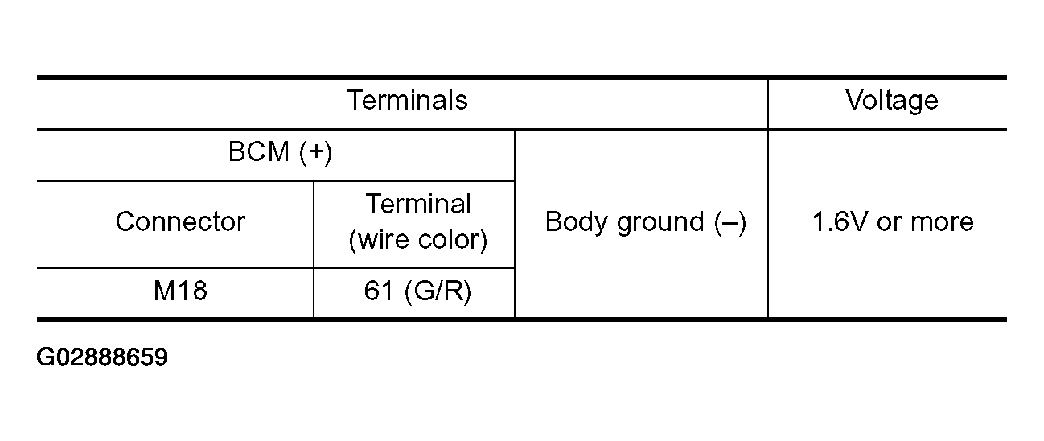

Fig 4: BCM Terminal Specification (Positive)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Replace hazard switch. Refer to, "REMOVAL AND INSTALLATION ".
2. NG : Replace BCM.

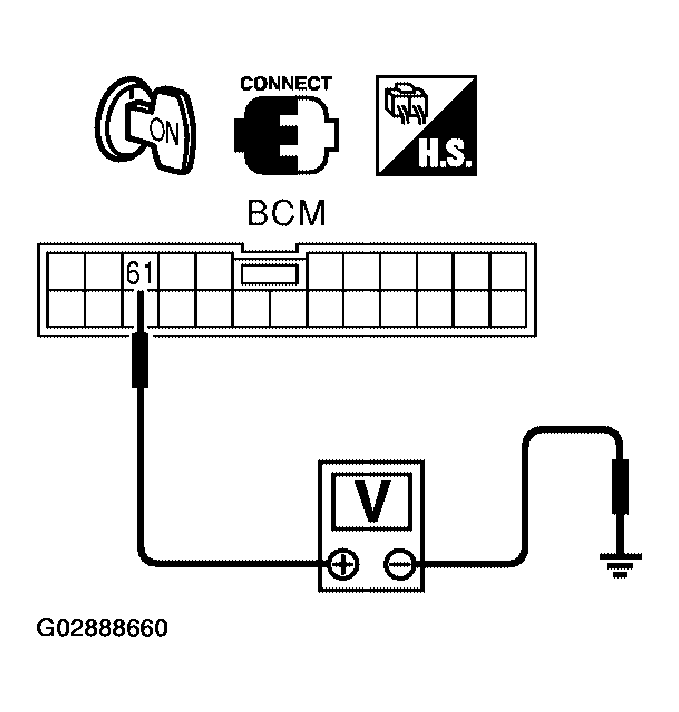

   Fig 5: BCM Terminal and Ground Voltage Test

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Select "BCM" on CONSULT-II. Select "FLASHER" active test.
2. Check that "FLASHER RIGHT" and "FLASHER LEFT" operate.

OK or NG

1. OK : Replace BCM.
2. NG : GO TO 6.

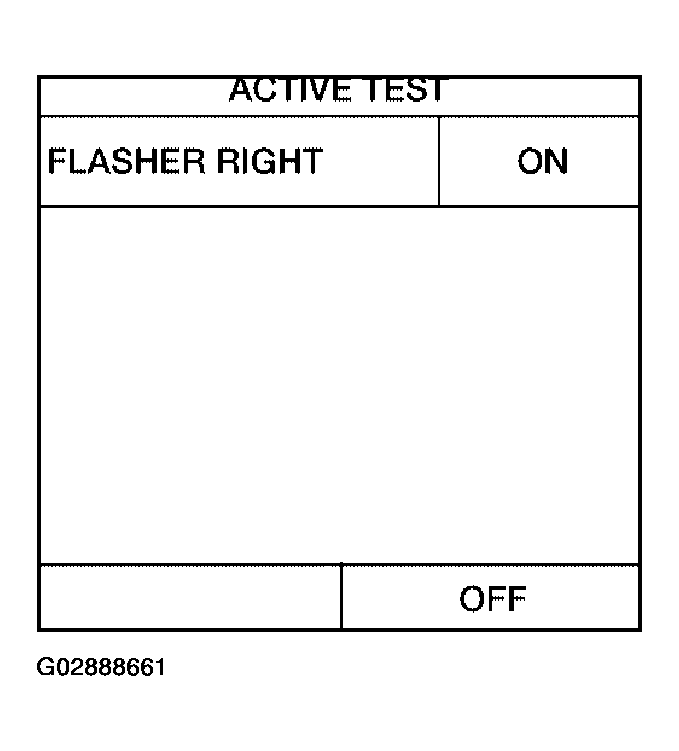

   Fig 6: Scan Tool Display "Active Test"

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect BCM connector and all turn signal lamp connectors.
2. Check continuity between harness connectors of BCM and body ground.

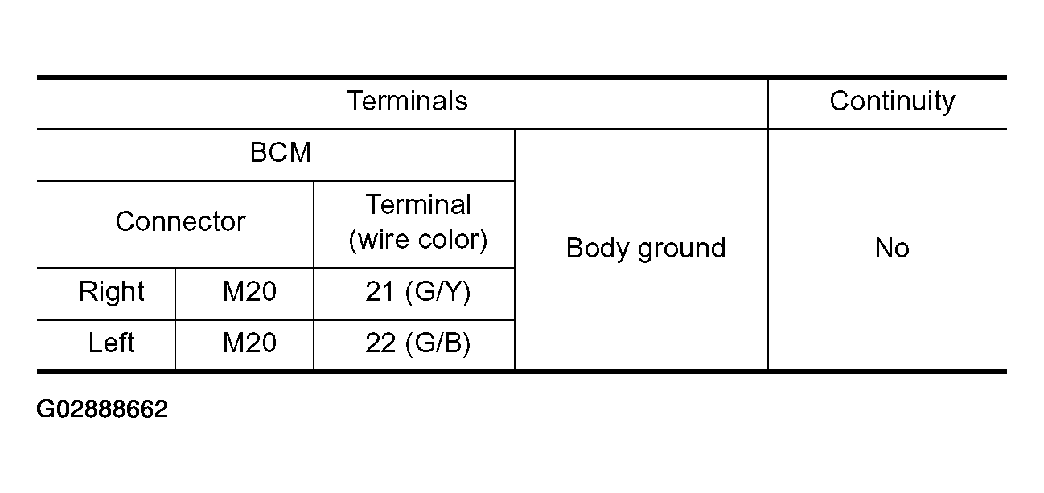

   Fig 7: BCM Terminal Specification (Turn Signal Lamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Replace BCM.
2. NG : Check for short circuit in harnesses between BCM and each turn signal. Repair as necessary.

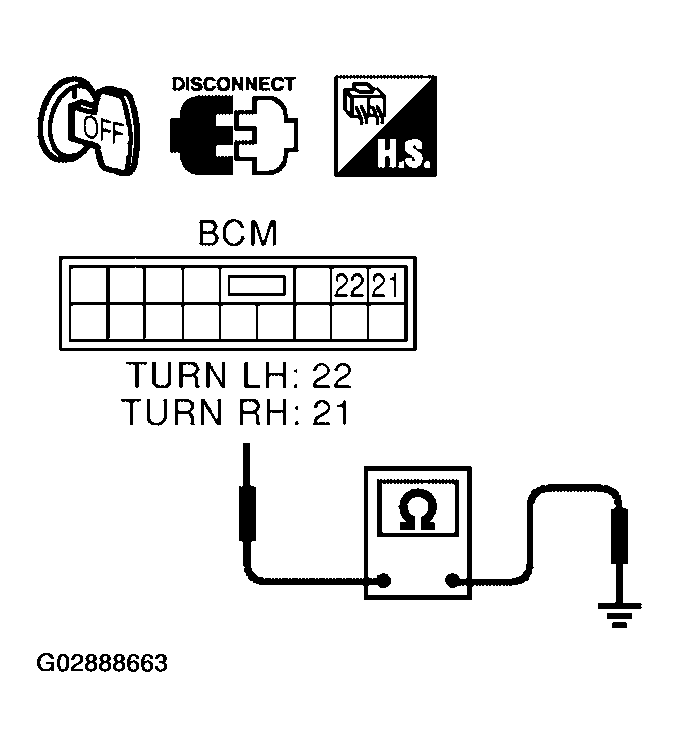

   Fig 8: BCM Continuity Test (Turn Signal Lamp)

   Courtesy of NISSAN MOTOR CO., U.S.A.
