Wiring Diagram - ROOM/L -

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

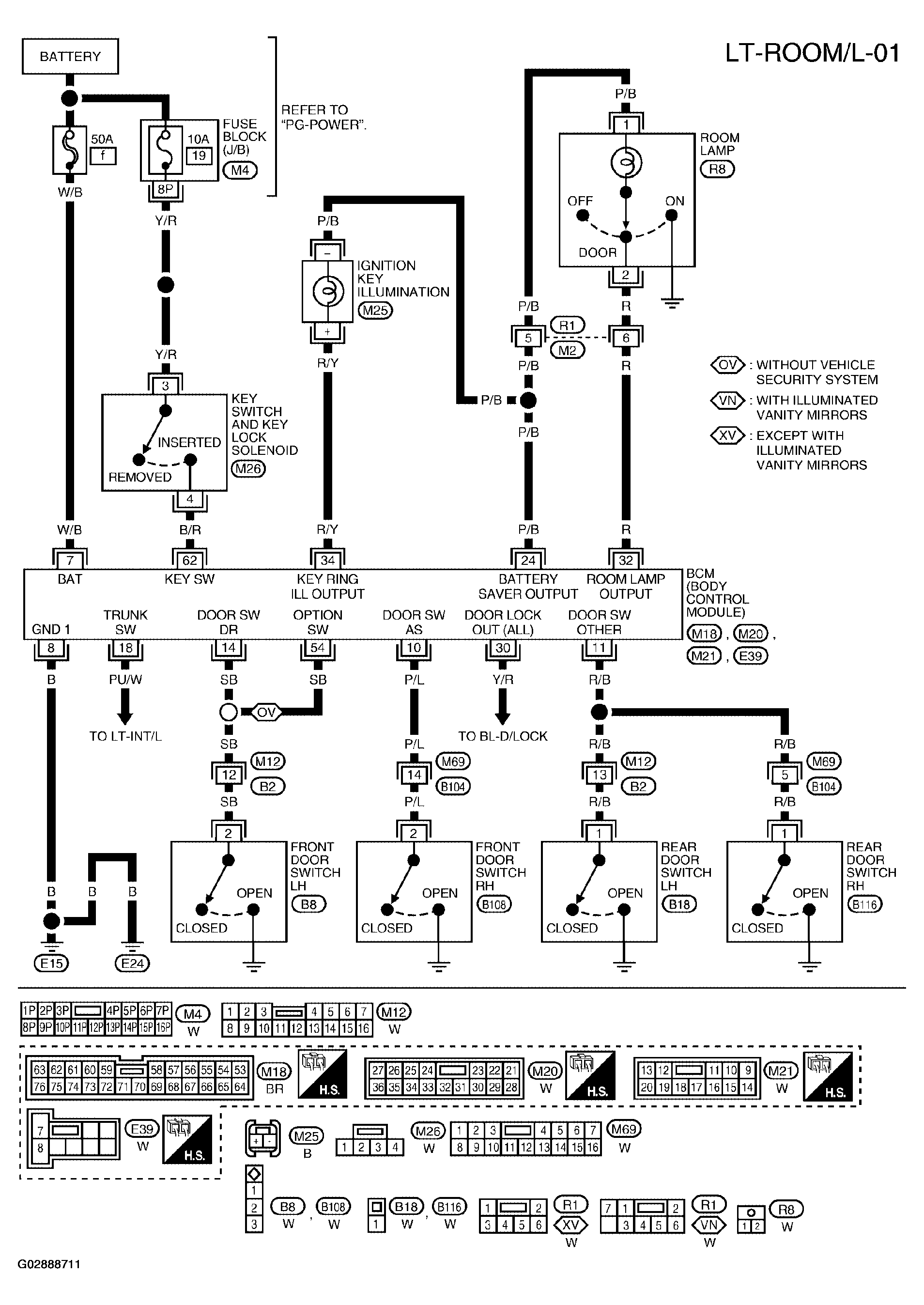

Fig 1: Wiring Diagram - LT-ROOM/L-01

G02888711

Courtesy of NISSAN MOTOR CO., U.S.A.
