Terminals and Reference Value for BCM

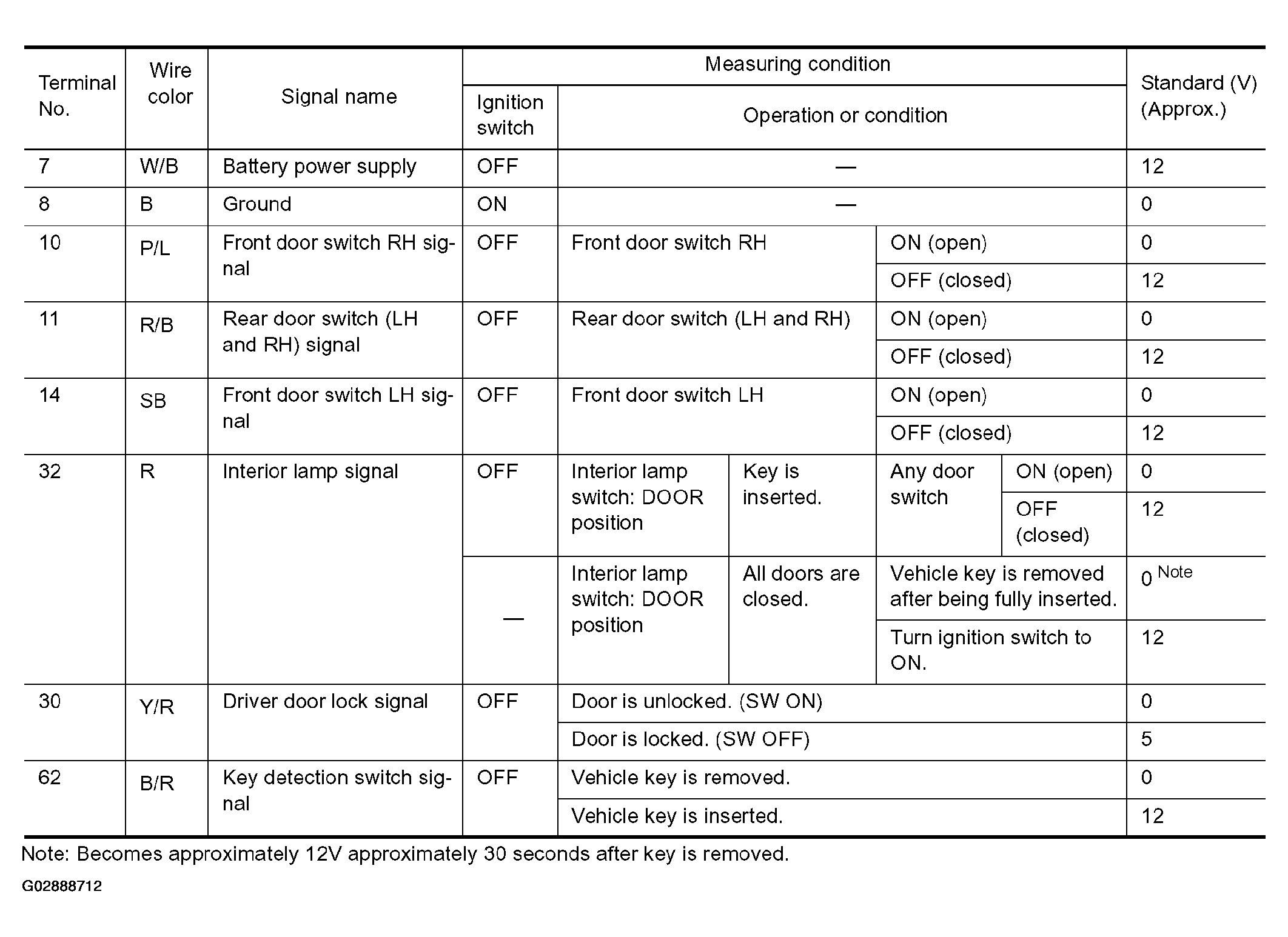

Fig 1: Terminals And Reference Value BCM Chart

G02888712

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Becomes approximately 12V approximately 30 seconds after key is removed.
