Interior Lamp Control Does Not Operate

Check bulbs.

OK or NG

1. OK : GO TO 2.
2. NG : Replace bulbs.

Select "BCM" on CONSULT-II. Use "INT LAMP" data monitor to check that switches listed in display item list turn ON-OFF linked with switch operation. Refer to DISPLAY ITEM LIST  for switches and their functions.

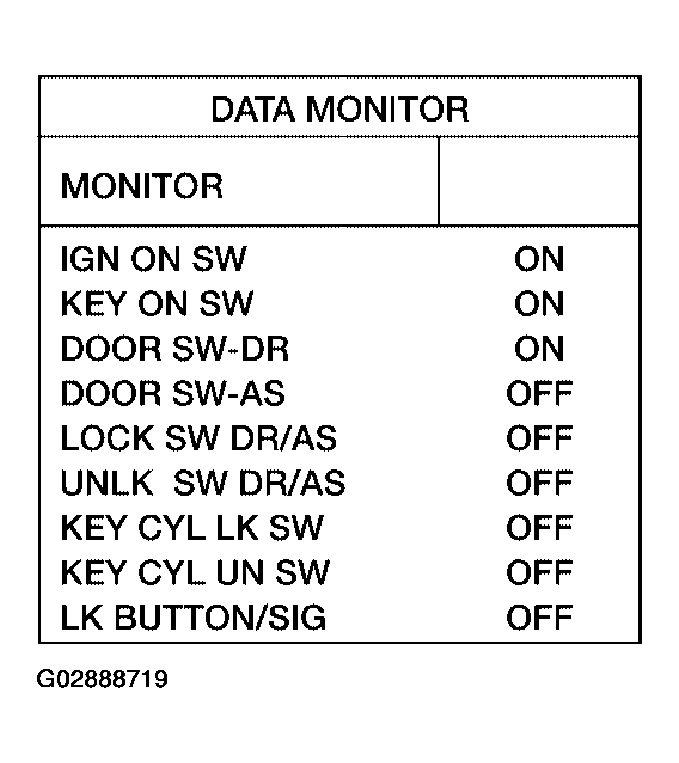

Fig 1: Data Monitor Display Item List

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : GO TO 3.
2. NG : Inspect malfunctioning switch system and repair as necessary.

1. Select "BCM" on CONSULT-II. Select "INT LAMP" active test.
2. When room lamp switch is in DOOR position, use active test to verify that room lamp operates.

OK or NG

1. OK : Replace BCM.
2. NG : GO TO 4.
   Fig 2: Inspecting Between BCM And Room Lamp

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect BCM connector and room lamp connector.
2. Check for continuity in wiring harness between BCM and room lamp.
   Fig 3: BCM And Room Lamp Terminal Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 4: Checking Continuity In Wiring Harness Between BCM And Room Lamp

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Replace BCM.
2. NG : Check for short circuit or open circuit in harness between BCM and room lamp. Repair as necessary.
