CONSULT-II Function (BCM): Notes

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

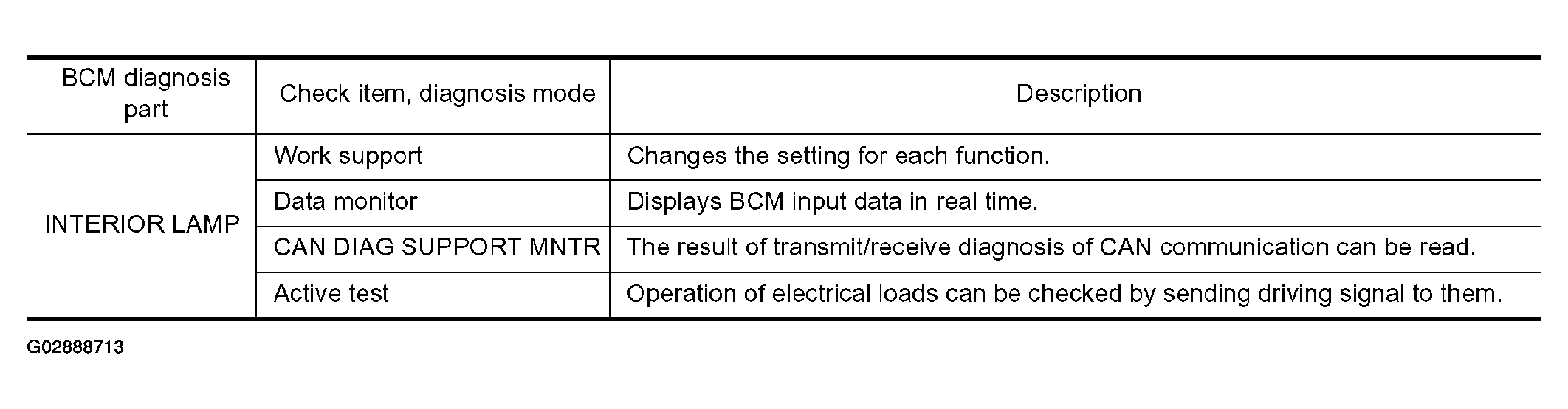

Fig 1: Consult-II Function (BCM) Chart

G02888713

Courtesy of NISSAN MOTOR CO., U.S.A.
