Without CONSULT-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

When disconnecting each injector harness connector one at a time, is there any cylinder which does not produce a momentary engine speed drop?

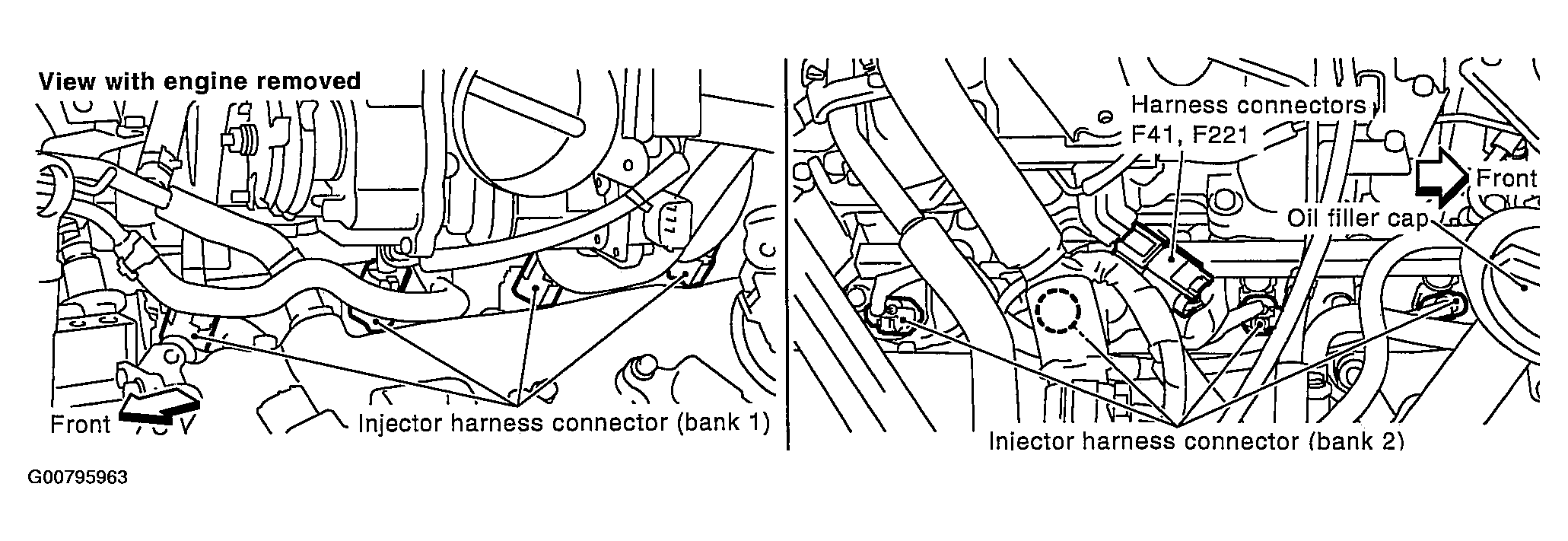

Fig 1: Identifying Injector Harness Connectors
G00795963Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

  1. Yes: GO TO 4.
  2. No: GO TO 7. CHECK COMPRESSION PRESSURE .
