Outer Diameter of Valve Lifter
Measure the outer diameter of the valve lifter.

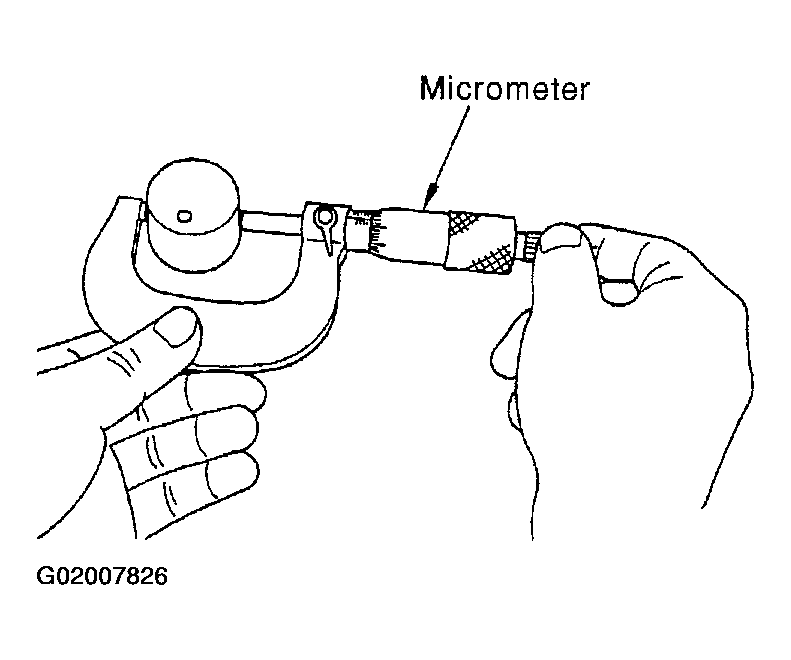

Fig 1: Measuring Outer Diameter Of Valve Lifter
Courtesy of NISSAN MOTOR CO., U.S.A.
Valve lifter outer diameter: 33.965 - 33.980 mm (1.3372 - 1.3378 in) outer diameter
If out of the specified range, replace the valve lifter.
Courtesy of NISSAN MOTOR CO., U.S.A.
