Body & Frame
>>
Door Locks
>>
NVIS (NISSAN Vehicle Immobilizer System-NATS)
>>
NVIS (NISSAN Vehicle Immobilizer System - NATS)
>>
Wiring Diagram - NATS -
>>
Notes
Wiring Diagram - NATS -: Notes

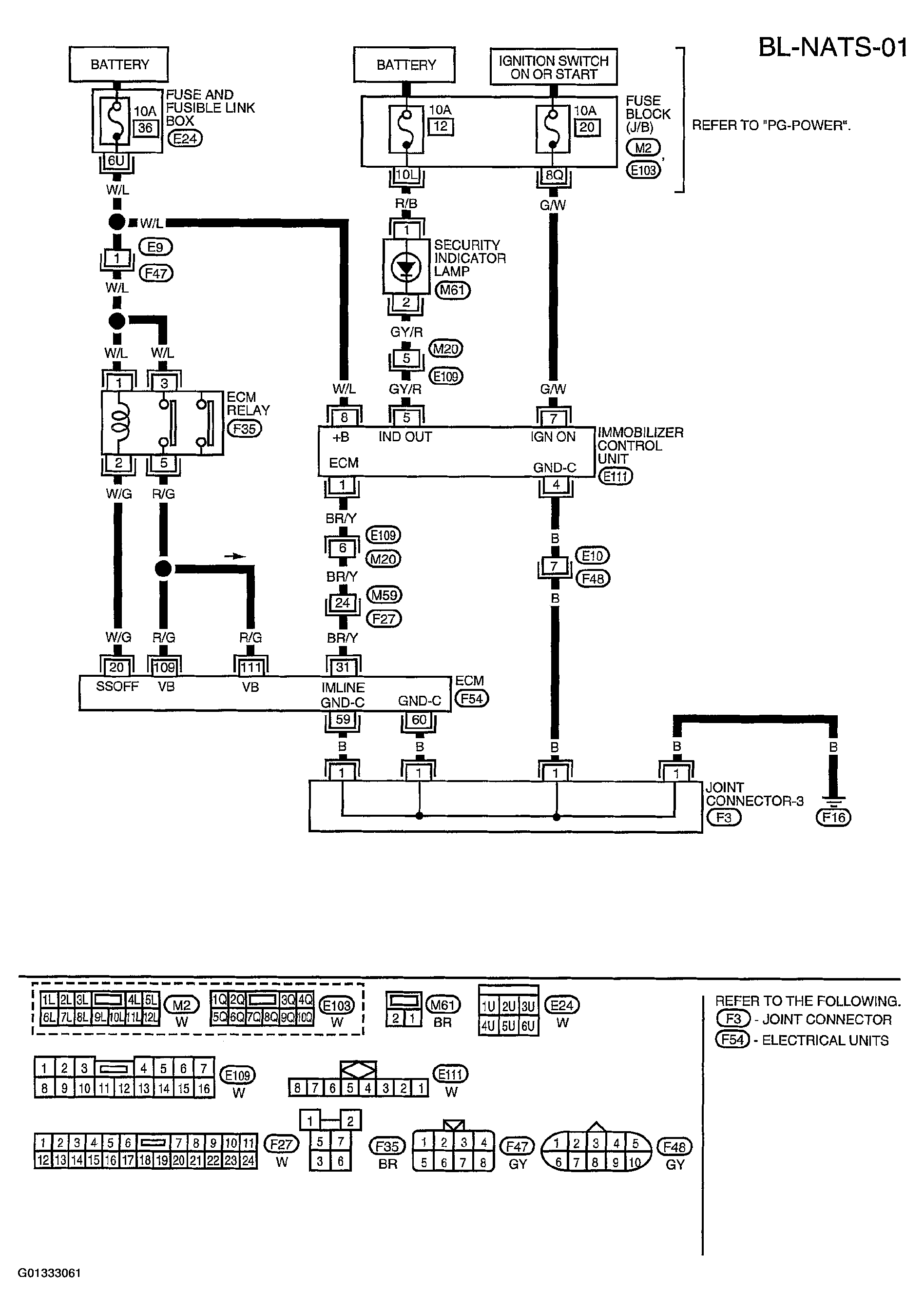

Fig 1: Nissan Vehicle Immobilizer System (NATS) Wiring Diagram And Identifying Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

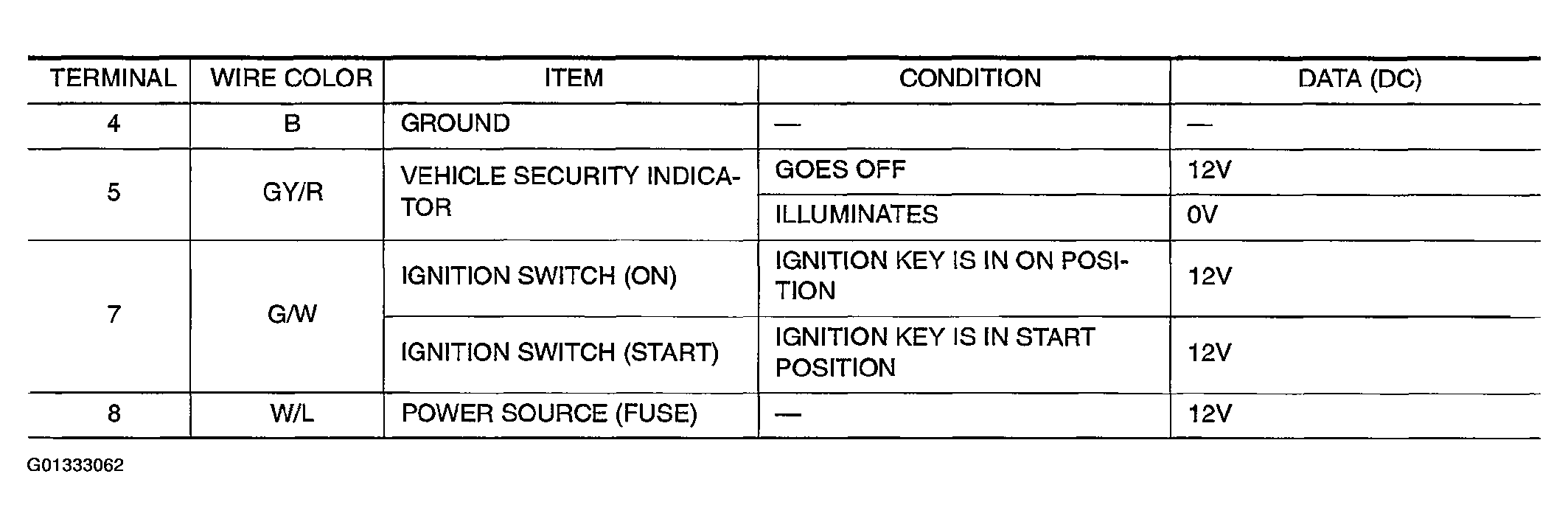

Fig 2: Immobilizer Control Unit Terminals And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
